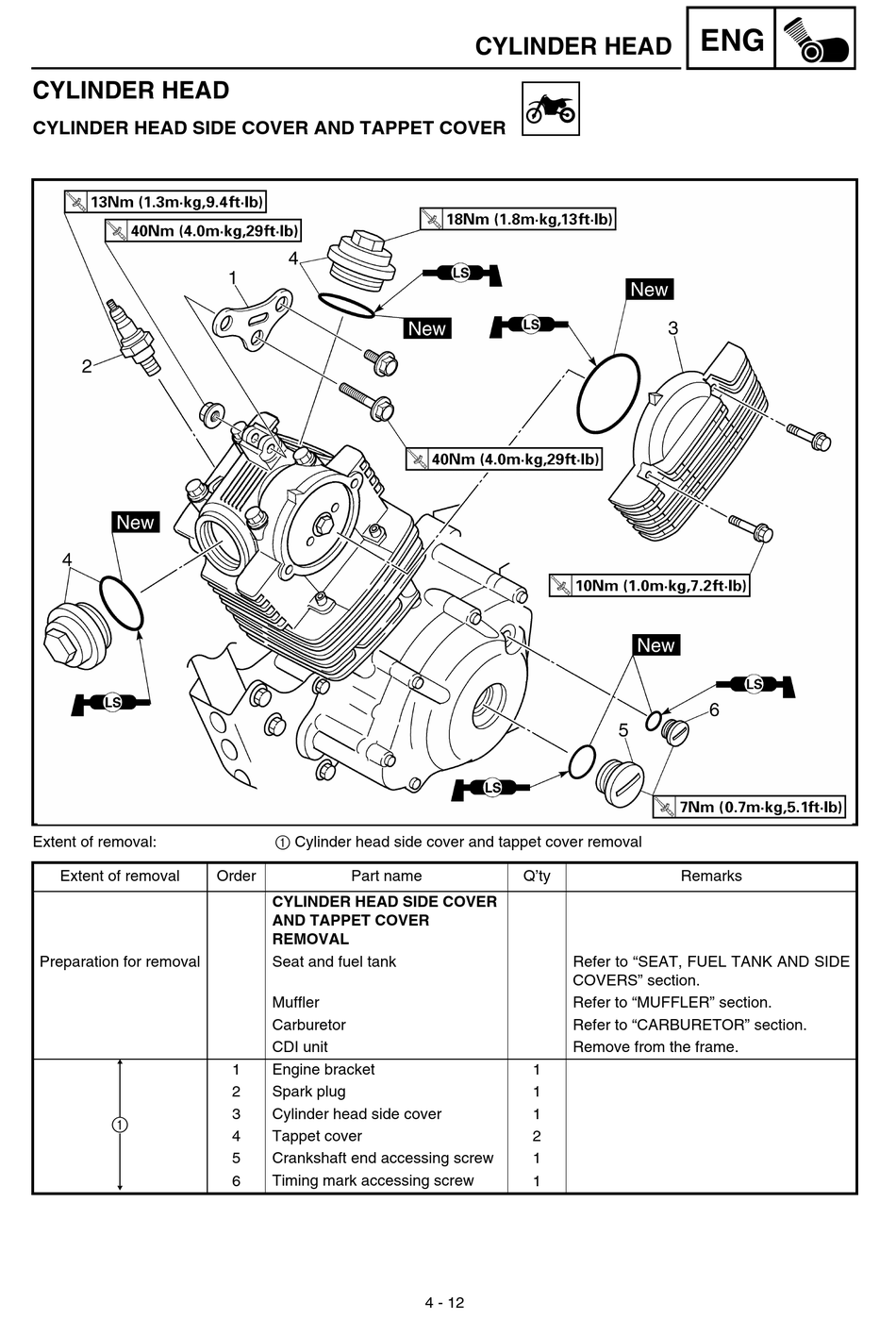

CYLINDER HEAD

CYLINDER HEAD SIDE COVER AND TAPPET COVER
Extent of removal:
Extent of removal
Preparation for removal
1
1 Cylinder head side cover and tappet cover removal
Order Part name
CYLINDER HEAD SIDE COVER
AND TAPPET COVER
REMOVAL
Seat and fuel tank
Muffler
Carburetor
CDI unit
1 Engine bracket
2 Spark plug
3 Cylinder head side cover
4 Tappet cover
5 Crankshaft end accessing screw
Timing mark accessing screw
6
CYLINDER HEAD
Q'ty
Refer to "SEAT, FUEL TANK AND SIDE
COVERS" section.
Refer to "MUFFLER" section.
Refer to "CARBURETOR" section.
Remove from the frame.
1
1
1
2
1
1
4 - 12
