Adjusting of Parameters in General

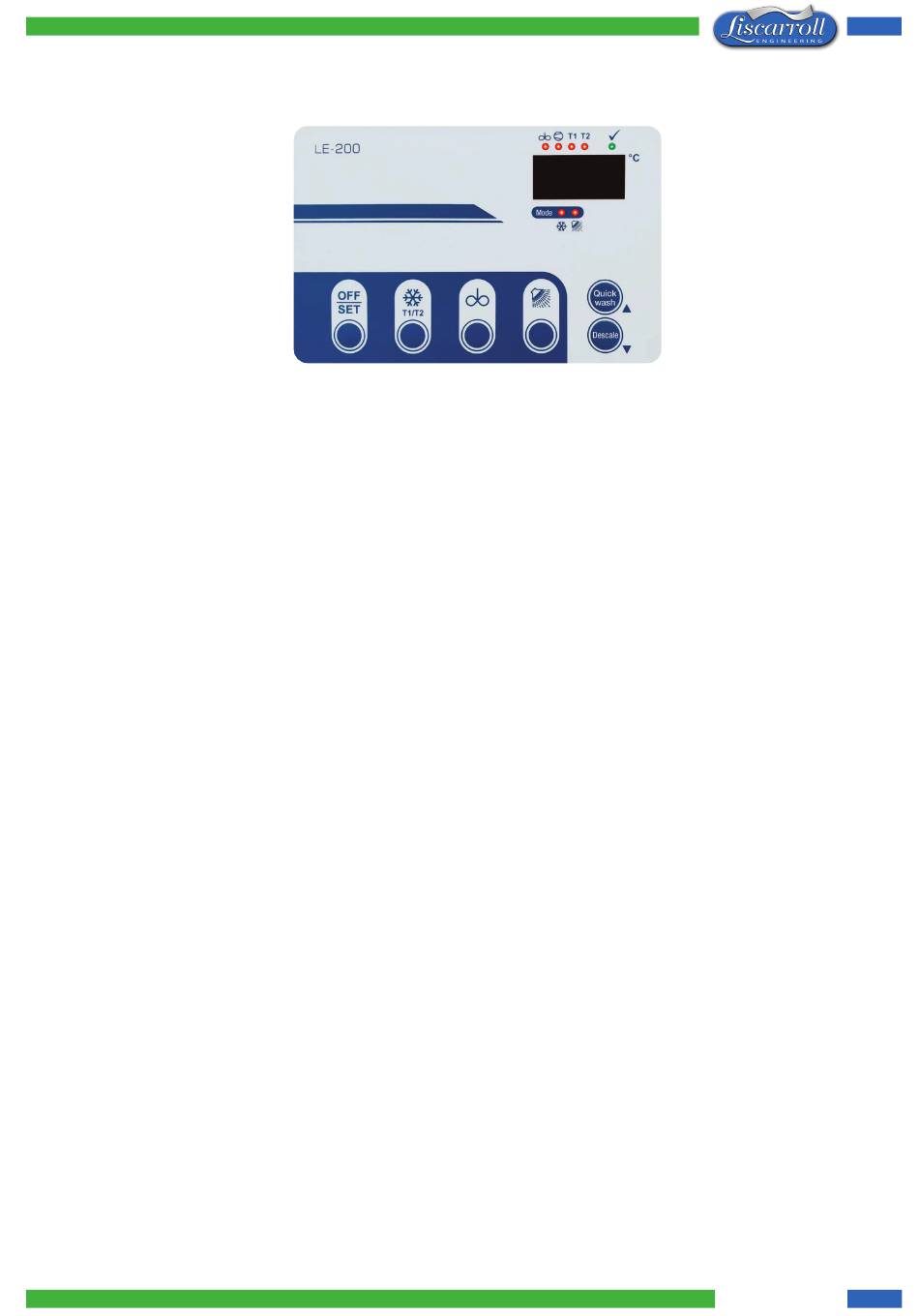

The controller has different parameter levels:
To get into the parameter levels, the OFF button must be pressed for approx. 5
seconds in OFF-mode!
The parameter levels have different codes:
Level 1: Cooling parameter 1 C parameter code: 212
Level 2: Cooling Parameter 2 P-Parameter Code: 345
Level 3: Cleaning Parameters 2 r-Parameter Code: 567
Level 4: Step times ECO main wash n-Parameter Code: 111
Level 5: Step times Descale wash d-Parameter Code: 222
Level 6: Step times Quick wash u-Parameter Code: 333
Level 7: Service parameter E-Parameter Code A03
Level 8: I / O Test Parameter o. Parameter Code: 0E5
Exit the parameter levels by simultaneously pressing the two buttons UP and
DOWN for about 3 seconds.
Proceed as follows (control unit must be in OFF mode):
• Press 'OFF' button for 3 seconds: '000' appears in the display
- the first '0' blinks.
• Use the arrows buttons to select the first digit of the required code.
• Confirm the correct digit by pressing 'SET'.
The digit is accepted and the second '0' blinks.
• Use the arrow buttons to set the second digit.
• Confirm the correct digit by pressing 'SET'. The third '0' blinks.
• Use the arrow buttons to set the third digit.
• Confirm the correct digit by pressing 'SET'.
The first parameter of the selected level now appears.
If an incorrect code is entered the control unit switches back into OFF mode.
If no buttons are pressed for 60 seconds the control automatically switches
back to the working level.
Attention: Any changes will not be accepted!
Display parameter value:
• Use the arrow buttons to select the desired parameter.
• Press the 'SET' button: the parameter value is displayed.
Change parameter value:
Saving the changed parameters and switching back to the working
(possible from any parameter)
• Press UP and DOWN buttons simultaneously for approx. 5 seconds.
The device switches to the OFF mode.
level:
