3.5.1.3 HDMI

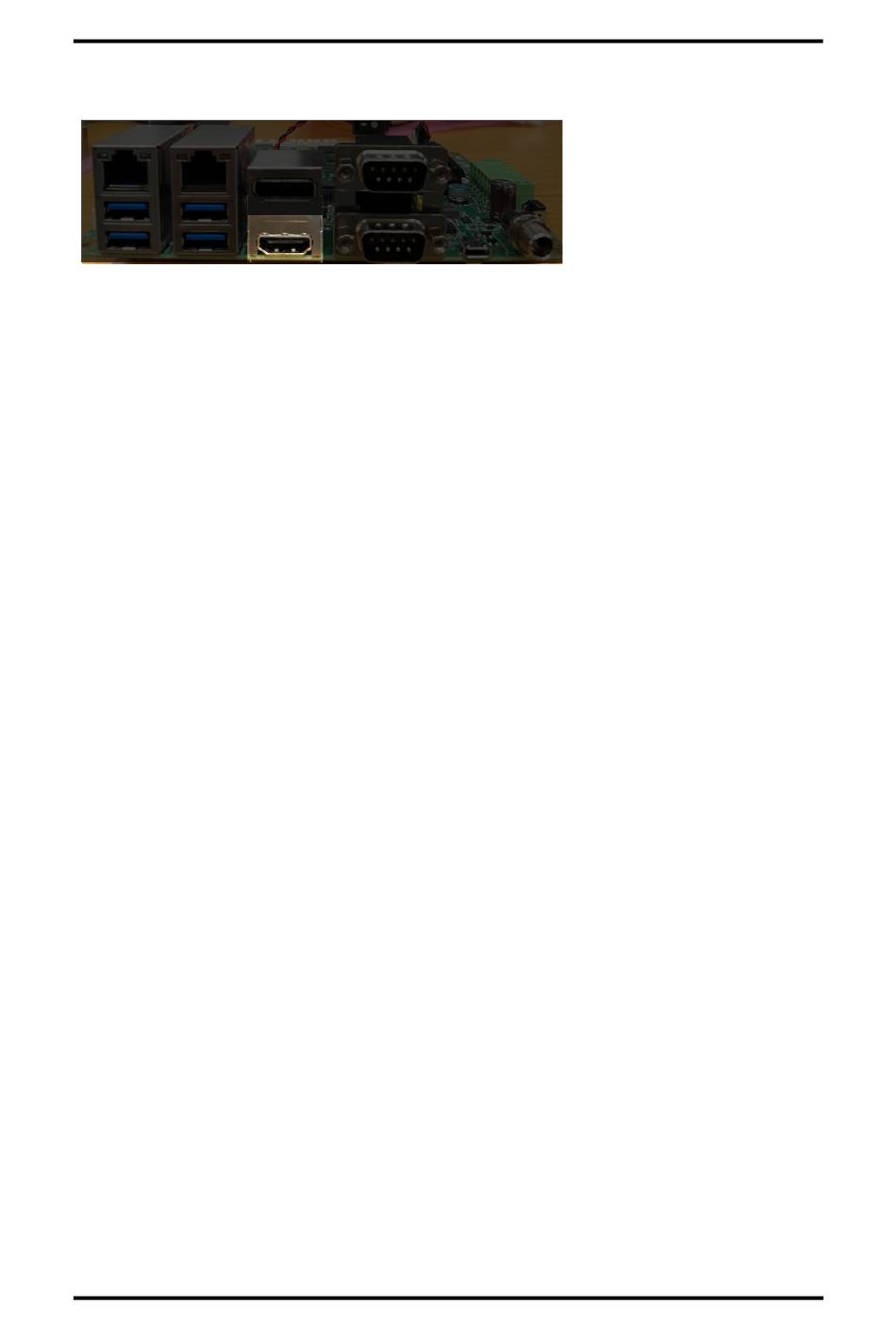

Herodotus board provides one HDMI port. This port supports up to 1920x1080@60fps.
⚫ To play a video file, please execute the below command. The test takes .mp4 with audio
track, please refer to the log for detail.
sh-5.1# gst-play-1.0 v1080@60.mp4
Press 'k' to see a list of keyboard shortcuts.
Now playing /run/media/mmcblk1p1/v1080@60.mp4
Prerolling...
====== AIUR: 4.6.1 build on May 11 2021 03:19:55. ======
Core: MPEG4PARSER_06.17.18 build on Apr 14 2021 02:39:48
file: /usr/lib/imx-mm/parser/lib_mp4_parser_arm_elinux.so.3.2
------------------------
Track 00 [video_0] Enabled
Duration: 0:05:37.704044000
Language: und
Mime:
video/x-h264, parsed=(boolean)true, alignment=(string)au, stream-
format=(string)avc, width=(int)1920, height=(int)1080,
framerate=(fraction)90000/1501,
codec_data=(buffer)0164002affe1001c6764002aacd301e0089f97016a020202
800001f48000ea60078c189c01000468eebcb0
p.s. The HDMI only supports video output, audio is supported by audio codec.
24
------------------------
------------------------
Track 01 [audio_0] Enabled
Duration: 0:05:37.757460000
Language: und
Mime:
audio/mpeg, mpegversion=(int)4, channels=(int)2, rate=(int)44100,
bitrate=(int)127999, stream-format=(string)raw,
codec_data=(buffer)12100000000000000000000000000000
------------------------
====== BEEP: 4.6.1 build on May 11 2021 03:19:55. ======
Core: AAC decoder Wrapper build on Jul 28 2020 10:45:34
file: /usr/lib/imx-mm/audio-codec/wrap/lib_aacd_wrap_arm_elinux.so.3
CODEC: BLN_MAD-MMCODECS_AACD_ARM_03.09.00_ARMV8
build on Sep 20 2017 15:02:50.
====== V4L2DEC: 1.18.0 build on Jun 3 2021 08:59:40. ======
===!!! Current pulsesink device is alsa_output.platform-sound-
wm8524.stereo-fallback !!!===
Redistribute latency...
0:00:09.8 / 0:05:37.7
