Assembly and Operating Instructions for Outback®
Photographs are not to scale.
Specifications subject to change
without prior notice.
•
For outdoor use only. Not for commercial use.
•
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
•
Warning: accessible parts may be very hot. Keep young children and pets away.
•
Do not move the appliance during use.
•
Turn off the gas supply at the gas bottle after use.
•
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
•
Retain these instructions for future reference.
WARNING
•
Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
•
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.

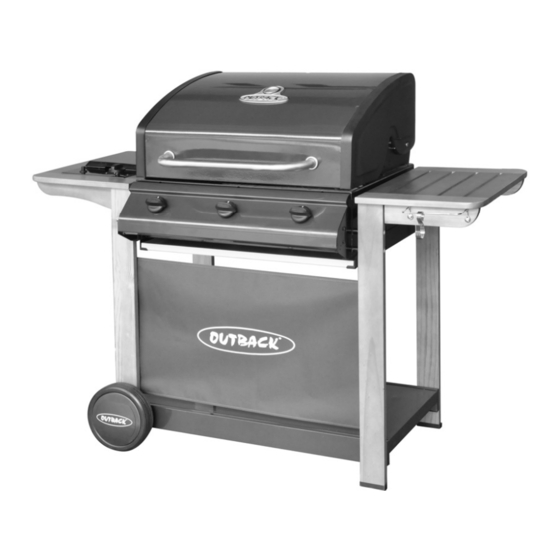

Hunter Plus 3 Gas BBQ
THG3302SB-7
1.
2.
FOR YOUR SAFETY
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Outback Hunter Plus 3
Summary of Contents for Outback Hunter Plus 3
- Page 1 Assembly and Operating Instructions for Outback® Hunter Plus 3 Gas BBQ THG3302SB-7 Photographs are not to scale. Specifications subject to change 0359 without prior notice. • For outdoor use only. Not for commercial use. • Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.
-
Page 2: Parts List
Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. CODE PART Outback® Hunter Plus 3 Gas BBQ Hood (Pre-Assembled to Body) Hood Handle HOOD Heat Indicator... -
Page 3: Parts Diagrams
Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page. - Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. D1,D2...
- Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, • adjustable spanner or metric spanner set. Remove any internal components or packaging from the barbecue body. • Whilst every care is taken in the manufacture of this product, care must be taken during assembly in •...
- Page 6 Unscrew the Locknuts (C18x2pcs) from both ends of the Axle (C12) and remove the Axle Washers (C17x2pcs). Slide the axle through the corresponding holes in the left legs. Place axle washers on each end of the axle. Slide the Wheels (C13) over each end of the axle. Secure the wheels into place with the locknuts.
- Page 7 Attach one Leg Top Support (C7) between the left legs using the 1/4-20UNCx12 Bolts (D4x3pcs). Repeat above process for the other leg top support. Install a 1/4-20UNCx22 Step Bolts (D3x2pcs) on each leg, and then attach the Side Shelf (C2) onto right legs using the 1/4-20UNCx22 Step Bolts (D3x2pcs).
- Page 8 Press the Side Burner Knob (C15) onto side burner valve stem. Attach the Side Burner Shelf (C1) onto left legs using the 1/4-20UNCx22 Bolts (D6x8pcs). Insert M6x95 Bolts (D1x8pcs) through the trolley legs, the Spacers (D2x8pcs), and keep the tip of the bolts inside the spacers.
- Page 9 Front Front view view √ × Attach Drip Tray Left Bracket (B10) to barbecue body using M5x15 Bolts (D7x2pcs), Washers (D8x2pcs) and M5 Nuts (D9x2pcs) as shown. Repeat above process for Drip Tray Right Bracket (B11). NOTE: Ensure that the big tabs of the brakets which stop the drip tray are located at the front of the barbecue.
- Page 10 Remove the plastic wrap from the Lava Rock (B3x2pcs) and then place a uniform layer into Lava Rock Basket (B4x2pcs). Lay the lava rock carefully into the body ensuring it lies level within the body. Lay the cooking grills (B1x2pcs) into place. NOTE: Ensure that the lava rock lies directly underneath the grills.
- Page 11 Place the Side Burner Grid (C16) onto Attach the screen (C8) to the front left/ the side burner shelf. right legs as shown. Connect the Hose and Regulator Assembly (B13) to the barbecue. Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing tape, paste, or liquid on the connection.
-
Page 12: Leak Testing
Leak Test Diagram 1. Maximum diameter or breadth is 315mm. 2. Maximum height (regulator included) is 700mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE. -
Page 13: Gas, Regulator And Hose
Important Information leak test. This is the only safe and sure way to detect any gas leaking from joints and connections of the barbecue after assembly. Please read these instructions carefully Leak test annually, and whenever the gas before assembly and use of your barbecue. bottle is removed or replaced. -
Page 14: Installation
Installation Preparation Before Cooking To prevent foods from sticking to the cooking surface, please use a long handled brush to Selecting a Location apply a light coat of cooking or vegetable oil This barbecue is for outdoor use only and before each barbecuing session. - Page 15 burner porthole. Roasting Hood Cooking • Barbecues equipped with a roasting hood give Push and turn the rightmost control knob the option to form an ‘oven’ for roasting or anti-clockwise to the high position, taking baking food, such as joints of meat or whole care to protect yourself from the flames.
-
Page 16: Care And Maintenance
When flare-ups do occur, they can usually be Care and Maintenance extinguished by applying baking soda or salt directly onto the lava rock. Always protect your Regularly clean your barbecue between uses and especially after extended periods of hands when handling anything near the cooking storage. - Page 17 the primary air inlet of the burners. Use a pipe Trolley cleaner to clear obstructions. Wipe with a cloth wrung out in hot soapy water and dry. When refitting the burners, be careful to check that the neck of the burner fits over the valve The wood used in the manufacture of your outlet.
-
Page 18: Technical Specifications
Butane: 28-30mbar 0.80mm Burner 359BR665 Propane: 37mbar Gas Consumption: Outback® Hunter Plus 3 Gas BBQ: 943g/hr Side Burner: 195g/hr Countries of Use: BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, 3+ (28-30/37) SK, SI... -
Page 19: Troubleshooting
Troubleshooting Problem Possible Cause Solution Burner will not light using the LP gas bottle is empty Replace with full bottle ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire... - Page 20 Other parts are warranted for a period of one (1) year from the date of purchase. ♦ OUTBACK® will, within above periods, supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
