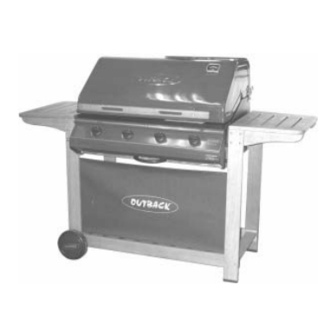

Outback® Trooper, Outback® Hunter, and Outback® Ranger Gas Barbecues
Photographs are not to scale.
Specifications subj ect to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
Gas Barbecues
Assembly and Operating Instructions for
•
For outdoor use only.
•
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
•
Warning: accessible parts may be very hot. Keep young children away.
•
Do not move the appliance during use.
•
Turn off the gas supply at the gas bottle after use.
•
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
rights.
•
Retain these instructions for future reference.
•
Leak test annually, and whenever the gas bottle is removed or replaced.
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
EN (Europe)
0359
Advertisement
Table of Contents
Related Manuals for Outback Hunter
Summary of Contents for Outback Hunter
- Page 1 Gas Barbecues Assembly and Operating Instructions for Outback® Trooper, Outback® Hunter, and Outback® Ranger Gas Barbecues EN (Europe) Photographs are not to scale. Specifications subj ect to change 0359 without prior notice. • For outdoor use only. • Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.
-
Page 2: Parts List
Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. Outback® Outback® Outback® CODE PART Trooper Hunter Ranger Hood (Pre-Ass embled to Body) Heat Shield Handle Hinge Plate Gas ket HOOD... -
Page 3: Parts Diagrams
B. Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page. - Page 4 C. Hardware Reference Diagram Specifications subject to change without prior notice.
- Page 5 D. Assembly TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/crosspoint screwdriver, adjustable spanner or metric spanner set (Photo depicts trolley from the reverse side) Attach the short (C2) and long legs (C3) to the trolley base (C5) using the trolley bolts (D7). Take care to fix the legs with Velcro attached as shown in the illustration.
- Page 6 Turn the trolley over so that it stands on its side shelves. Slide the axle (C7) through the corresponding holes in the short legs (C2). Place a washer (D11) on each end of the axle. Slide the wheels (C8) over each end of the axle.
- Page 7 Lay the assembled trolley on its side. Lay the body (B5) on its back and slide into position between the trolley legs. Warning: Care must be taken to ensure hood does not fall open unexpectedly. When positioning the body of the barbecue, ensure the control panel is on the same side as the legs with Velcro fastenings. With the barbecue laid on the ground, insert a body support bolt (D8) through the short leg, through a spacer (D9), through the sidewall of the body, and secure the bolt with a wing nut (D10).
- Page 8 Replace the drip tray (B9) by sliding it underneath the barbecue body. Attach the hood handle (A3) to the hood (A1) by inserting the handle bolts (D4) through the handle (A3), handle spacers (D3), heat shield (A2), and through the front wall of the hood (A1). Secure with washers (D2) and nuts (D1).
- Page 9 Remove the plastic wrap from the lava rock basket(s) (B3) and lay them carefully into the body ensuring that they lie level within the body. Lay the cooking grill(s) (B1) and griddle (B2) into place. 2 burner model configuration: Left half—Cooking Grill, Rock Basket; Right half—Cooking Grill, Rock basket 3 burner model configuration: Left third—Cooking Grill, Rock Basket;...
- Page 10 Leak Test Diagram ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE.
-
Page 11: Installation
YOU MUST HAVE THE PROPER REGULATOR E. Important Information AND BOTTLE IN ORDER FOR THE BARBECUE TO OPERATE SAFELY AND EFFICIENTLY. USE OF Please read these instructions carefully before AN INCORRECT OR FAULTY REGULATOR IS assembly and use. DANGEROUS WILL INVALIDATE WARRANTY. -
Page 12: Operation
connections and regulator connections. NEVER USE H4. Manual Ignition Instructions • AN OPEN FLAME to test for leaks at anytime. If Insert lit match through the leftmost match- bubbles form over any of the joints, there is a leak. lighting hole on the underside of the control panel Turn off the gas supply and retighten all joints. -
Page 13: Care And Maintenance
Outback® interfere with the rotation of the spit rod. stocki st. 4. Insert the pointed end of the spit rod into the motor. -
Page 14: Technical Specifications
Do Trooper 359AS128 not immerse the gas controls or manifold in water. Propane/ Check burner operation after carefully refitting into Outback® 0359 37mbar 11.8kW Hunter 359AS128 body. 1.04 Butane/ (#41) Propane 30mbar I6. Barbecue Hood Outback®... -
Page 15: Troubleshooting
K. Troubleshooting Problem Possible Cause Solution LP gas cylinder is empty Replace with full cylinder Burners will not light using the ignition system Faulty regulator Have regulator checked or replace Obstructions in burners Clean burners Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected on Reconnect wire...
