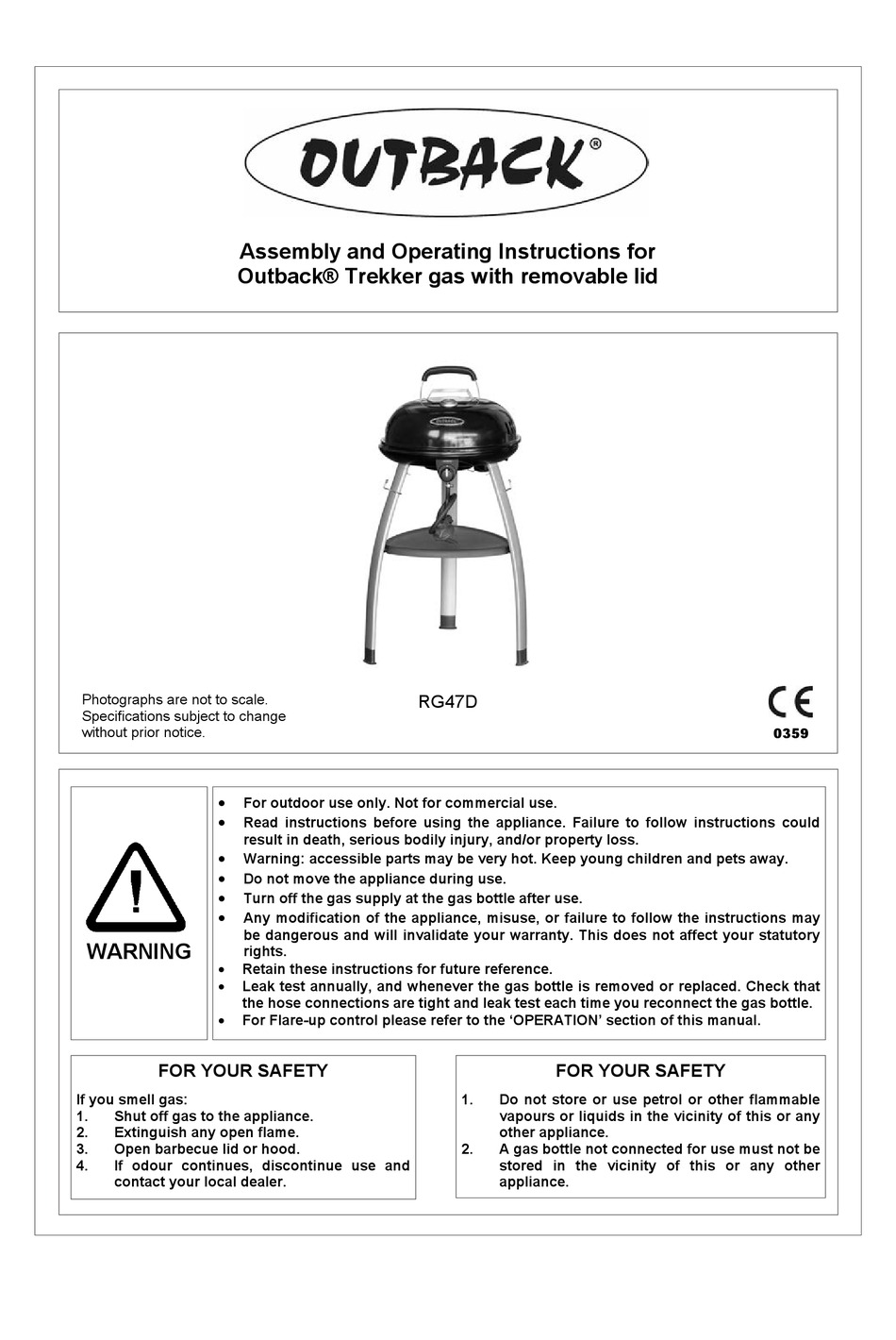

Assembly and Operating Instructions for

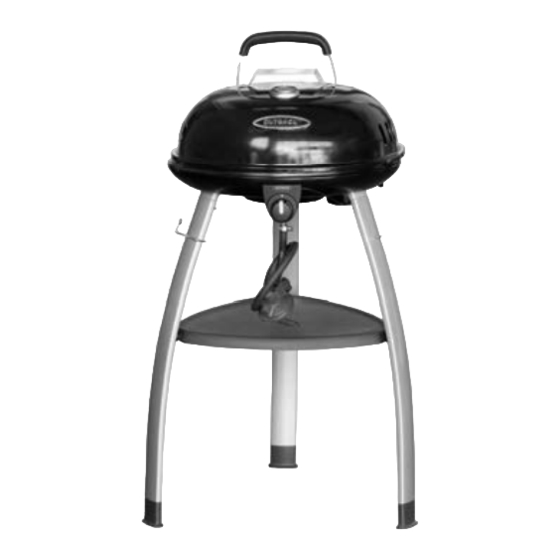

Outback® Trekker gas with removable lid
Photographs are not to scale.
Specifications subject to change
without prior notice.
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
WARNING
rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
RG47D
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
0359
Advertisement
Table of Contents
Related Manuals for Outback Trekker
Summary of Contents for Outback Trekker
- Page 1 Assembly and Operating Instructions for Outback® Trekker gas with removable lid Photographs are not to scale. RG47D Specifications subject to change 0359 without prior notice. For outdoor use only. Not for commercial use. Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.
-
Page 2: Parts List
Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Outback® CODE PART Trekker gas with removable lid Hood Hood Handle ... -
Page 3: Parts Diagram
Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. - Page 4 Hardware Reference Diagram Specifications subject to change without prior notice.
- Page 5 Assembly IMPORTANT! Remove any internal components or packaging from the barbecue body. Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp edges are present. Please read the Important Information section carefully before assembly and use of your ...
- Page 6 Insert the Grease Cup (B9) by sliding it underneath the Barbecue Body (B1). Attach the Hood Handle (A2) , Handle Shield (A3) and Hood Hook (A4) onto the Hood (A1) using Bolt (D3x2pcs) ，Asbestos Washer (D2x2pcs) , Washer (D4x2pcs) and Wing Nut (D5x2pcs) as shown.
- Page 7 Multiple Use Option One Place the Cooking grill (B7) and Flame Tamer (B6) into the barbecue body by aligning the three locating grooves with the three supporting blocks, ensuring it lies level within the body. NOTE: Please align the “Arrow” mark on the griddle or flame tamer with the supporting block on the right for easy assembly.
- Page 8 Grill Lifting Handle Usage Reference To remove and replace Cooking Griddle To remove and replace cooking grill To remove and replace flame tamer...
-
Page 9: Leak Testing
Leak Test Diagram 1. Maximum diameter or breadth is 315mm. 2. Maximum height (regulator included) is 580mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE. -
Page 10: Gas, Regulator And Hose
Important Information Before you use your barbecue, perform a leak test. This is the only safe and sure way Please read these instructions carefully to detect any gas leaking from joints and connections of the barbecue after assembly. before assembly and use of your barbecue. ... -
Page 11: Installation
Preparation Before Cooking Installation To prevent foods from sticking to the cooking surface, please use a long handled brush to Selecting a Location apply a light coat of cooking or vegetable oil This barbecue is for outdoor use only and before each barbecuing session. - Page 12 should be open during preheating. to prevent food being burned. To control flare- After completion of preheating, keep the ups, it is ABSOLUTELY ESSENTIAL to trim burner at the low position for best cooking away excess fat from meat and poultry before grilling, use cooking sauces and marinades results.
-
Page 13: Care And Maintenance
Remove any food residue from the flame tamer outside for any length of time, especially during surface with a plastic or wooden scraper or the winter months. Heavy-duty OUTBACK® brass wire brush. Do not use a steel scraper or barbecue covers and other accessories are wire brush. -
Page 14: Technical Specifications
Heat Injector Burners Gas /Pressure powders as they can permanently damage the Approval Input Size finish. Outback® Trekker 0359 Butane: 28-30mbar gas with 0.94mm Fixings 359BR665 Propane: 37mbar removable All screws and bolts, etc. should be checked and tightened on a regular basis. -
Page 15: Troubleshooting
Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire... - Page 16 Other parts are warranted for a period of one (1) year from the date of purchase. OUTBACK® will, within above periods, supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
