Manitou 150 AETJ C Instruction Sheet

This document is a simpliied reminder of how to drive a personnel lifting platform and, under no circumstances, should be used as a substitute for the
instructions manual required by CE Directive 98/37/CE Appendix 1 § 1.7.4, which the operator must have previously read and fully understood and which
must be available in the lifting platform's basket. All the safety instructions and advice described in the manual and not repeated in this document must
continue to be applied and observed. The operator must have received adequate training and must comply with the prevailing ground traic regulations.

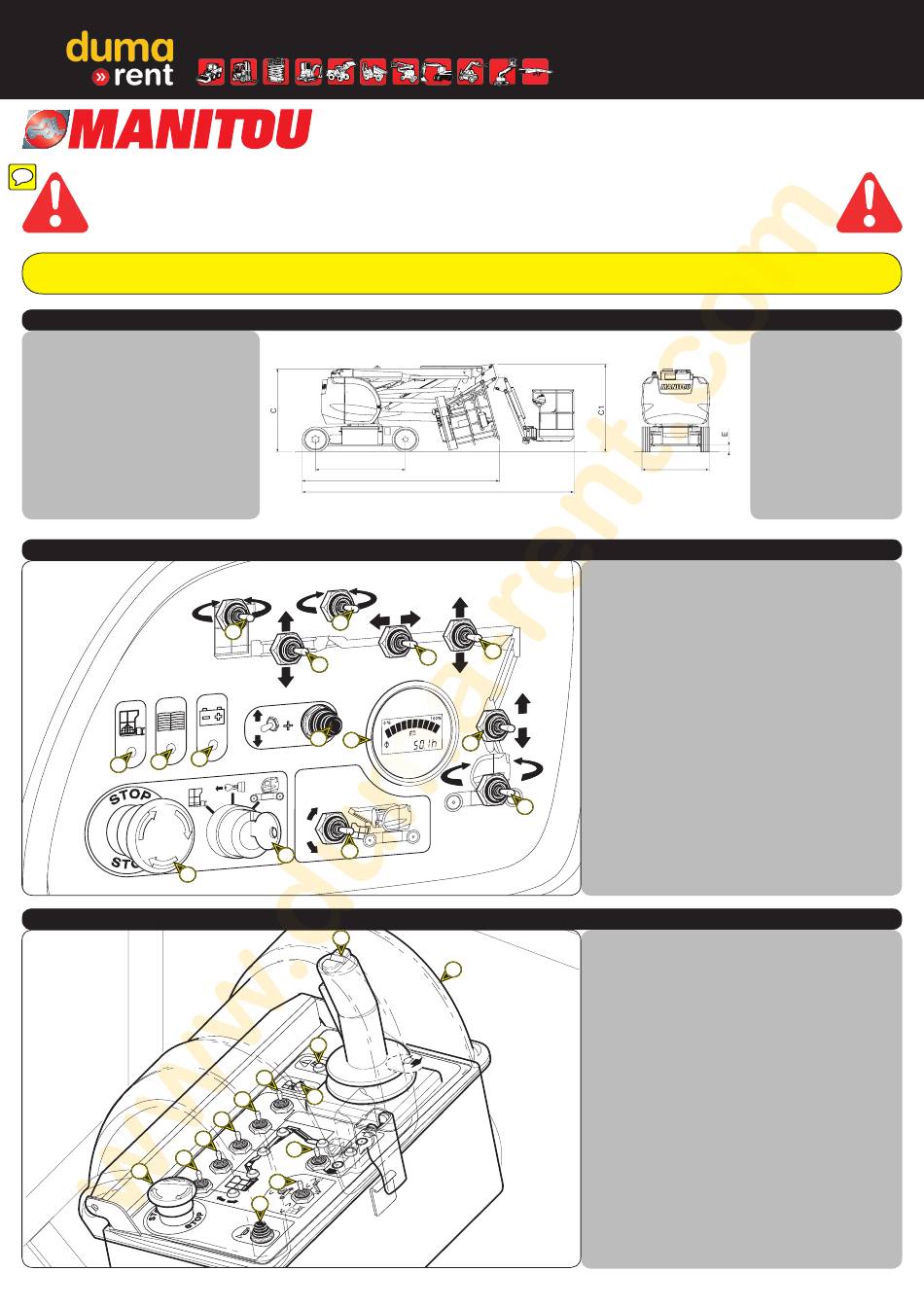

BASIC INSTRUCTIONS SHEET
WEIGHT OF THE LIFTING PLATFORM
Unladen
Under nominal load
BASKET CAPACITY
2 people, indoors
WEIGHT OF THE ONBOARD EQUIPMENT IN THE BASKET
1 person in the basket
2 people in the basket
SPEED
Work speed
Transport speed
5
4
3
1
17
16
768740EN (19/02/2008)
TECHNICAL CHARACTERISTICS
6700 kg
6900 kg
200 kg
120 kg
40 kg
B
0.6 km/h
5 km/h
GROUND CONTROL & EMERGENCY STATION
10
8
9
6
7
15
2
24
23
21
22
20
19
18
26
27
28

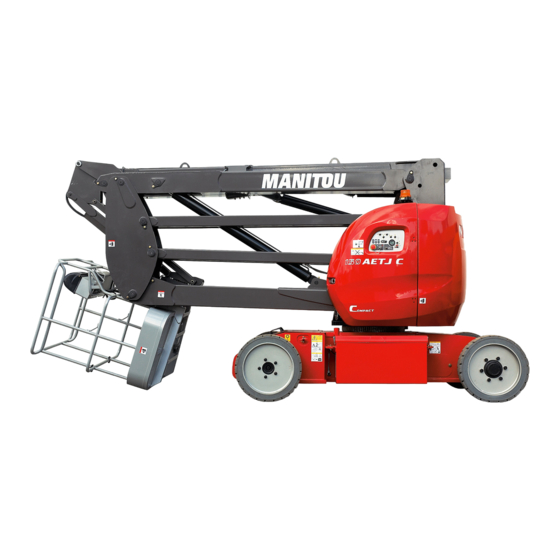

THIS PERSONNEL LIFTING PLATFORM IS DESIGNED TO MANOEUVRE IN WORKSHOPS,
INDUSTRIAL WAREHOUSES OR ON CONSTRUCTION SITES.
A1
A
12
11
13
14
BASKET CONTROL STATION
25
www.duma-rent.com
D
1 - EMERGENCy STOP
2 - KEy-OPERATED CONTROL SELECTOR SWITCH AT GROUND
LEVEL OR IN THE BASKET
3 - OVERLOAD LAMP
4 - «MACHINE MAINTENANCE» AND VARIATOR FAULTS LAMP
5 - «BATTERy CHARGE STATE» LAMP
6 - «DEAD MAN» BUTTON
7 - BATTERy CHARGE INDICATOR AND THE HOUR METER
8 - BASKET ROTATION CONTACTOR
9 - RAISE AND LOWER CONTACTOR OF THE ExTENSION ARM
10 - ROTATION CONTACTOR FOR ROTATED jIB (OPTION)
11 - TELESCOPE OUTPUTS AND INPUTS CONTACTOR
12 - RAISE AND LOWER CONTACTOR OF THE SUPERIOR ARM
13 - INFERIOR ARMS LIFTING / RAISING CONTACTOR
14 - TURRET ROTATION CONTACTOR
15 - BASKET TILT CONTACTOR
16 - EMERGENCy STOP
17 - BASKET TILT SWITCH
18 - ExTENSION ARM LIFTING / LOWERING CONTACTOR
19 - TELESCOPE OUTPUTS / INPUTS CONTACTOR
20 - SUPERIOR ARM LIFTING / RAISING CONTACTOR
21 - SUPERIOR ARMS LIFTING / RAISING CONTACTOR
22 - OVERLOAD LAMP AND VARIATOR DEFECTS
23 - TILT LAMP
24 - jOySTICK
25 - CONSOLE PROTECTIVE COVER
26 - TRANSLATION CONTACTOR
27 - BASKET TILT SWITCH
28 - BUZZER CONTROL BUTTON
150 AETJ C
DIMENSIONS
A = 6050 mm
A1 = 4400 mm
B = 2000 mm
C = 1965 mm
C1 = 2080 mm
D = 1500 mm
E = 143 mm
