NIPPON VALVE CONTROLS, INC.
Please read this document before using these valves.
GENERAL
This series is suitable for main or bypass valve in piping system.
Manual operation
Push lever
Valve
Z

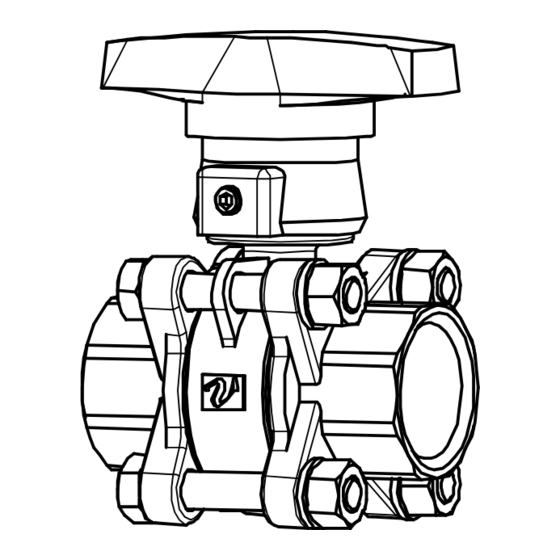

type It is small, light weight and economical butterfly valve.
This type designed for 3 piece structure
and it is easy to maintenance.
PRODUCT CODE
Z type
Threaded End Rc
Socket End
(1) Actuator
MAC
(2) Valve
Z-
(3) Operation
Y : Push lever
(4) Hyphen
(5) Connection
5 : Threaded End Rc
7 : Socket End
Instruction manual
Manual Butterfly Valve Z
M A C Z - Y -
(PVC)
M A C Z - Y -
(C-PVC)
M A C Z - Y -
(1)
(2) (3) (4) (5) (6) (7) (8)
(6) Body material
T : SCS13A
(7) Cap material
U : SCS14A
(7) Socket material
P : PVC
H : C-PVC
(8) Seat material
E : EPDM
B : NBR
V : FKM
(9) Size [mm]
ex. 25A ® 025
1/3
Threaded End Rc
5 T U
-
7 T P
-
7 T H
-
(9)
(10) Option
OSYZX23B-EN
SP-1519
Socket End
-
-
-
(10)
