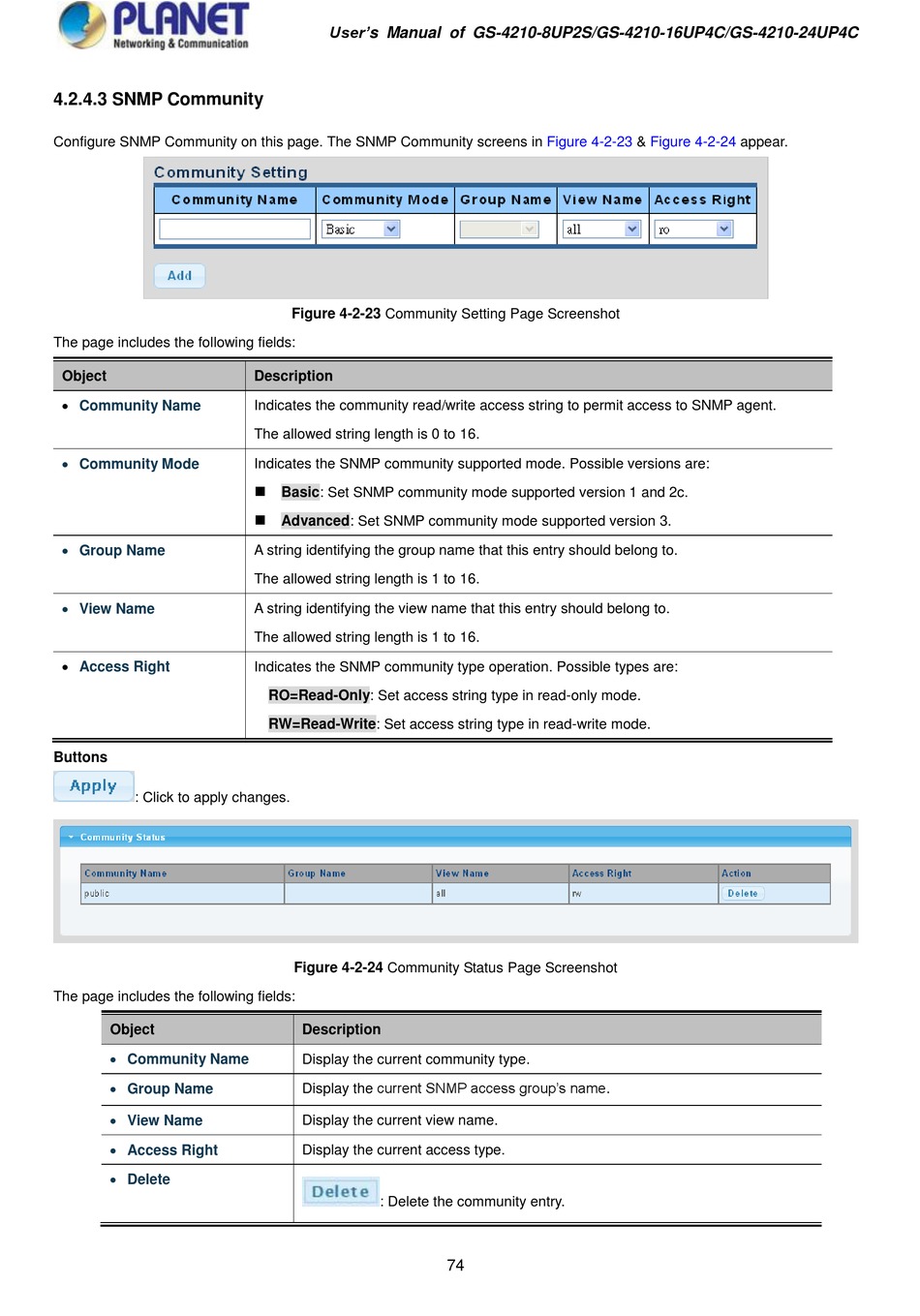

4.2.4.3 SNMP Community

Configure SNMP Community on this page. The SNMP Community screens in
The page includes the following fields:
Object

Community Name
 Community Mode
 Group Name
 View Name

Access Right
Buttons
: Click to apply changes.
The page includes the following fields:
Object
 Community Name
 Group Name
 View Name
 Access Right
 Delete
User's Manual of GS-4210-8UP2S/GS-4210-16UP4C/GS-4210-24UP4C
Figure 4-2-23 Community Setting Page Screenshot
Description
Indicates the community read/write access string to permit access to SNMP agent.
The allowed string length is 0 to 16.
Indicates the SNMP community supported mode. Possible versions are:

Basic: Set SNMP community mode supported version 1 and 2c.

Advanced: Set SNMP community mode supported version 3.
A string identifying the group name that this entry should belong to.
The allowed string length is 1 to 16.
A string identifying the view name that this entry should belong to.
The allowed string length is 1 to 16.
Indicates the SNMP community type operation. Possible types are:
RO=Read-Only: Set access string type in read-only mode.
RW=Read-Write: Set access string type in read-write mode.
Figure 4-2-24 Community Status Page Screenshot
Description
Display the current community type.
Display the current SNMP access group's name.
Display the current view name.
Display the current access type.
: Delete the community entry.
Figure 4-2-23
74
& Figure 4-2-24 appear.
