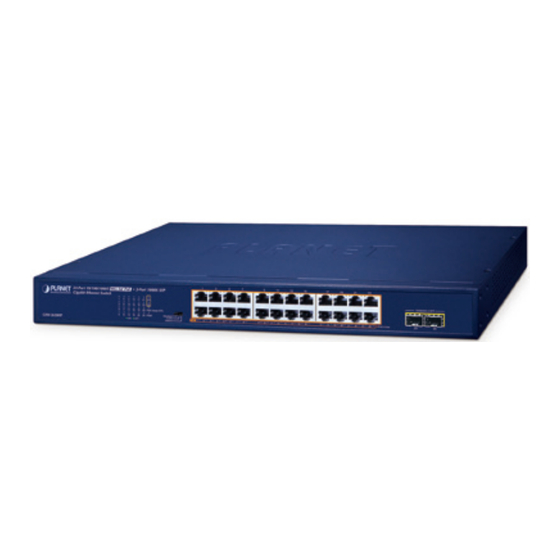

- Page 1 16-/24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch GSW-1820HP/GSW-2620HP User's Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ................. 5 2. Product Features .................. 6 3. Product Specifications ................8 4. Hardware Introduction ................ 11 4.1 Front Panel ................. 11 4.2 LED Indicators ................11 4.3 Multiple Functions of DIP Switch ........... 12 4.4 Rear Panel .................. - Page 3 PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
- Page 4 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision PLANET 16-/24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch MODELS: GSW-1820HPv3, GSW-2620HPv5 REVISION: 5.0 (DECEMBER, 2023)
-
Page 5: Package Contents
Thank you for purchasing PLANET 16-/24-Port 10/100/1000T 802.3at PoE+ Ethernet Switch, GSW-1820HP or GSW-2620HP. “802.3at PoE+ Switch” mentioned in this manual refers to the GSW-1820HP and GSW-2620HP. Open the box of the 802.3at PoE+ Switch and carefully unpack it. The box should contain the following items: The 802.3at PoE+ Switch x 1... -
Page 6: Product Features
Hardware-based DIP switch for Standard, VLAN and Extend mode selection; - VLAN mode: For GSW-1820HP: - Ports 1 to 14 will isolate respectively. - Ports 1 to 14 can only communicate with ports 15~16 (uplink ports) and SFP ports 17~18. - Page 7 For GSW-2620HP: - Ports 1 to 22 will isolate respectively. - Ports 1 to 22 can only communicate with ports 23~24 (uplink ports) and SFP ports 25~26 - Extend mode: Ports 1 to 8 have a data rate of 10Mbps; the farthest transmission distance up to 250 meters and all ports can communicate with each other.
-
Page 8: Product Specifications
3. Product Specifications Model GSW-1820HP GSW-2620HP Hardware Specifications 10/100/1000BASE-T 16 auto-MDI/MDI-X ports 24 auto-MDI/MDI-X ports Copper Ports 802.3af/802.3at PoE+ Injector Ports 1000BASE-X SFP Ports Selectable operation mode Standard DIP Switch VLAN Extend Dimensions (W x D x H) 441 x 207 x 44 mm (1U height) Enclosure... - Page 9 Switching Specifications Switch Architecture Store-and-Forward Switch Fabric 36Gbps/non-blocking 52Gbps/non-blocking Switch 26.8Mpps 38.7Mpps Throughput@64bytes MAC Address Table 8K entries Jumbo Frame 9216 bytes IEEE 802.3x pause frame for full duplex; back Flow Control pressure for half duplex Power over Ethernet PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE End-span: 1/2 (+), End-span: 1/2 (+), PoE Power Supply Type 3/6 (-)
- Page 10 Environment Temperature: 0 ~ 50 degrees C Operating Relative Humidity: 5 ~ 95% (non-condensing) Temperature: -10 ~ 70 degrees C Storage Relative Humidity: 5 ~ 95% (non-condensing)
-
Page 11: Hardware Introduction
802.3at PoE Gigabit Ethernet Switch 1000BASE-X SFP PoE Usage 80% Standard GSW-1820HP VLAN PoE-in-Use Extend Figure 4-1: GSW-1820HP Switch Front Panel + 2-Port 1000X SFP 24-Port 10/100/1000T 802.3at PoE Gigabit Ethernet Switch 1000BASE-X SFP PoE Usage 80% Standard GSW-2620HP VLAN... -
Page 12: Multiple Functions Of Dip Switch
This mode makes the 802.3at PoE+ Switch operate as a VLAN isolation switch and For GSW-1820HP: 1. Ports 1 to 14 will isolate respectively. 2. Ports 1 to 14 can only communicate with ports 15~16 Standard (uplink ports) and SFP ports 17~18. - Page 13 Please adjust the DIP switch before powering on the 802.3at PoE+ Switch. Standard Mode (default) PoE IP Camera Standard VLAN Extend GSW-2620HP Power 100 meters (328 feet) 100BASE-T UTP with PoE VLAN Isolation Mode IP Camera Ports 1 to 22 IP Camera Ports 23~24 and Ports 25~26 Access Denied...
-
Page 14: Rear Panel
100 to 240V AC, 50-60Hz, 5A. 100-240V , 5A max. 50/60Hz Figure 4-3: GSW-1820HP/GSW-2620HP Switch Rear Panel AC Power Receptacle The device is a power-required device, which means it will not work till it is powered. If your networks should be active all the... -
Page 15: Hardware Installation
5. Hardware Installation 5.1 Rack Mounting To install the 802.3at PoE+ Switch in a 19-inch standard rack, follow the instructions described below. Step 1: Place your 802.3at PoE+ Switch on a hard flat surface, with the front panel positioned towards your front side. Step 2: Attach a rack-mount bracket to each side of the 802.3at PoE+ Switch with supplied screws attached to the package. - Page 16 Step 5: After the brackets are attached to the 802.3at PoE+ Switch, use suitable screws to securely attach the brackets to the rack, as shown in Figure 5-2. Figure 5-2: Mounting the 802.3at PoE+ Switch in a Rack Step 6: Connect your 802.3at PoE+ Switch to 802.3af/802.3at complied PDs and other network devices.
-
Page 17: Installing The Sfp Transceiver
SFP Transceiver LC Fiber Cable Figure 5-3: Plug In the SFP Transceiver Approved PLANET SFP Transceivers PLANET 802.3at PoE+ Switch supports both single mode and multi-mode SFP transceivers. The website link of approved PLANET SFP transceivers is shown below: https://www.planet.com.tw/en/product/mgb-series-transceiver?c1=lan- switches&c2=switch-accessories&c3=gigabit-transceiver... -
Page 18: Customer Support
Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET support team. PLANET online FAQs: https://www.planet.com.tw/en/support/faq...
