Directed DIRECTECHS DB3 Installation Manual page 7

2013 volkswagen jetta

Hide thumbs Also See for DIRECTECHS DB3:

Table of Contents

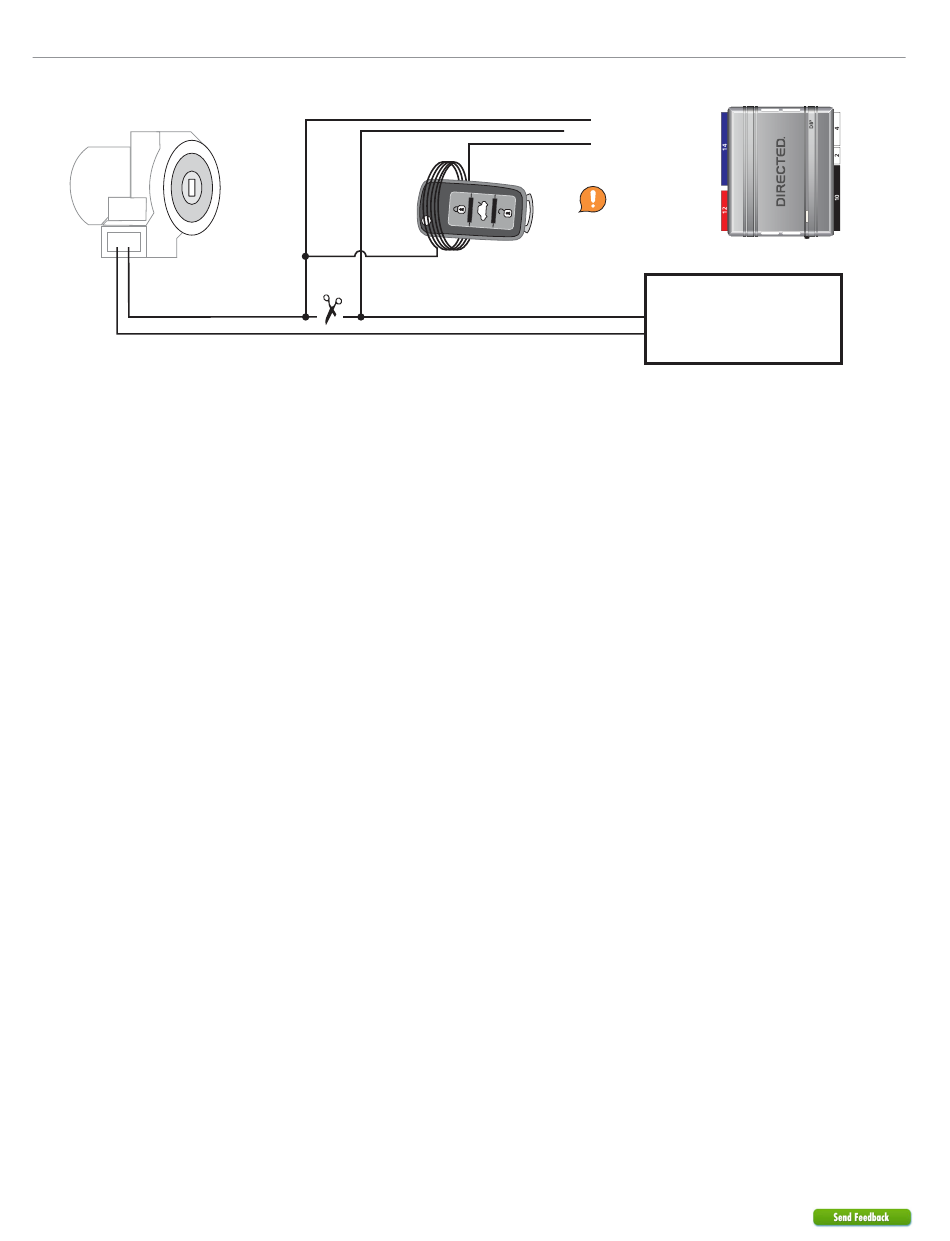

Method 3: Immobilizer interface with OEM Immobilizer Receiver

OEM

Immobilizer

Receiver

Note:

- Your OEM remote may differ from the model shown in the illustrations.

- Make 4-6 loops and place them around the front of the plastic body of the vehicle's coded key as shown above.

- Test and secure mounted loops before reassembling the vehicle.

403.VW10 2.01 2013 Volkswagen Jetta

Common Relay 2: Yellow/Red: 11

4-6 loops

Remove battery from

OEM Remote Control

NC Relay 2: Orange/Red: 10

NO Relay 2: Brown/Red: 12

Immobilizer ECU
