403.FORD1

DB3

v4.22

2005 Mercury Grand Marquis

Table of Contents

Summary of Contents for Directed DIRECTECHS DB3

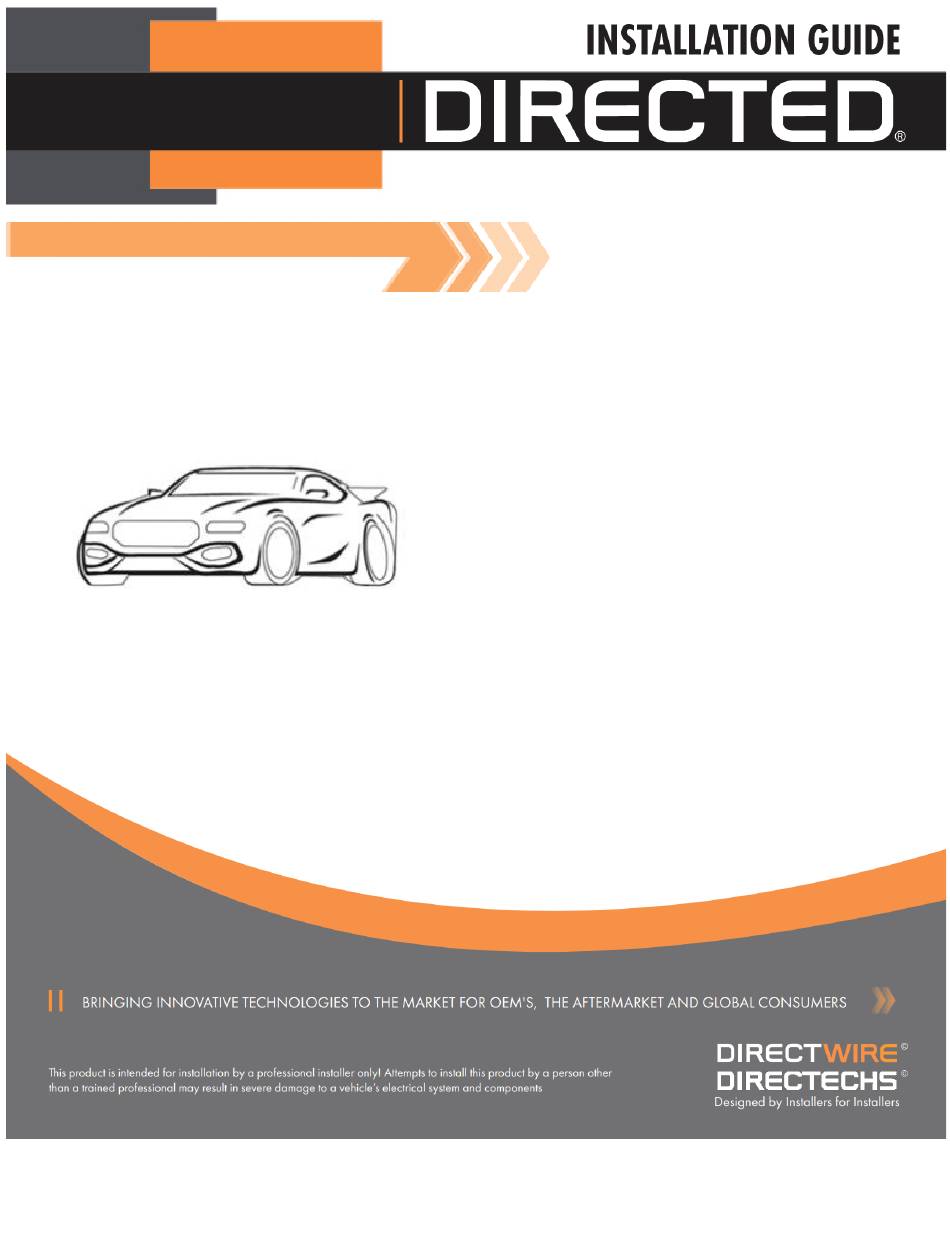

Page 1 403.FORD1 v4.22 2005 Mercury Grand Marquis...
Page 2: Table Of Contents
Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Locating components in the vehicle Vehicle connections Module programming 2-Key programming NO Key2GO 1-Key programming using Key2GO Key2GO Disarm testing Connecting the module LED diagnostics and troubleshooting Soft reset Hard reset Feature programming Feature and option list...
Page 3: Introduction
Introduction DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.FORD1 4.22 2005 Mercury Grand Marquis ©2022 VOXX•DEI LLC.
Page 4: Vehicle Function Compatibilities
Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart. Disarm Factory Security RAP Shut Down (Retained ACC Power) Ford Key2Go (40-bit keys only) Remote Start Takeover Key2GO...
Page 5: Pre-Installation And Application Warnings
Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness Keys required for Keys required for 1 or 2 compatible programming operation...
Page 6: Wiring Diagram
Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( HS CAN High: White/Lt.Green or White/Blue, pin 6 XKD2D65 OBDII Diagnostic Connector, under Driver Dash (connector side view) HS CAN Low: Pink/Lt.Green or White, pin 14 (-) Driver Door Trigger...
Page 8: Vehicle Connections
Vehicle connections The connection information listed below is specific to the 2005 Mercury Grand Marquis. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1...
Page 9 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter Must use a diode. H3/2 Blue (-) W2W Only - Unlock Input Remote Starter Must use a diode. H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter...
Page 10 Additional remote start connections (Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.) Connects To Wire Wire Location (+/-) Wire Color 12 Volts Ignition Switch, gray 10 pin plug, pin 9 Red (25A) Accessory Ignition Switch, gray 10 pin plug, pin 7...
Page 11: Module Programming
Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. 2-Key programming NO Key2GO Wait until the LED turns ON solid red. Note: To skip the transponder programming and use convenience features only, press the programming button 5 times.
Page 12: 1-Key Programming Using Key2Go
1-Key programming using Key2GO Do NOT connect other harnesses to the DB3 module. Connect the module to your computer using the XKLoader. Open an Internet Explorer browser (version 6 or higher), and go to www.directechs.com. The detail of the platform and firmware that is currently saved on the interface module will be indicated in the top left corner of the page.
Page 13: Key2Go
Any first-time user must re-register to gain access to Key2GO, and some additional information will be required to complete the registration process, such as your Directed account number and store name. Key2GO is compatible with XKLoader2 and the online web tool, as well as XKLoader3 and the Directechs Mobile application.
Page 14: Disarm Testing
Disarm testing It is important to read through all the steps before proceeding. Note: This testing is to be done if you want to use the DB3 to disarm the factory alarm on unlock and trunk release. This install type can only be done on low current ignition switch and on vehicles that do not disarm using the key to unlock the driver's door. If using a one-button system or door locks are not being connected, the disarm will automatically be done upon remote start.
Page 15: Connecting The Module
Connecting the module Important! Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior to moving onto programming. Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1.
Page 16: Led Diagnostics And Troubleshooting
LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power.
Page 17 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...
Page 18: Soft Reset
Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.
Page 19: Feature Programming
Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.
Page 20: Feature And Option List
Feature and option list It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.
Page 21: Limited One Year Consumer Warranty
Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.
Page 22: Quick Reference Guide
Factory remote. Press the Remote Start button on the transmitter.* • Aftermarket remote. • Directed SmartStart application via your smartphone. & The parking lights will flash once to indicate the Parking lights flash x1 Press Remote vehicle is now in Pit Stop Mode.
