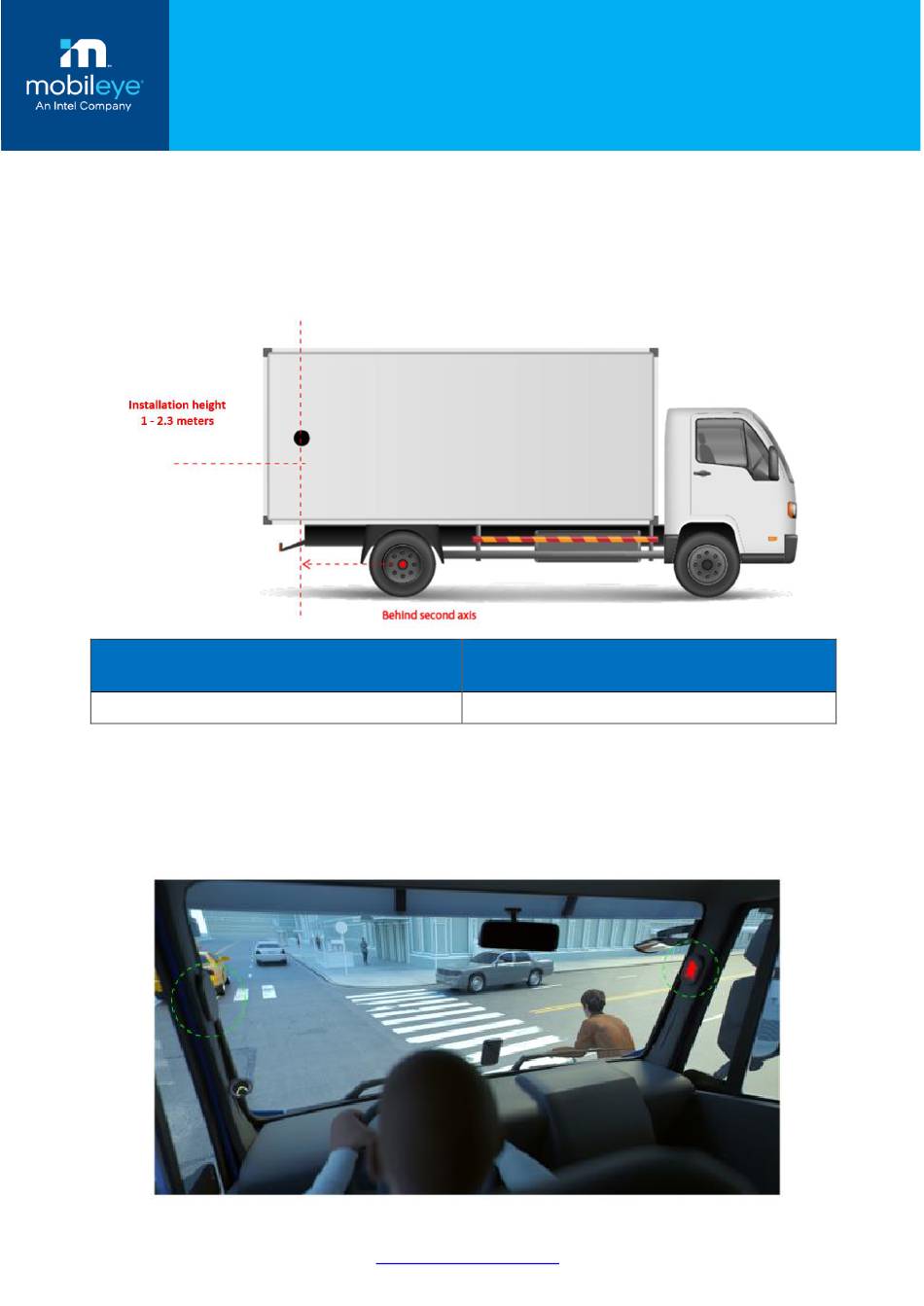

6.3 Guidelines for rear side camera installation
Mount the rear right-side camera at the back of the vehicle on an existing flat surface (non-flat
surface cannot be used for installation as the calibration process cannot compensate the
distortion and it will decrease system effectiveness) facing forward at height between 1.3-2.1m.
Allowed tolerance from back end of vehicle – up to 1 meter.
Minimum distance from side camera to the
front of the vehicle
7-20 meters
6.4 Side display installation
Mount the side display up to 20cm above the center of A/B pillar.
Note that the display unit must be installed at least 30° carried out of the vehicle`s propelled
visual axis.
Mobileye Shield+ V2.0| January 2022
Installation Manual v1.1
Mobileye Proprietary and Confidential
support@mobileye.com
MOBILEYE, AN INTEL COMPANY
WWW.MOBILEYE.COM
Side camera installation height
1 meter - 2.3 meters
