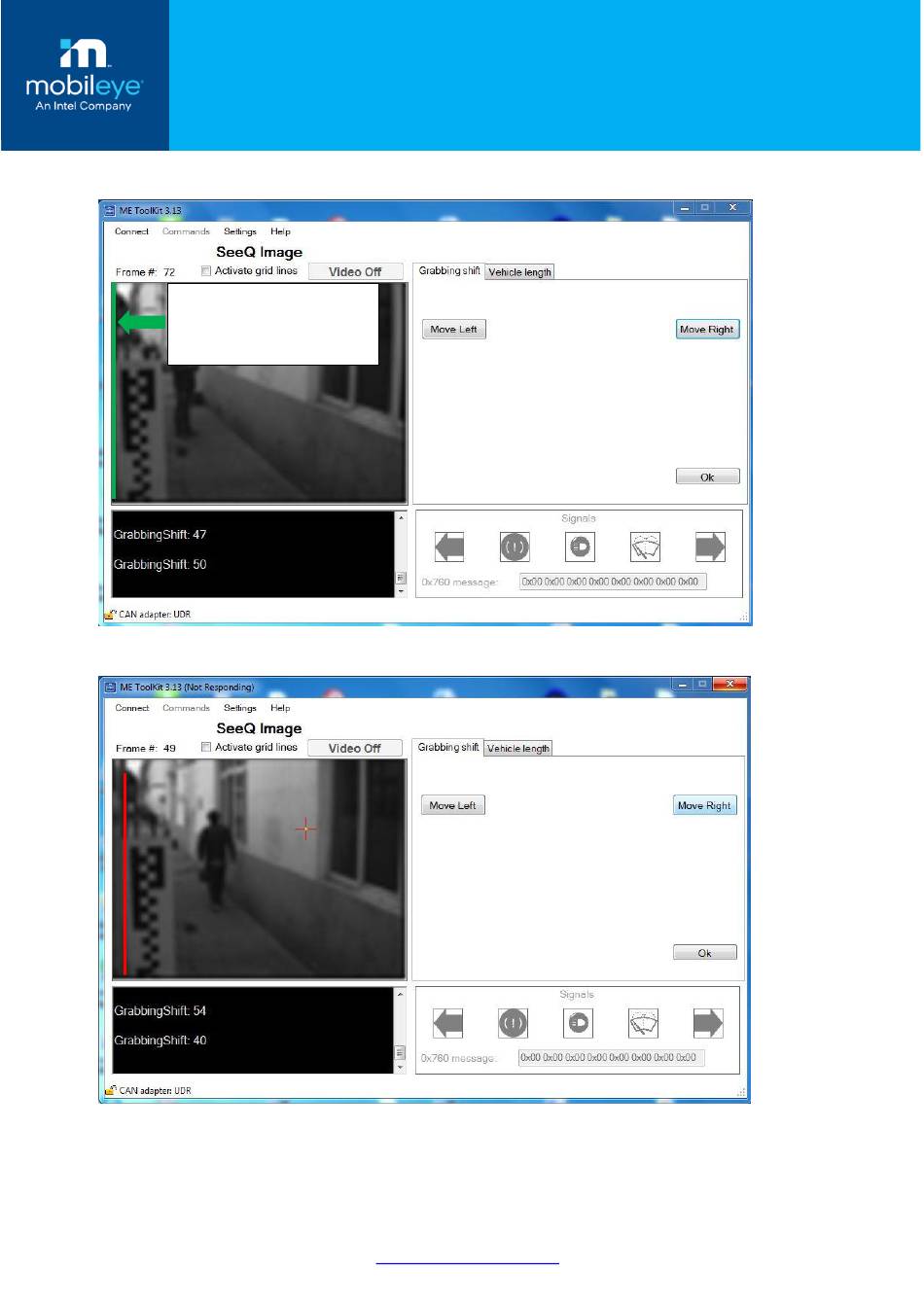

Correct camera angle line-
Left side of the vehicle
should not be detected
or appear in the image
Wrong camera angle line-
Red line is at the end of vehicle's side – too much of the vehicle is seen
Follow the steps below for each of the installed rear cameras (note that each camera can be
connected separately to the junction box when performing the calibration):
Mobileye Shield+ V2.0| January 2022
Installation Manual v1.1
