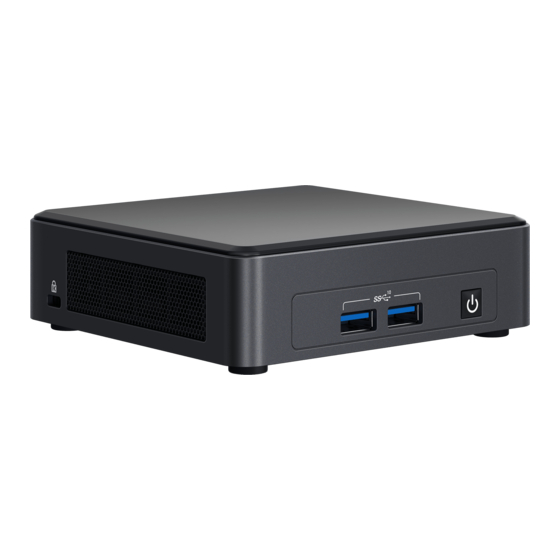

- Page 1 Intel® NUC 11 Pro Kit NUC11TNKi3 Intel® NUC 11 Pro Kit NUC11TNKi5 Intel® NUC 11 Pro Kit NUC11TNKv5 Intel® NUC 11 Pro Kit NUC11TNKi7 Intel® NUC 11 Pro Kit NUC11TNKv7 User Guide January 2021 NUC11TNK User Guide – January 2021...
- Page 2 You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.
-
Page 3: Table Of Contents
Contents Introduction ..........................5 Before You Begin ............................5 Installation Precautions ..........................5 Observe Safety and Regulatory Requirements ................. 6 Open the Chassis ........................7 Install and Remove System Memory ................. 8 Install SO-DIMMs............................8 Remove SO-DIMMs ............................9 Install an M.2 SSD .......................10 Close the Chassis .........................12 Use the VESA Bracket (Optional) ................13 Connect Power ........................15... - Page 4 Revision History Date Revision Description January 2021 Initial release. NUC11TNK User Guide – January 2021...
-
Page 5: Introduction
ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Installation Precautions When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions. NUC11TNK... -
Page 6: Observe Safety And Regulatory Requirements
To avoid injury, be careful of: • Sharp pins on connectors • Sharp pins on circuit boards • Rough edges and sharp corners on the chassis • Hot components (such as SSDs, processors, voltage regulators, and heat sinks) • Damage to wires that could cause a short circuit Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel. -
Page 7: Open The Chassis
Open the Chassis Unscrew the four corner screws on the bottom of the chassis and lift the cover. NUC11TNK User Guide – January 2021... -
Page 8: Install And Remove System Memory
Install and Remove System Memory Intel® NUC 11 Pro Kits NUC11TNK have two 260-pin DDR4 SO-DIMM memory slots Memory requirements: • 1.2V low voltage memory • 2133/2400/3200 MHz SO-DIMMs • Non-ECC Find compatible system memory modules at the Intel® Product Compatibility Tool: •... -
Page 9: Remove So-Dimms
Remove SO-DIMMs To remove a SO-DIMM, follow these steps: 1. Observe the precautions in "Before You Begin" in Section 1.1. 2. Turn off all peripheral devices connected to the computer. Turn off the computer. 3. Remove the AC power cord from the computer. 4. -
Page 10: Install An M.2 Ssd
Install an M.2 SSD Intel® NUC 11 Pro Kits NUC11TNK support 80mm and 42mm SSDs. Find compatible M.2 SSDs at the Intel® Product Compatibility Tool: • Intel® NUC 11 Pro Kit NUC11TNKi3 • Intel® NUC 11 Pro Kit NUC11TNKi5 •... - Page 11 NUC11TNK User Guide – January 2021...
-
Page 12: Close The Chassis
Close the Chassis After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws. NUC11TNK User Guide – January 2021... -
Page 13: Use The Vesa Bracket (Optional)
1. Using the four small black screws that were included in the box, attach the VESA bracket to the back of the monitor or TV. 2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC. NUC11TNK User Guide – January 2021... - Page 14 3. Slide the Intel NUC onto the VESA mount bracket. NUC11TNK User Guide – January 2021...
-
Page 15: Connect Power
Connect Power Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power adapter). Product codes Power cord type BNUC11TNKi30000 No power cord included. An AC power cord needs to be purchased separately. Power cords are available at BNUC11TNKi50000 many Internet sites for use in multiple countries. -
Page 16: Install An Operating System
Intel Product Compatibility Tool lists versions of Linux* that have been reported as compatible by Intel NUC owners. If you need assistance with Linux on your Intel NUC, check the distribution’s website and forums for peer assistance. Refer to Operating System Installation for system requirements and installation steps. -
Page 17: Install The Latest Device Drivers And Software
Here are the options for keeping device drivers current: • Allow the to detect out-of- Intel® Driver & Support Assistant (Intel® DSA) date drivers • Manually download drivers, BIOS, and software from Download Center: Intel® NUC 11 Pro Kit NUC11TNKi3 ▪...
