- Page 1 CONSTRUCTION TECHNOLOGY OPERATING MANUAL WALL SAW electric LWSE 1200 LISSMAC Maschinenbau GmbH Lanzstrasse 4 D-88410 Bad Wurzach Telefon +49 (0) 7564 / 307-0 Telefax +49 (0) 7564 / 307-500 lissmac@lissmac.com www.lissmac.com 1/50...
- Page 2 Page 2...
- Page 3 Safety DANGER Failure to comply with the safety instructions may result in serious injury or even death. X Ensure that the safety instructions have been read and understood in full. DANGER Cuts from the saw blade. X Always wear protective gloves when working on the wall saw, particularly when working on the saw blade.
-
Page 4: Wall Saw System

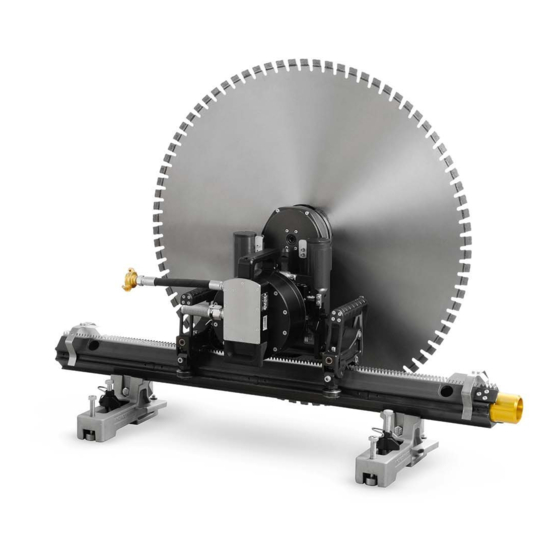

Description Wall saw system Wall saw für professional use. Not suitable for use in explosion hazard environments. Wall saw Components 1 Guide roller 10 Feed motor cable 2 Lock unit 11 Chassis 3 Water supply line 12 Carrying handle / lock unit 4 Blade guard holder 13 Identification plate - Blade drive motor 5 Geared swivel arm... -
Page 5: Assembly / Disassembly
Assembly / Disassembly Place the wall saw on the guide rail 2. If the grips fail to engage or the wall saw sits too loosely on the guide rail: adjust the guide rollers. Adjusting the guide rollers * The guide rollers are set correctly when they align in the guide groove and it is possible to turn them by hand. -
Page 6: Mounting The Drive Motor
Mounting the saw blade DANGER It can cause death or serious injury if the saw blade flies away. X Only use original screws and bolts from LISSMAC. DANGER Serious injury can be caused by sudden start-up of the saw blade. - Page 7 3.4.2 Preassemble the saw blade unit The direction of rotation of the saw blade must match the direction of rotation of the machine. Correct alignment: Countersinking of the fastening holes against the blade cover. For normal cuts up to Ø 39” ( Ø 1000 mm) (30 lbf ft) (99 Nm) For normal cuts between Ø...
- Page 8 For flush cuts (15 Nm) 3.4.3 Fastening the saw blade unit DANGER It can cause death or serious injury if the saw blade comes off. X Check whether the sleeve and central screw are countersunk. X Tighten the central screw to a torque of 44 lbf ft (60 Nm). Page 8...
-
Page 9: Mounting The Blade Guard
Removing the saw blade unit WARNING Injuries can be caused if the saw blade drops down. X Lift out the saw blade unit to the top when removing it. 2. Disassemble the saw blade unit in the reverse order to the assembly process. Mounting the blade guard X Mount the blade guard according to the instruction leaflet. - Page 10 Connecting the wall saw to the control unit 9 The control unit is isolated from the power supply. 9 Connectors/plugs are clean. 9 Cables are undamaged. Page 10...
-
Page 11: Dry Cutting
Water Wet and dry cutting The wall saw can be used for wet and dry cutting. A Wet cutting B Dry cutting Dry cutting For dry cutting, the water is led away via a bypass. When dry cutting, continuous operation is not possible, because otherwise the gearbox will overheat. -
Page 12: Maintenance And Servicing
Saw blade X Clean with water X Check for wear Service X To be performed by LISSMAC After 100 / 300 / 500 / 700 hours or an authorised workshop * Clean with damp cloth no high pressure cleaner! Page 12... -
Page 13: Lubricating The Lock Unit
Lubricating the lock unit Changing the gear oil The use of unsuitable oil can damage the wall saw. X Use only Klüber GEM 4-150 N (3.4 fl oz). Replacing the guide rollers X Defective guide rollers should be replaced. Page 13... - Page 14 Technical data Dimensions Measurements in inch Design Design Parameter Value Construction Light aluminium/steel construction Rotatable swivel arm 360° Power transmission Toothed wheel Carrying handle 2-pieces, with locking function Guide rollers Low-wearing, suitable for all VS and VAS rails Rail mounting Locking and safety function on carrying handle Main motor High-frequency, water-cooled, with quick-release device...
-
Page 15: Feed Motor, Travel
Weight Weight Parameter Value 48.5 lbs (22 kg) Wall saw head complete 33 lbs (15 kg) Drive motor Blade drive motor Blade drive motor Parameter Value Electric motor High-frequency, water-cooled Voltage 400 V Frequency 50 - 400 Hz Feed motor, travel Electric feed motor with gears and brake Parameter Value... -
Page 16: Saw Blades
Saw blades Saw blades Parameter Value Saw blade max. Ø 48” Fully detachable saw blade Ø 32” Blade holder Ø 1” or 60 mm Blade flange mounting at wall saw Quick-release flange ST Saw blade fixing on blade flange 6 countersunk head screws (also for flush cuts) reference circle 3.5 inch Blade cover mounting on blade flange... -
Page 17: Translation Of The Original Declaration Of Conformity
LISSMAC Maschinenbau GmbH, D-88410 Bad Wurzach Machine description: The wall saw LWSE 1200 is designed exclusively for professional applications of cutting concrete and masonry. It is not suitable for us in explosive atmospheres. Dry cutting requires a dust extraction system. The saw may only be used with diamond saw blades with a maximum diameter of 48”...
