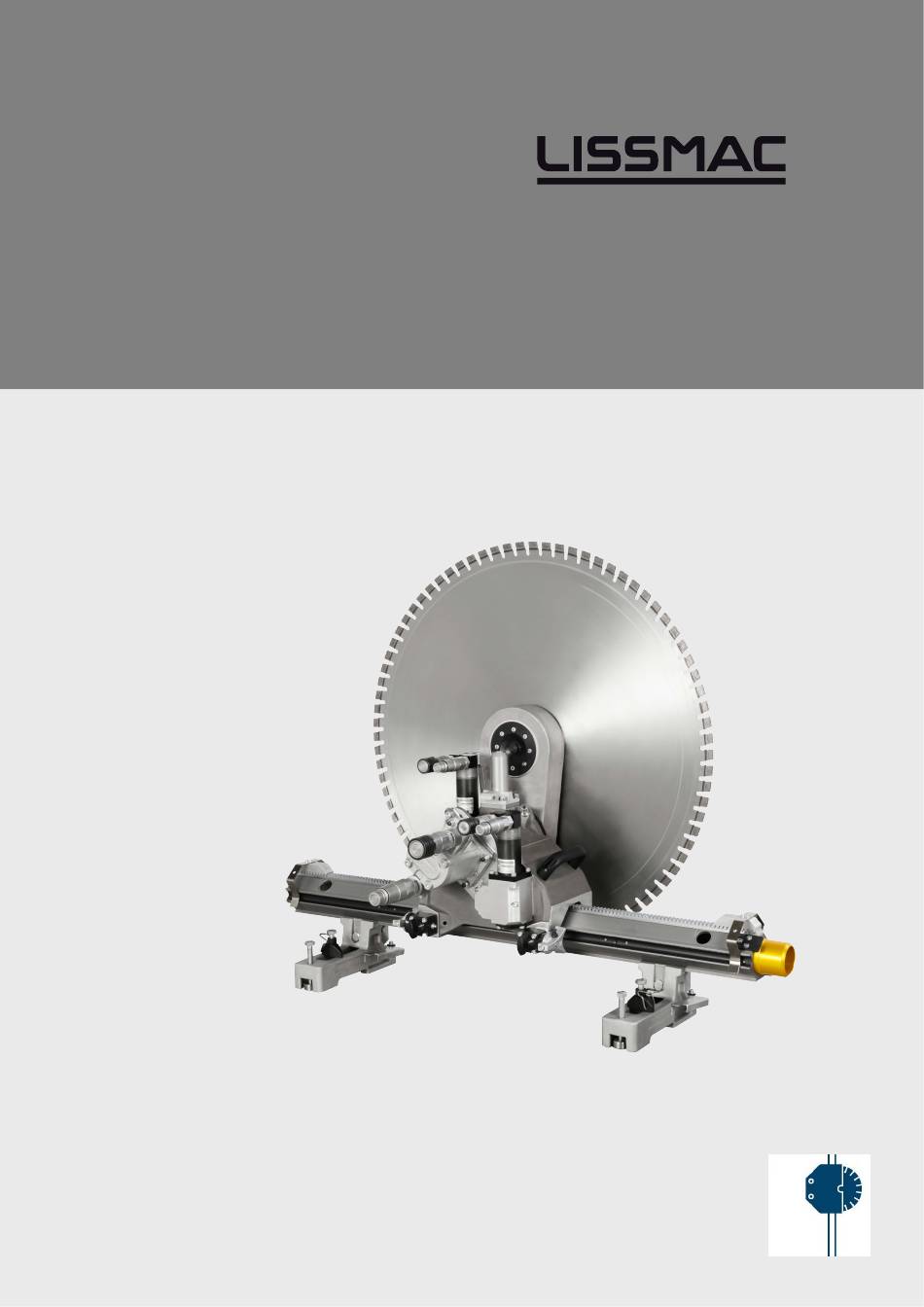

- Page 1 CONSTRUCTION TECHNOLOGY OPERATING MANUAL WALL SAW hydraulic LWSH 1201 LISSMAC Maschinenbau GmbH Lanzstrasse 4 D-88410 Bad Wurzach Telefon +49 (0) 7564 / 307-0 Telefax +49 (0) 7564 / 307-500 lissmac@lissmac.com www.lissmac.com 1/50...
- Page 2 Page 2...
- Page 3 Safety DANGER Failure to comply with the safety instructions may result in serious injury or even death. Ensure that the safety instructions have been read and understood in full. DANGER Cuts from the saw blade. Always wear protective gloves when working on the wall saw, particularly when working on the saw blade.
-
Page 4: Wall Saw System

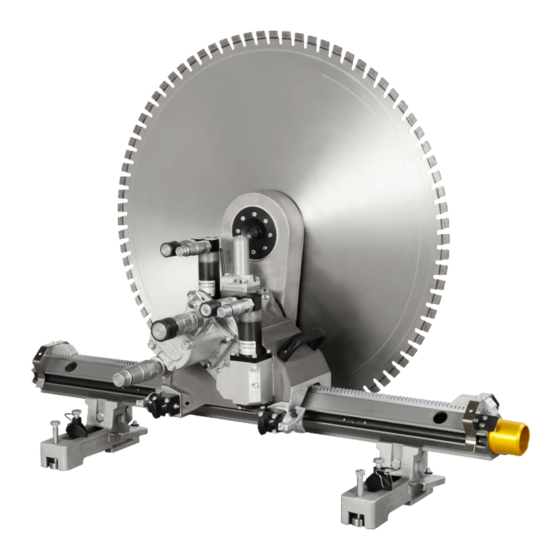

Description Wall saw system Wall saw für professional use. Not suitable for use in explosion hazard environments. Wall saw Index Index Masch.- Nr. Masch.- Nr. Baujahr Baujahr Gewicht. Gewicht. Components 1 Feed motor, swivel Blade drive motor 2 Blade guard holder Saw blade holder 3 Water connection Name plate... - Page 5 Assembly / disassembly Place the wall saw on the guide rail Page 5...
- Page 6 Adjustment of the closure click click click click A: Rotate as far as the stop. B: Rotate back two notch positions. Release the closure Perform the remaining assembly steps in reverse order. Page 6...
-
Page 7: Mount The Drive Motor
Mount the drive motor Mount the saw blade DANGER It can cause death or serious injury if the saw blade flies away. Only use original screws and bolts. DANGER Serious injury can be caused by sudden start-up of the saw blade. Switch off the drive unit before working on the saw blade. - Page 8 For flush cuts Mount the blade guard Page 8...
- Page 9 Connecting the wall saw to the drive unit The drive unit is isolated from the power supply. Couplings are clean. Hoses are undamaged. Page 9...
-
Page 10: Servicing And Maintenance
Blow out water Saw blade Clean with water Check for wear Service To be performed by LISSMAC or an After 100 / 300 / 500 / 700 hours authorised workshop Lubricate lock unit 1 Grease nipple... - Page 11 Technical data Dimensions 360° 360° 140 (155)* 140 (155)* 240 (255)* 240 (255)* Dimensions (* with flush cutting flange) Design Design Parameter Value Construction Cast aluminium / steel Rotatable swivel arm 360° Power transmission toothed belt Blade drive transmission Lock unit Low-wearing, suitable for all VS and VAS rails Rail mounting Locking and securing function at the prism guide...
- Page 12 Weight Weight Parameter Value Wall saw head, incl. feed motors without blade drive motor 27 kg Blade drive motor, size 2 5.5 kg Blade drive motor Blade drive motor Parameter Value Hydraulic motors 1100 to 3333 rpm. Size Absorption volume 12 to 30 cm Transmission ratio Operating pressure...
-
Page 13: Feed Motor, Travel
Feed motor, travel Feed motor, travel Parameter Value Hydraulic motors 187 rpm Type Gerotor Operating pressure max. 120 bar Output torque 50 Nm Feed force 6,000 N Feed Toothed wheel on rail Feed motor, swivel Feed motor, swivel Parameter Value Hydraulic motors 187 rpm Type... - Page 14 Lubricating grease (lock unit) Penetration 265 to 295 NLGI Connectable drive units The wall saw must only be operated with the coordinated drive units from LISSMAC. Drive unit power requirements: Parameter Value Minimum output: 12 kW (max. operating pressure 260 bar) Maximum performance 20 kW (max.
-
Page 15: Translation Of The Original Declaration Of Conformity
D-88410 Bad Wurzach Machine description: The wall saw LWSH 1201 is designed exclusively for professional applications of cutting concrete and masonry. It is not suitable for us in explosive atmospheres. Dry cutting requires a dust extraction system. The saw may only be used with diamond saw blades with a maximum diameter of 48”...
