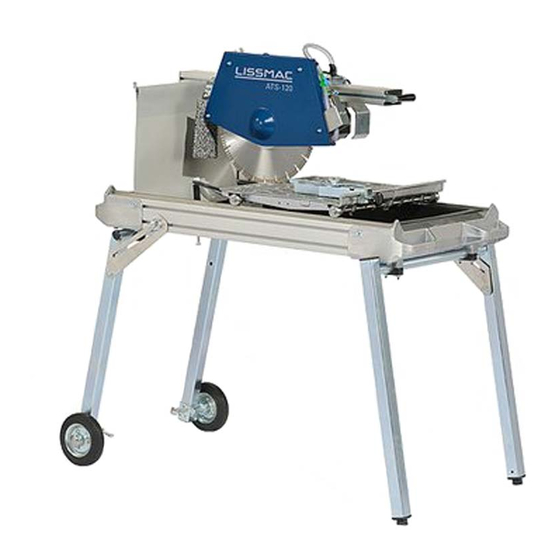

Lissmac ATS 120T/600 Operation Manual

Aluminium table cut-off saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

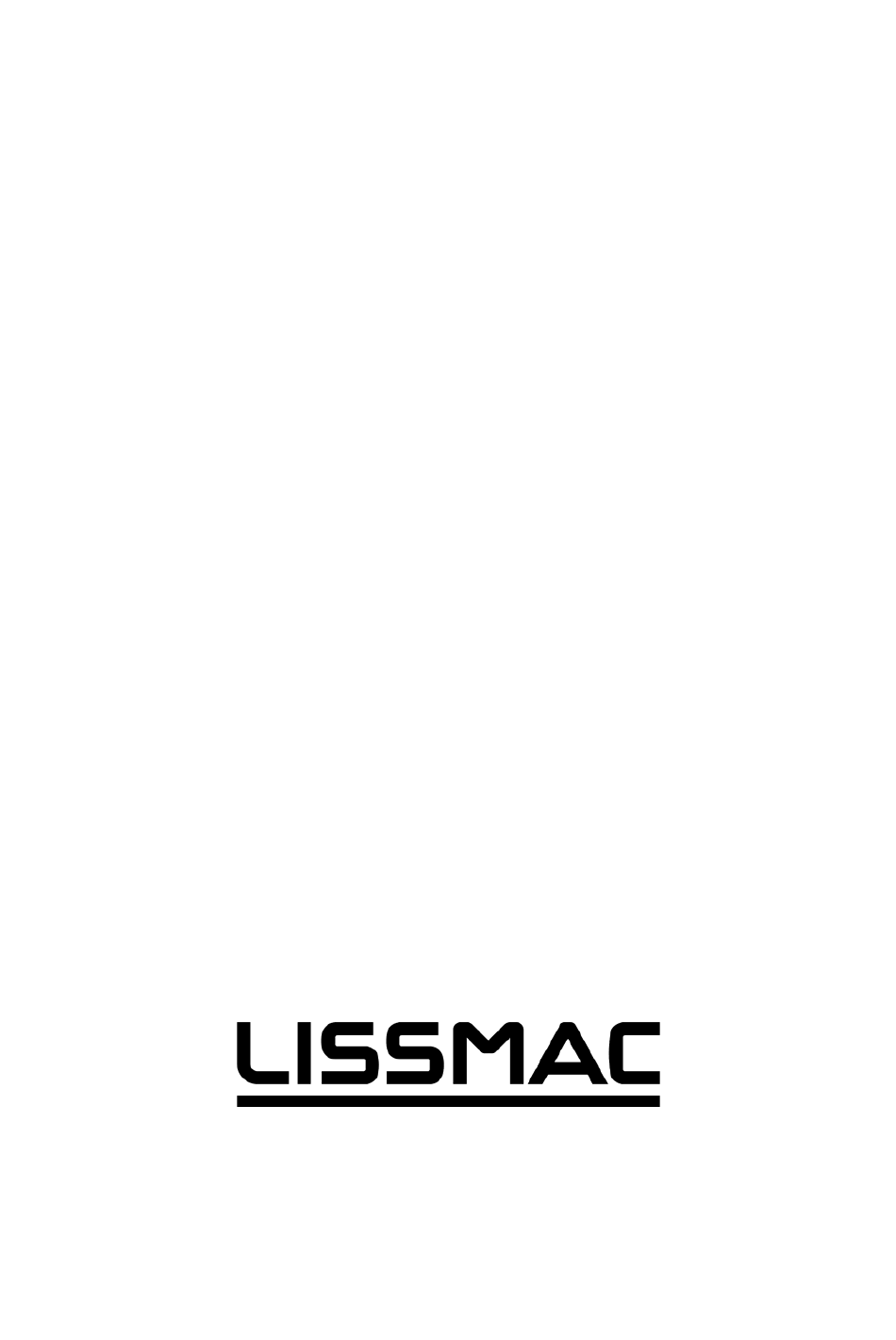

Operation Manual
Aluminium table cut-off saw
Telefon +49 (0) 75 64/3 07-0 - Fax + 49 (0) 75 64/3 07-5 00
State: 2010/01
Translation of the original operating manual
ATS 120T/600
ATS 120T/800
ATS 150T/800
ATS 120-G600
Maschinenbau GmbH
Lanzstraße 4 - D-88410 Bad Wurzach
lissmac@lissmac.com - www.lissmac.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATS 120T/600 and is the answer not in the manual?

Questions and answers

Related Manuals for Lissmac ATS 120T/600

Summary of Contents for Lissmac ATS 120T/600

  • Page 1 Operation Manual Aluminium table cut-off saw ATS 120T/600 ATS 120T/800 ATS 150T/800 ATS 120-G600 Maschinenbau GmbH Lanzstraße 4 - D-88410 Bad Wurzach Telefon +49 (0) 75 64/3 07-0 - Fax + 49 (0) 75 64/3 07-5 00 lissmac@lissmac.com - www.lissmac.com...

  • Page 3: Table Of Contents

    Preface This operation manual has been established to make it easier to become familiar with the machine and to utilise its intended application options. This operation manual contains important information on how to operate the machine in a safe, appropriate and economic manner.

  • Page 4: Basic Safety Information

    - Do not use any damaged saw blades - Depending on the material to be cut, you can use a variety of saw blades of varying quality. You can obtain a sales list of saw blades from the Lissmac sales office.
  • Page 5 1.2 Principle of intended use Danger! 1.2.1 The aluminium table cut-off saw is exclusively designed for the wet cutting of building bricks of mineral material. Cutting of wood, plastic, metal or other materials is prohibited! The sawing table must be removed during the transport or mounting/ disassembly of the saw.
  • Page 6 Danger! 1.3.8 In case of safety relevant modifications detected on the machine or if a changed operational behaviour is detected, please immediately notify the person / authority responsible thereof. Danger! 1.3.9 Do not perform any modifications of or make extensions to the machine whatsoever without the supplier's previous consent! Danger! 1.3.10 Only use original spare parts from the producer!
  • Page 7 1.5 Safety information on particular stages of operation 1.5.1 Normal operation 1.5.1.1. Refrain from performing any operations critical in regard to safety! Danger! 1.5.1.2 Take precautions that the machine will only be operated in safe and operative condition! 1.5.13 Check the machine for damages and defects visible from outside at least once per shift! Immediately inform the person / authority responsible of any changes or modifications that have been detected (including operative behaviour)! The case given, immediately stop, lock and secure the machine!
  • Page 8 1.5.1 Special works to be performed with the machine under normal operation, service routines and trouble-shooting during operation; elimination Caution! 1.5.2.1 Thoroughly observe adjustment, maintenance and inspection routines at the terms scheduled including information regarding exchange of parts / equipment parts! These works may be performed by specialist experts only.

  • Page 9: Description Of Machine

    1.7 Transport Danger! 1.7.1 Machine must not be dislocated by means of a building crane. Danger! 1.7.2 Use an appropriate transport vehicle with sufficient carrying force only. Danger! 1.7.3 Reliably secure and protect the load on the vehicle. Use the appropriate stop points provided for this purpose.
  • Page 11 2.3 Technical data ATS 120T/600 ATS120T/800 ATS 150T/800 ATS 120-G600 Weight compl. 73 kg 75 kg 84 kg 80,5 kg Frame 34,5 kg 36 kg 37 kg Head with blade 26,5 kg 26,5 kg 34,5 kg Table 7,5 kg 7,5 kg...

  • Page 12: Mounting And First Operation Preparations

    3. Mounting and first operation preparations 3.1 Mounting tools  Fork wrench size 30 (for sawing blade exchange)  Fork wrench size 10 (for sawing blade exchange) 3.2 Mounting and assembly • Danger! Mounting may only be effected by two persons. ...
  • Page 14 3.3 Fitting of the saw blade (or control of fitting) Note! The stop plate of the saw head height adjustment (Pos.7) is prepared for a saw blade with 350 mm diameter. When using a 380 mm diamond blade these stop plate must be adjusted, otherwise the sawing table will be damaged (unique to ATS 120).
  • Page 15 Checking sense of rotation of saw blade (with 400 V motors only)  Shortly turn on mains switch (Pos. 12).  Check sense of rotation of the saw blade. * Sense of rotation seen from left side in clockwise direction (indication arrow on the saw hood).

  • Page 16: Transport

    4. Transport 4.1 Transport preparations  Disconnect saw from the supply cable.  Remove water from the tub.  Height adjustment (Pos. 7) is fixed. Danger!  Take the saw table off.  Dislocation via building crane prohibited! Danger! 4.2 Two persons needed for carrying the saw. ...

  • Page 17: Operation

    5. Operation 5.1 Placing of the saw  Place the saw on clean, stable ground.  Check if the saw is standing stable.  At the working place should be sufficient light. 5.2 Preparing cut-off operation (see 3.4) 5.3 Check sense of rotation of saw blade (with 400 V motor only) 5.4 Change of sense of rotation (see 3.6) (see 3.5) 5.5 Cutting (see 3.7)

  • Page 19: Maintenance

    6. Disassembly  Turn off mains switch (Pos. 12).  Remove connection cable.  If there's danger of frost take the water pump out of the water and let the water drain off. CAUTION! Pumps that are already frozen must be thawed out before starting them. ...

  • Page 20: Accessory

    9.1.1. Basic safety instructions 9.1.1.1. Intended use This laser model is exclusively intended for use as a peripheral for the Lissmac ATS saw line. The laser beam is used to show the cutting line on the workpiece. The manufacturer/supplier assumes no liability for damages caused by failure to comply with the intended use.
  • Page 21 9.1.3. Technical data Laser class Diode power 5 mW Power consumption 45 mA Voltage 9.2.4. Mounting and initial preparation for operation - Disconnect the saw from power - Mount the laser on the saw hub (screw fastener, item B) - An electrician must connect the connector cable (item A) according to the circuit diagram - Turn on the saw (see 3.7) - Set the laser beam to the middle of the cut (item D) ...

  • Page 22: Guarantee

    10. Guarantee The guarantee time is 12 months. The following wearing parts you will get only in guarantee, when the wearing is not due to working conditions. Wearing parts are parts, which will be worn out in working conditions due to intended use of a machine.
  • Page 23 LISSMAC Maschinenbau GmbH EC Declaration of conformity for Aluminium table cut-off saw ATS 120T/600, ATS 120T/800 ATS 120G/600, ATS 120G/800 ATS 150T/800   Producer: LISSMAC Maschinenbau GmbH Lanzstr. 4 D-88410 Bad Wurzach  Storage of the technical documents by:...
