INSTALLATION

Installation

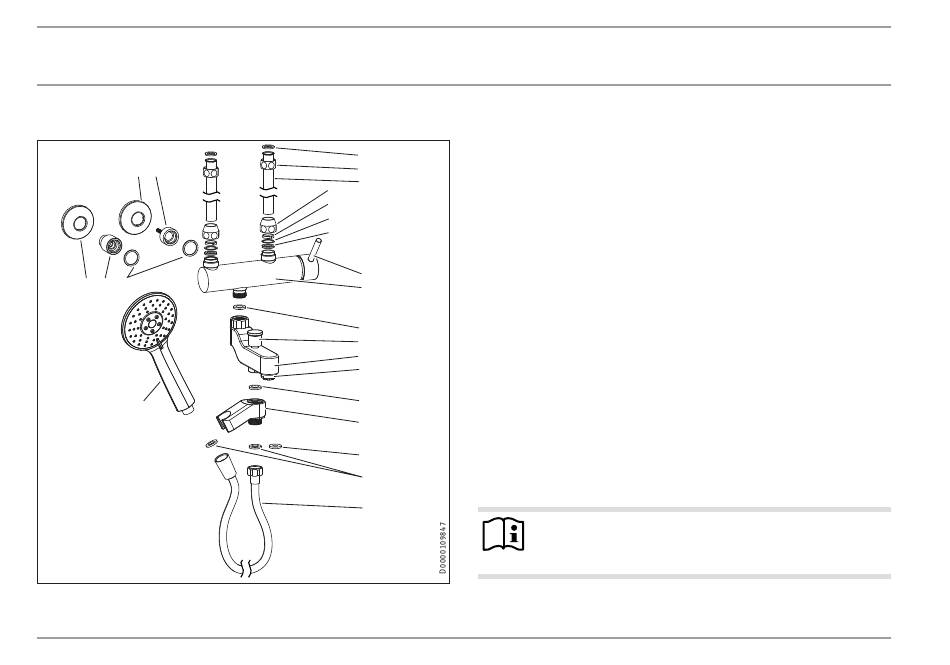

6. Installation
21 22
21 20 19
18
20 | MEKD | MEBD
1 O-ring
2 Union nut
3 Connection pipe
1
4 Union nut of the threaded fitting
2
5 Locking ring
3
4
6 Ring insert
5
7 Seal ring
6
7
8 Tap lever
9 Tap body
10 Silicone seal ring
8
9
11 Diverter valve: Spout and hand shower (MEBD only)
12 Spout
13 Aerator
10
11
14 O-ring (MEBD only)
12
15 Retainer (MEBD only)
13
16 Flow limiter (MEBD only)
17 Hose (MEBD only)
14
18 Hand shower (MEBD only)
15
19 Flat seal ring
20 Tap extension
16
21 Wall bezel
14
22 Anchor pin
17
Notice
If possible, flush the new or repaired cold water pipes
before installing the tap.
