STIEBEL ELTRON Mini 3 Installation Instructions Manual
  1. Manuals
  2. Brands
  3. STIEBEL ELTRON Manuals
  4. Water Heater
  5. MINI 3
  6. Installation instructions manual

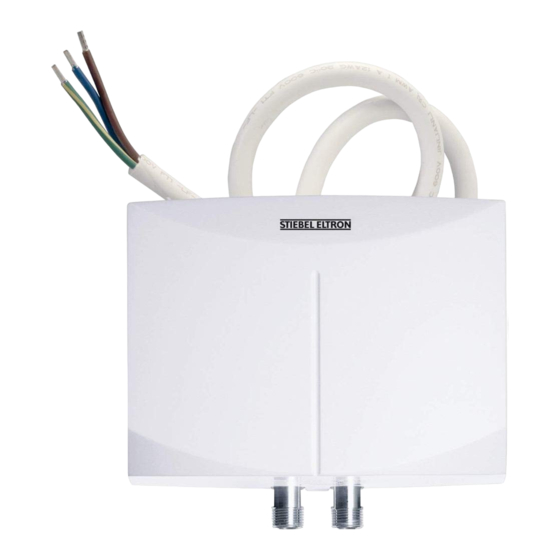

STIEBEL ELTRON Mini 3 Installation Instructions Manual

Tankless electric water heaters
Hide thumbs Also See for Mini 3:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

See also: Installation & Operation , Operation & Installation Manual
Mini™ 3, Mini™ 4, Mini™ 6
English
TANKLESS ELECTRIC WATER HEATERS
INSTALLATION INSTRUCTIONS FOR THE LICENSED PLUMBER AND
ELECTRICIAN
English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini 3 and is the answer not in the manual?

Questions and answers

Related Manuals for STIEBEL ELTRON Mini 3

Summary of Contents for STIEBEL ELTRON Mini 3

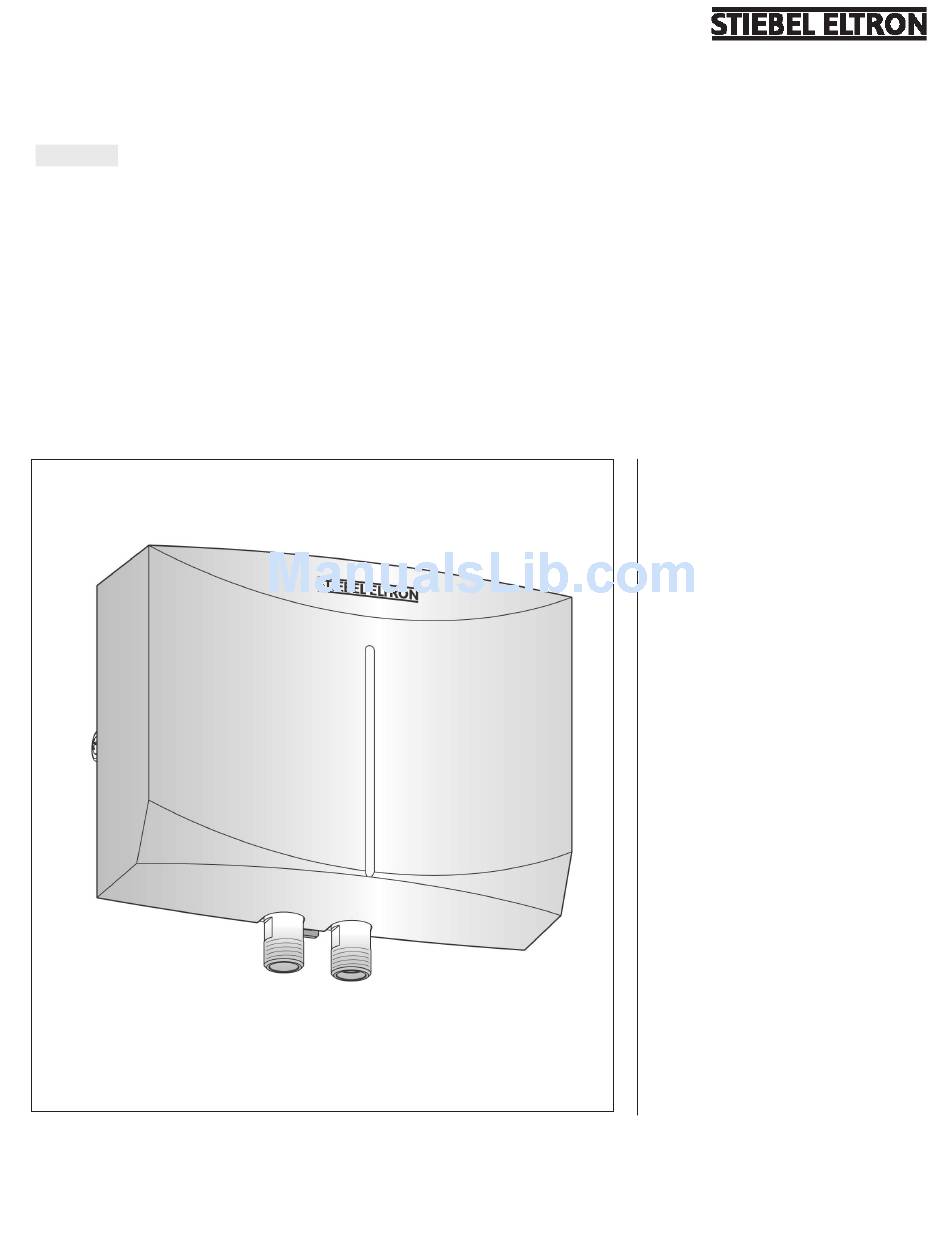

  • Page 1 Mini™ 3, Mini™ 4, Mini™ 6 English TANKLESS ELECTRIC WATER HEATERS INSTALLATION INSTRUCTIONS FOR THE LICENSED PLUMBER AND ELECTRICIAN English ....... . . 2-6 Warranty .

  • Page 2: Temperature Increase Above Ambient Water Temperature

    Temperature increase above ambient water temperature. [ °F ] Typ / Type 0.69 0.85 1.06 1.14 Mini™ 3 – – – Mini™ 4 @ 240V – – – Mini™ 6 @ 240V – Min. water flow to activate unit. [ °C ] Typ / Type l / min Mini™...
  • Page 3 3.54 (190) 3.23 (82) 1.18 (30) 4.72 (120) 0.79 (20) [ inch (mm) ] Mini™ 3 L N GRD Mini™ 4, 6 L L GRD...

  • Page 4: Water Connections

    THIS MANUAL MUST BE READ CAREFULLY BEFORE ATTEMPTING TO INSTALL THE Mini™ WATER HEATER. IF YOU DO NOT FOLLOW THE SAFETY RULES OR THE INSTRUCTIONS OUTLINED IN THIS MANUAL, THE UNIT MAY NOT OPERATE PROPERLY AND IT COULD CAUSE PROPERTY DAMAGE, SE- RIOUS BODILY INJURY AND/OR DEATH.

  • Page 5: Electrical Connection

    Air in the cold water pipe may destroy or in the shower head. Also, the Mini™ 6. The Mini™ is designed for installation using the bare-wire heating system of the has a built in filter screen that should be two (2), 3/8" OD Tube Outlet. Mini™.

  • Page 6: Technical Data

    Technical Data Model Mini™ 3 Mini™ 4 Mini™ 6 Phase Voltage 110-120 220-240 220-240 Wattage Amperage 12.6 15.2 24.7 Min. required circuit breaker size Recommended wire size AWG copper Recommended inlet temperature ºF / ºC 41-77 / 5-25 Min. water flow to activate unit GPM / Lmin 0.5 / 2.0 0.5 / 2.0...

  • Page 7: Warranty

    WARRANTY RESIDENTIAL & COMMERCIAL WARRANTY: STIEBEL ELTRON WARRANTS TO THE ORIGINAL OWNER THAT THE Mini™ TANK- LESS ELECTRIC WATER HEATER WILL BE FREE FROM DEFECTS IN WORKMANSHIP AND MATERIALS FOR A PERIOD OF THREE YEARS FROM THE DATE OF PURCHASE. SHOULD THE PART(S) PROVE TO BE DEFECTIVE UNDER NORMAL USE DURING THIS PERIOD, STIEBEL ELTRON, INC.
  • Page 8 STIEBEL ELTRON, INC. 17 West Street West Hatfield, MA 01088 PHONE: 800-582-8423 or 413-247-3380 FAX: 413-538-8555 E-Mail info@stiebel-eltron-usa.com www.stiebel-eltron-usa.com...

This manual is also suitable for:

Mini 6Mini 4

Table of Contents
