Luxier SP34-SS

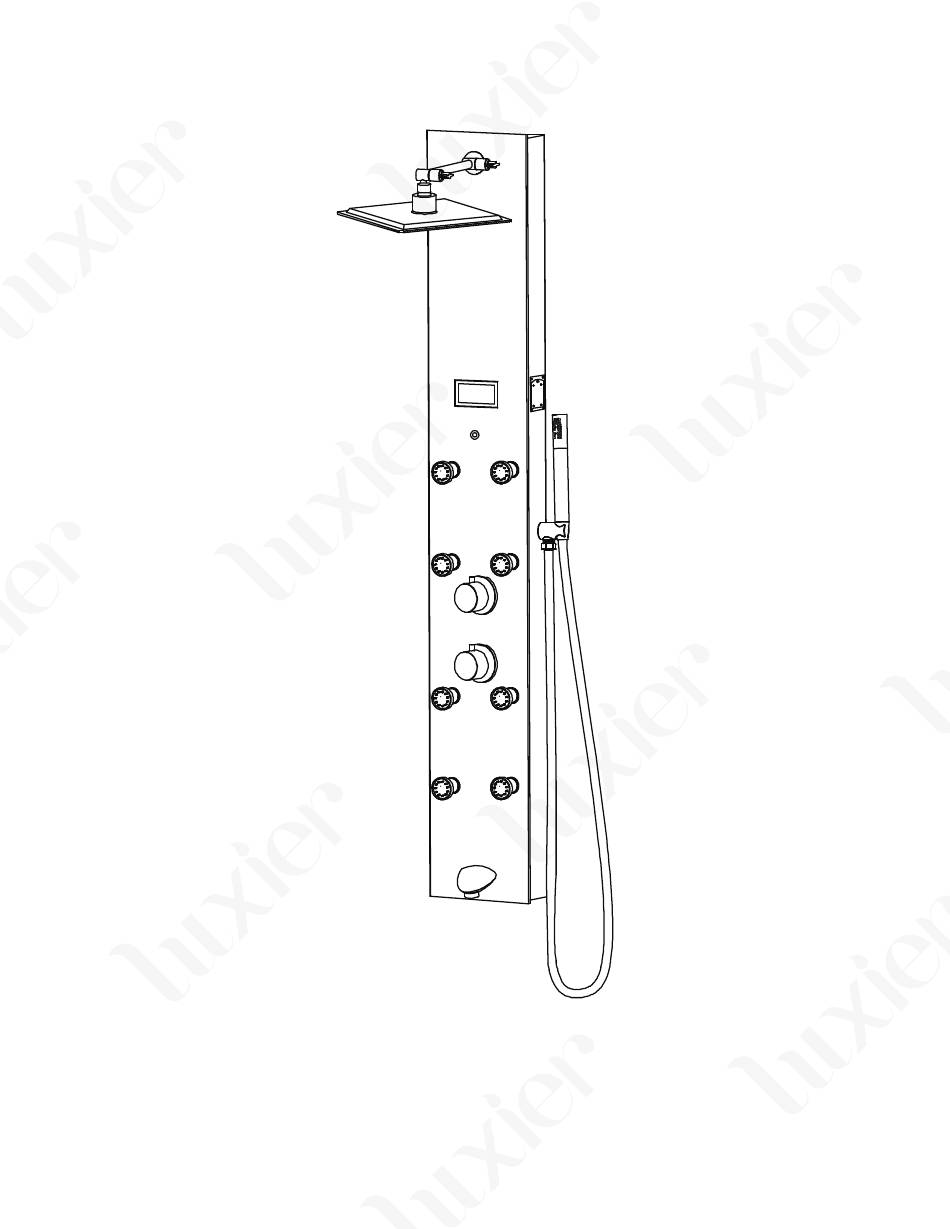

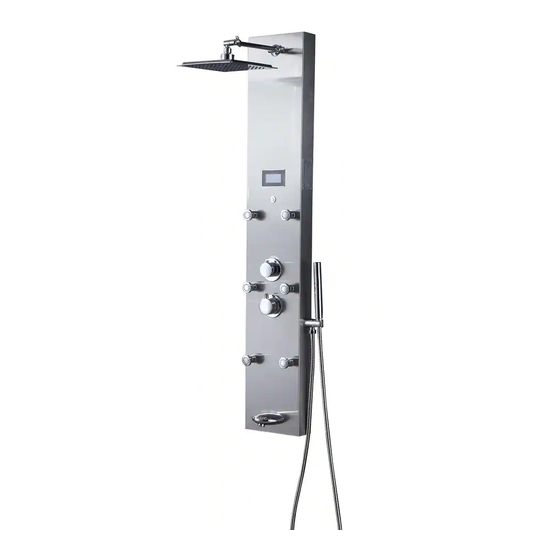

Features
- Stunning stylish European inspired design
- Square thin profile shower head with adjustable shower arm
- 8 swivel massage jets
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Contemporary brass hand shower
- Battery / hydro opereated LCD temperature display
Luxier
1
SP34-SS Rev. A4 092017
Advertisement
Related Manuals for Luxier SP34-SS
Summary of Contents for Luxier SP34-SS
- Page 1 - Square thin profile shower head with adjustable shower arm - 8 swivel massage jets - 3 stage shower functions (Rainfall, Massage Spray, Hand Shower) - Contemporary brass hand shower - Battery / hydro opereated LCD temperature display Luxier SP34-SS Rev. A4 092017...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP34-SS Rev. A4 092017...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP34-SS Rev. A4 092017...
- Page 5 Technical Data Recommended Operating Pressure: 50-80 PSI 304.5mm 220mm 11.99” 8.66” 1300mm 51.18” 690mm 27.17” 630mm 24.8” 420mm 16.54” 78mm 3.07” 185mm 7.28” 60mm 2.36” *All Measurements are Approximate Luxier SP34-SS Rev. A4 092017...
- Page 6 11. Hand Shower Supply Connector 12. Rubber Washer 13. Hand Shower Cradle 14. Rubber Washers 15. Hand Shower Hose 16. Screw x 4 17. Mounting Bracket x2 18. Wall Anchors x 4 19. Hand Shower Luxier SP34-SS Rev. A4 092017...
-
Page 7: Installation
PVC tubing to complete the connection. 3. Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The distance between the two brackets should be 690mm or 27.17”) 690mm 27.17” Luxier SP34-SS Rev. A4 092017... - Page 8 6. Apply thread sealant tape to the threading on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. Luxier SP34-SS Rev. A4 092017...
- Page 9 PTFE tape on the thread to prevent leaking) 9. Connect hand shower hose to the main panel body and connect hand shower to the hose. Make sure to install the rubber washers in the connections. Luxier SP34-SS Rev. A4 092017...
- Page 10 2 AA batteries. With the water running on the shower panel. Press the small button under the digital screen to display current water temperature. The display will automatically shutdown about 18 seconds after the water is turned off. Luxier SP34-SS Rev. A4 092017...
- Page 11 6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier SP34-SS Rev. A4 092017...
