Luxier SP26-GS

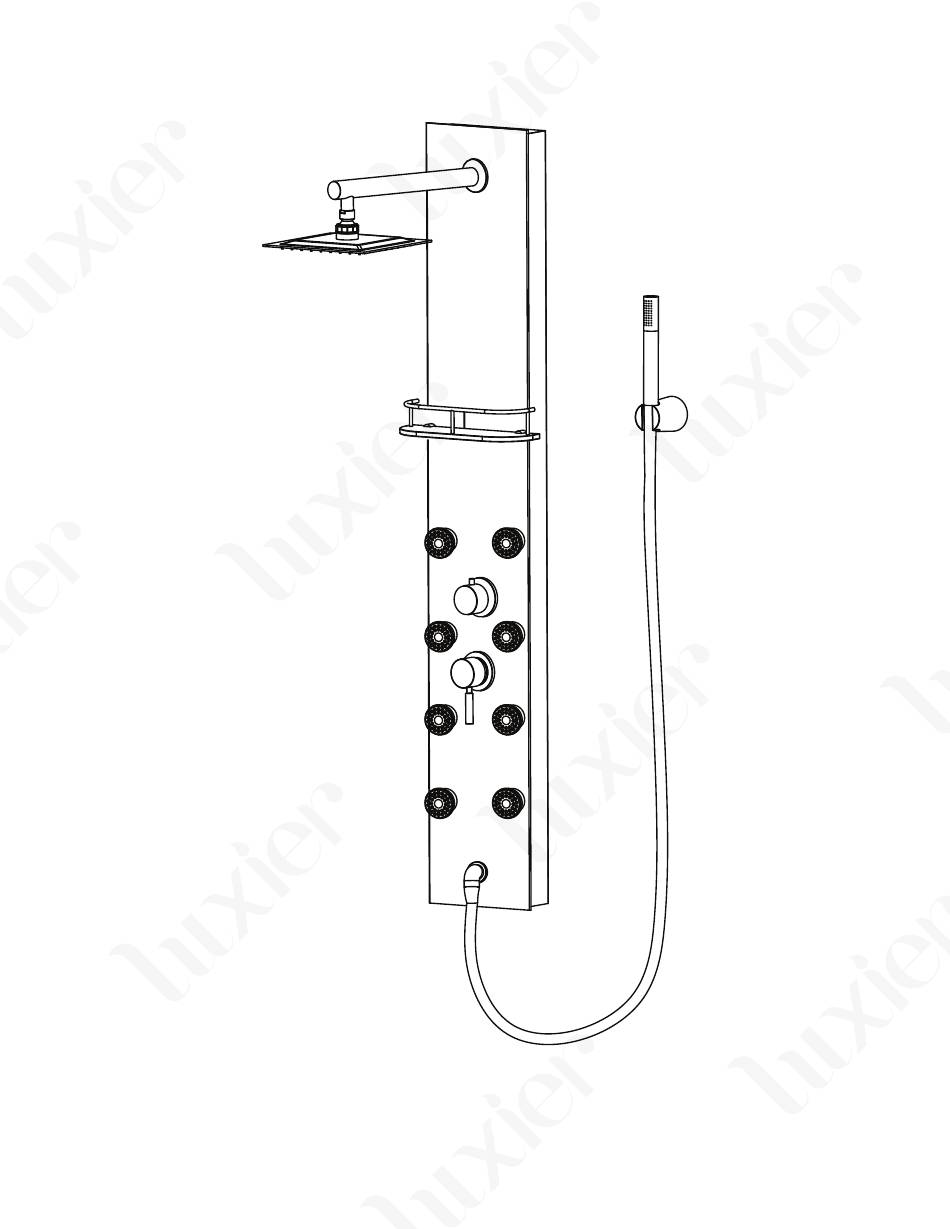

Features
- Stunning stylish European inspired design
- Elegant white safety tempered glass panel
- Square stainless thin profile shower head
- 8 swivel massage jets
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Contemporary brass hand shower
- Tempered glass shelf
Luxier
1
SP26-GS Rev. A 012016
Advertisement
Related Manuals for Luxier SP26-GS
Summary of Contents for Luxier SP26-GS
- Page 1 - Elegant white safety tempered glass panel - Square stainless thin profile shower head - 8 swivel massage jets - 3 stage shower functions (Rainfall, Massage Spray, Hand Shower) - Contemporary brass hand shower - Tempered glass shelf Luxier SP26-GS Rev. A 012016...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 • A laundry outlet box such as the Sioux Chief Ox Box can be used to speed up the installation process of the shut off valves. Luxier SP26-GS Rev. A 012016...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Luxier SP26-GS Rev. A 012016...
- Page 5 Technical Data Recommended Operating Pressure: 50-80 PSI Average Flow Rate: 3.3 gpm at 80 PSI 240mm 340mm 9.45” 13.39” 1300mm 51.18” 710mm 27.95” 430mm 16.93” 270mm 10.63” 70mm 2.76” *All Measurements are Approximate Luxier SP26-GS Rev. A 012016...
- Page 6 09. Rubber Washer 10. Rainfall Shower Supply Connector 11. Hand Shower 12. Hand Shower Cradle 13. Rubber Washer 14. Hand Shower Hose 15. Screw x 4 16. Mounting Bracket x2 17. Wall Anchors x 4 Luxier SP26-GS Rev. A 012016...
-
Page 7: Installation
PVC tubing to complete the connection. 3. Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The distance between the two brackets should be 710mm or 27.95”) 710mm 27.95” Luxier SP26-GS Rev. A 012016... - Page 8 6. Apply thread sealant tape to the threading on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. Luxier SP26-GS Rev. A 012016...
- Page 9 8. Attache shower head. Apply some (NOTE: PTFE tape on the thread to prevent leaking) 7. Connect hand shower hose to the main panel body. Attach the hand shower to the hose. (NOTE: Install the rubber washer to pre- vent leak.) Luxier SP26-GS Rev. A 012016...
- Page 10 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP26-GS Rev. A 012016...
