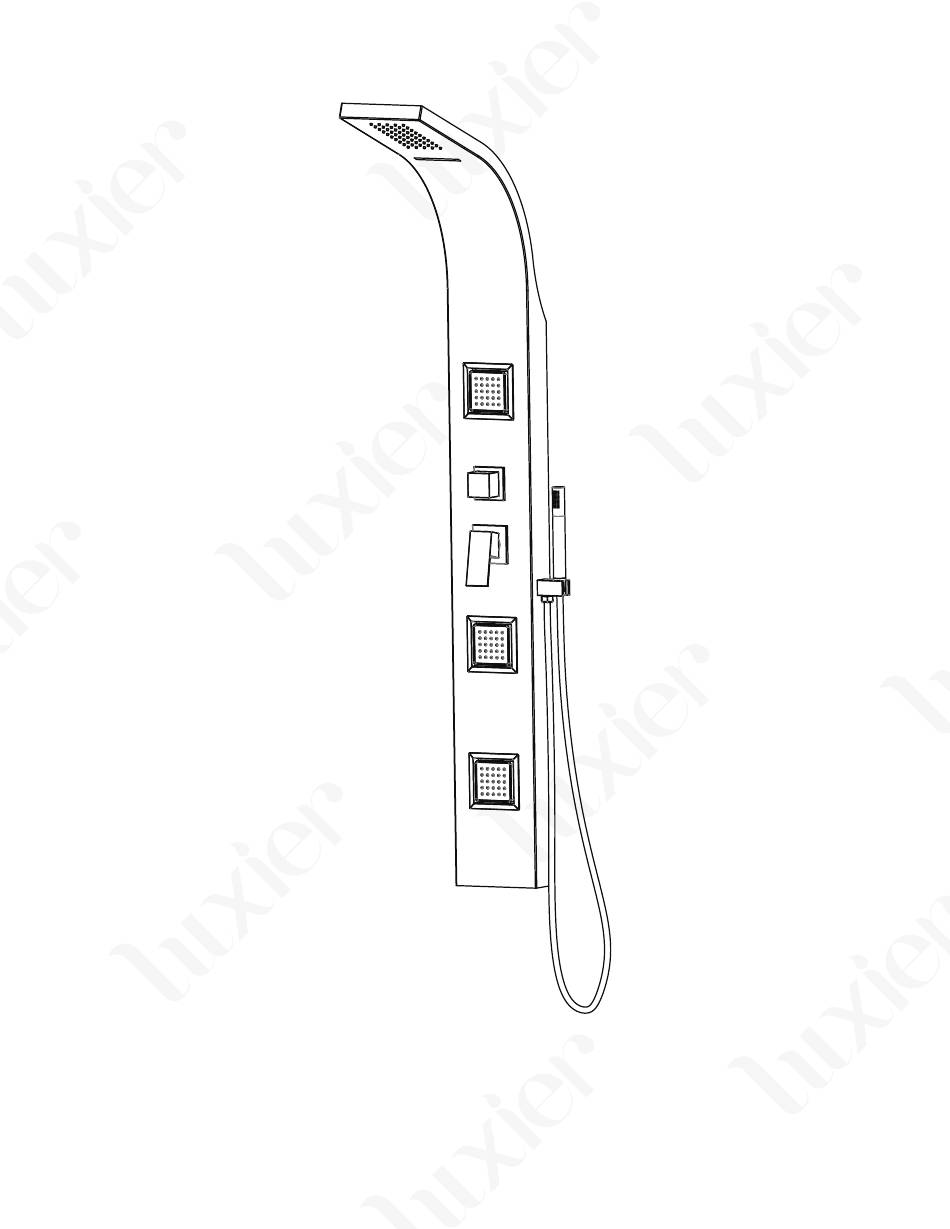

Luxier SP07-SS
Features
- Stunning stylish European inspired design
- Durable stainless steel frame construction
- 3 adjustable angle chrome ABS square massage jets with 25 nozzles on each jet
- 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower)
- 50 total rainfall nozzles
- Contemporary brass hand shower
Luxier
1
SP07-SS Rev. A3 122017

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP07-SS and is the answer not in the manual?

Questions and answers

Related Manuals for Luxier SP07-SS

Summary of Contents for Luxier SP07-SS

  • Page 1 - 3 adjustable angle chrome ABS square massage jets with 25 nozzles on each jet - 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower) - 50 total rainfall nozzles - Contemporary brass hand shower Luxier SP07-SS Rev. A3 122017...
  • Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
  • Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP07-SS Rev. A3 122017...
  • Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP07-SS Rev. A3 122017...
  • Page 5 Technical / Flow Rate Data Recommended Operating Pressure: 50-70 PSI 180mm 490mm 7.1” 19.29” 1,580mm 62.2” 810mm 31.89” 560mm 22.05” 660mm 25.98” 310mm 12.2” 60mm 2.36” *All Measurements are Approximate Luxier SP07-SS Rev. A3 122017...
  • Page 6 02. Hand Shower Water Connector 03. Rubber Washer 04. Hand Shower 05. Hand Shower Cradle 06. Rubber Washer 07. Hand Shower Hose 08. Screws X 4 09. Mounting Brackets X 2 10. Wall Anchors X 4 Luxier SP07-SS Rev. A3 122017...

  • Page 7: Installation

    810 mm or 31.89”) 31.89” 3. Using a drill with a tile bit, drill the hole slowly into the tile. Do not drill into any piping or wiring in the wall. Insert the anchors into the wall. 1” Luxier SP07-SS Rev. A3 122017...
  • Page 8 Turn on both valves and test all functions on the shower panel and check for leaks at this point. You should have good water flow to the shower panel and full temperature control from the knobs. Luxier SP07-SS Rev. A3 122017...
  • Page 9 (NOTE: Do not seal the bottom of the panel.) 7. Connect hand shower hose to the main panel body and connect the hand shower wand to the hose. Make sure the silicon gaskets are seated properly to prevent water leak. Luxier SP07-SS Rev. A3 122017...

  • Page 10: Operation

    5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP07-SS Rev. A3 122017...
