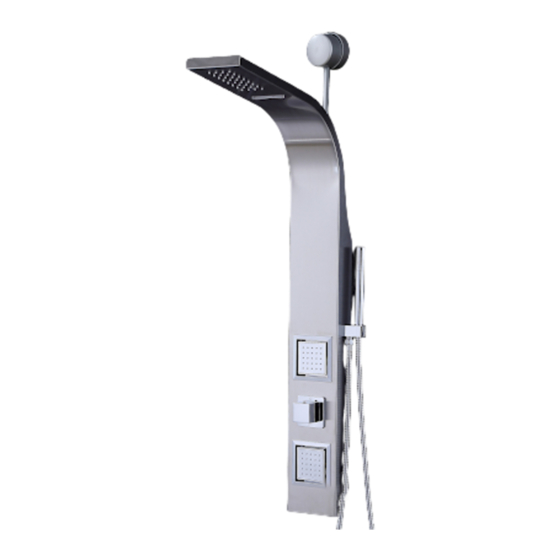

SP06-CEC
Features
- EZ-Connect: Connects to existing shower plumbing
- Elegant & Durable stainless steel frame construction
- 4 stage shower function (Rainfall, Waterfall, Horizontal Massage Jets, Hand Shower)
- 2 ABS square message body jets with adjustable angle
Luxier
1
SP06-CEC Rev. A 102019

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP06-CEC and is the answer not in the manual?

Questions and answers

Related Manuals for Luxier SP06-CEC

Summary of Contents for Luxier SP06-CEC

  • Page 1 - EZ-Connect: Connects to existing shower plumbing - Elegant & Durable stainless steel frame construction - 4 stage shower function (Rainfall, Waterfall, Horizontal Massage Jets, Hand Shower) - 2 ABS square message body jets with adjustable angle Luxier SP06-CEC Rev. A 102019...
  • Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
  • Page 3 The distance needs to be 34” - 42” to fit the shower panel. Distance required for proper installation: 34” - 42” Luxier SP06-CEC Rev. A 102019...
  • Page 4 EZ Connect let’s you quickly install the shower panel to the existing shower plumbing with ease. 1. Remove existing shower head assembly 2. Connect shower panel water supply hose to the existing plumbing BEFORE AFTER Luxier SP06-CEC Rev. A 102019...
  • Page 5 To learn more about this water saving feature, please contact our customer service department. 140 mm 459.5 mm 5.51” 18.09” 1050 mm 41.34” 444 mm 17.48” 450 mm 17.2” 190 mm 7.48” 65 mm 2.56” * Drawings not to scale. All measurements are approximate * Luxier SP06-CEC Rev. A 102019...
  • Page 6 11. Main Water Supply Hose 12. Cover 13. Base 14. Hose Clamp 15. Elbow Connector 16. Brass Nipple 17. Screws X 4 18. Mounting Brackets X 2 19. Wall Anchors X 4 20. Check Valve Luxier SP06-CEC Rev. A 102019...

  • Page 7: Installation

    (2) and the locking nut (3) and attach white plastic hose tube connector (5) with PVC tubing to complete the connection. (NOTE: Make sure the silicon gasket (4) is seated properly inside the connector.) Luxier SP06-CEC Rev. A 102019...
  • Page 8 7. Hang the unit on the wall to complete the installation. Due to the limited space behind the shower panel, do not bend the hoses. Any restrictions in the water supply hoses will greatly reduce the performance of the shower panel. Luxier SP06-CEC Rev. A 102019...
  • Page 9 Make sure the silicon gaskets are seated properly to prevent water leak. Run water to the unit for few minutes and check for leaks at all connections. Luxier SP06-CEC Rev. A 102019...

  • Page 10: Operation

    8. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 9. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP06-CEC Rev. A 102019...
