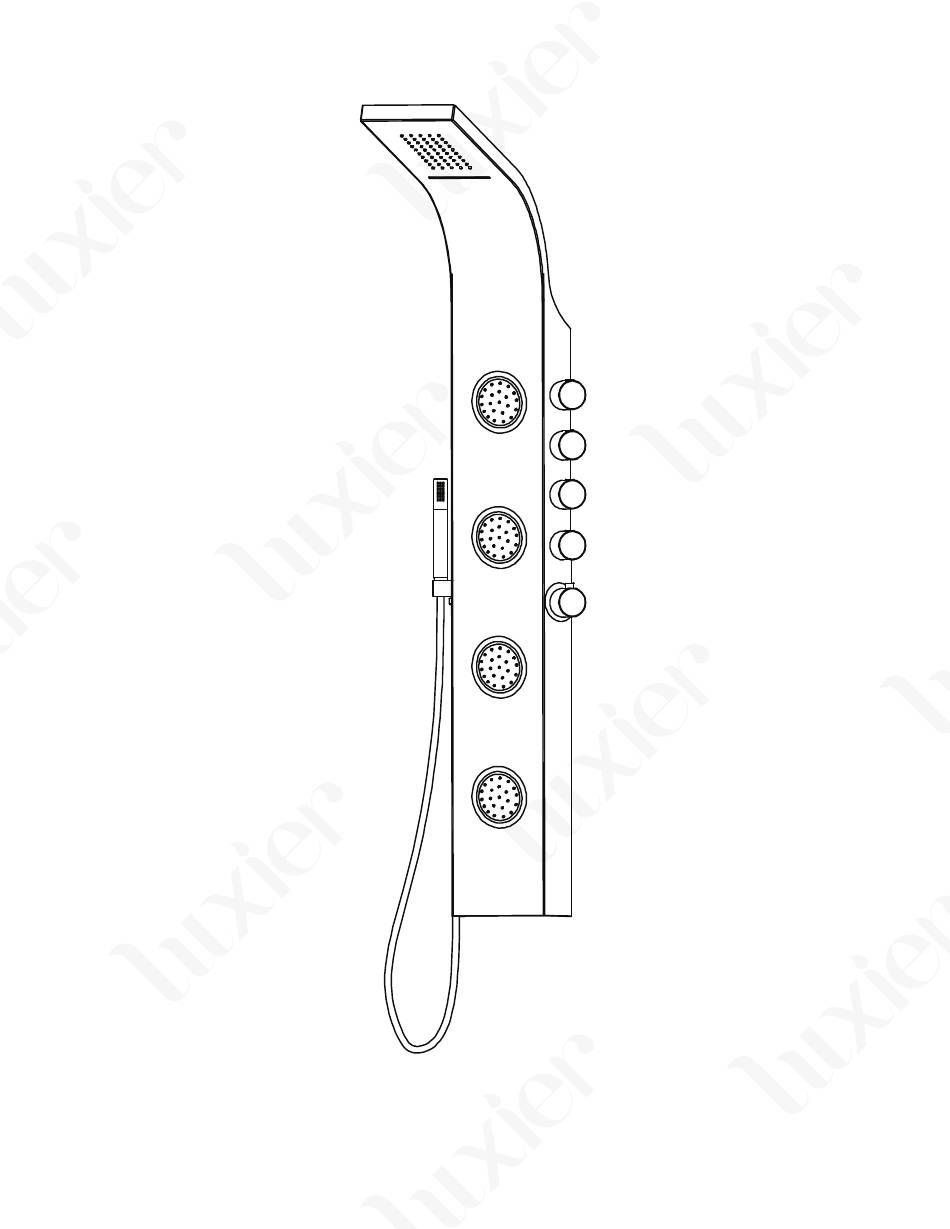

Luxier SP32-SS
Features
- Elegant & Durable stainless steel frame construction
- 4 stage shower function (Rainfall, Waterfall, Horizontal Massage Spray, Hand Shower)
- 50 total rainfall nozzles and 4 adjustable horizontal spray massage jet pads with 22 nozzles on each pad
- Pressure-balanced valve minimizes the chance of scalding.
Luxier
1
SP32-SS Rev. A2 092017

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP32-SS and is the answer not in the manual?

Questions and answers

Related Manuals for Luxier SP32-SS

Summary of Contents for Luxier SP32-SS

  • Page 1 - 4 stage shower function (Rainfall, Waterfall, Horizontal Massage Spray, Hand Shower) - 50 total rainfall nozzles and 4 adjustable horizontal spray massage jet pads with 22 nozzles on each pad - Pressure-balanced valve minimizes the chance of scalding. Luxier SP32-SS Rev. A2 092017...
  • Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
  • Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP32-SS Rev. A2 092017...
  • Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP32-SS Rev. A2 092017...
  • Page 5 Technical Data Recommended Operating Pressure: 50-80 PSI 200mm 495mm 7.87” 19.49” 1500mm 59.06” 690mm 27.17” 575mm 580mm 22.64” 22.83” 350mm 13.78” 72.5mm *All Measurements are Approximate 2.85” Luxier SP32-SS Rev. A2 092017...
  • Page 6 02. Hand Shower Water Supply Connector 03. Locking Nut 04. Hand Shower 05. Hand Shower Cradle 06. Rubber Washer 07. Hand Shower Hose 08. Screws X 4 09. Mounting Brackets X 2 10. Wall Anchors X 4 Luxier SP32-SS Rev. A2 092017...

  • Page 7: Installation

    690mm 27.17” 3. Using a drill with a tile bit, drill the hole slowly into the tile. Do not drill into any piping or wiring in the wall. Insert the anchors into the wall. 1” Luxier SP32-SS Rev. A2 092017...
  • Page 8 Turn on both valves and test all functions on the shower panel and check for leaks at this point. You should have good water flow to the shower panel and full temperature control from the knobs. Luxier SP32-SS Rev. A2 092017...
  • Page 9 (NOTE: Do not seal the bottom of the panel.) 7. Connect hand shower hose to the main panel body and connect the hand shower wand to the hose. Make sure the silicon gaskets are seated properly to prevent water leak. Luxier SP32-SS Rev. A2 092017...

  • Page 10: Operation

    5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP32-SS Rev. A2 092017...
