Lock
Level
Use this lock level for programming the pump's functions.
LL0
In the Continuous Rate mode, the patient may decrease the ML
LL1
rate or increase it up to the value that had been programmed in
Lock Level 0. In addition, the patient may prime the tubing and
reset the RES VOL to the original programmed value.
The patient may stop or start the pump and clear the RES VOL
LL2
alarm.
If the RES VOL on the display is "000," the patient may reset the
LL0,
RES VOL by pressing the SET/CLEAR key. To display the current
LL1,
lock level, be sure the pump is in the Stop mode; and then press and
LL2
release the LOCK key.

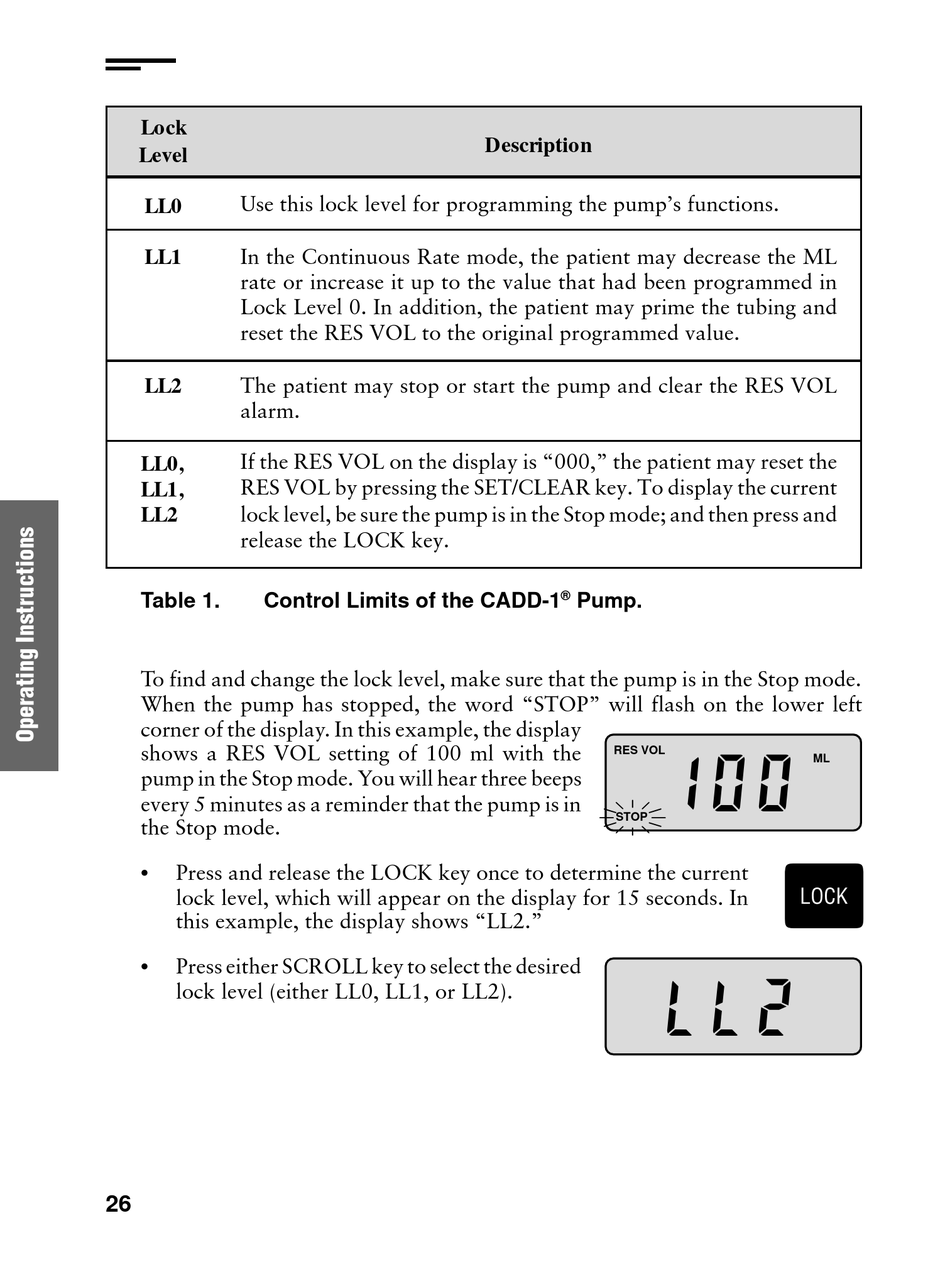

Table 1.
Control Limits of the CADD-1
To find and change the lock level, make sure that the pump is in the Stop mode.
When the pump has stopped, the word "STOP" will flash on the lower left
corner of the display. In this example, the display
shows a RES VOL setting of 100 ml with the
pump in the Stop mode. You will hear three beeps
every 5 minutes as a reminder that the pump is in
the Stop mode.
Press and release the LOCK key once to determine the current
•
lock level, which will appear on the display for 15 seconds. In
this example, the display shows "LL2."
Press either SCROLL key to select the desired
•
lock level (either LL0, LL1, or LL2).
26
Description
®
Pump.
RES VOL
100
*
STOP
LL2
ML
Œ
