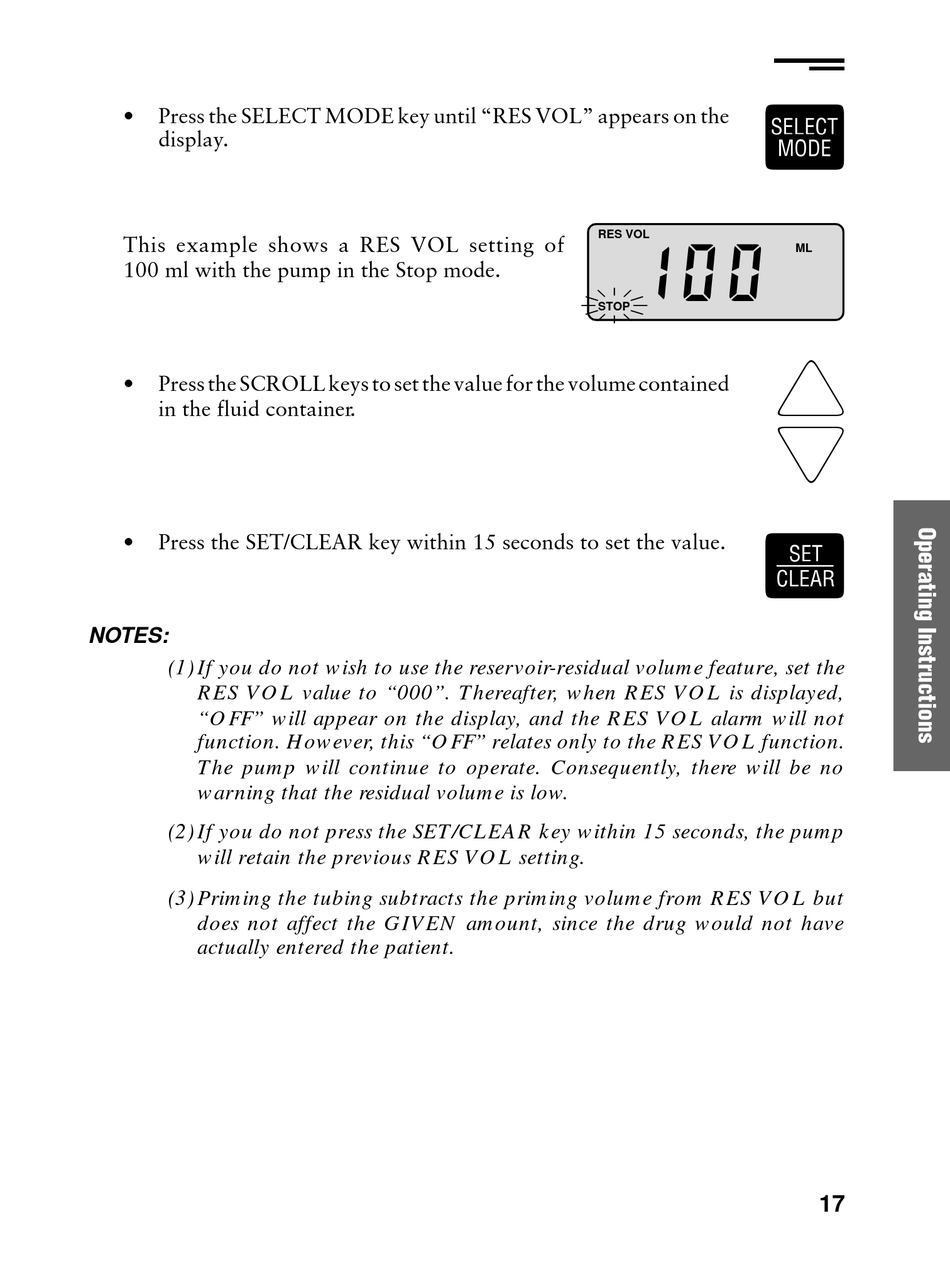

SIMS Deltec CADD-1 5100 HFX Operator's Manual page 23

Press the SELECT MODE key until "RES VOL" appears on the
•
display.
This example shows a RES VOL setting of
100 ml with the pump in the Stop mode.
Press the SCROLL keys to set the value for the volume contained
•
in the fluid container.
Press the SET/CLEAR key within 15 seconds to set the value.
•
NOTES:
(1) If you do not w ish to use the reservoir-residual volum e feature, set the
R ES V O L value to "000". T hereafter, w hen R ES V O L is displayed,
"O FF" w ill appear on the display, and the R ES V O L alarm w ill not
function. H ow ever, this "O FF" relates only to the R ES V O L function.
T he pum p w ill continue to operate. Consequently, there w ill be no
w arning that the residual volum e is low.
(2) If you do not press the SET /CL EA R k ey w ithin 15 seconds, the pum p
w ill retain the previous R ES V O L setting.
(3) Prim ing the tubing subtracts the prim ing volum e from R ES V O L but
does not affect the G IV EN am ount, since the drug w ould not have
actually entered the patient.
RES VOL
100
*
STOP
„
ML
´
Î
¤
17
