Page 3: Table Of Contents
METAL-FACH Heating Technology Contents Introduction ................................. 2 Symbols used in the manual ............................2 Introductory steps ............................... 2 General information..............................3 Application .................................. 3 Boiler equipment ................................. 4 Basic elements of boiler construction a ........................5 Boiler technical data ..............................8 Boiler dimensions ................................ -
Page 4: Introduction
Introduction Dear Customer, thank you for purchasing a heating boiler from METAL-FACH Technika Grzewcza Sp. z o. o . We hope that the use of the device will meet your expectations and provide you with much satisfaction. The heating boiler was designed and manufactured in accordance with applicable norms and standards, guaranteeing safe and reliable operation. -
Page 5: General Information
Technika Grzewcza Sp. z o. o .. These people have appropriate training and access to original parts enabling proper service and installation of METAL-FACH Technika Grzewcza Sp. boilers. z o. o ., confirmed by a certificate issued at the company's headquarters. -
Page 6: Boiler Equipment
The user should carefully read the operating instructions for the regulator, fan and feeder with the burner. ATTENTION! METAL-FACH Technika Grzewcza Sp. z o. o . reserves the right to introduce changes in technical parameters, equipment and specifications of the offered goods without prior notice. -
Page 7: Basic Elements Of Boiler Construction A

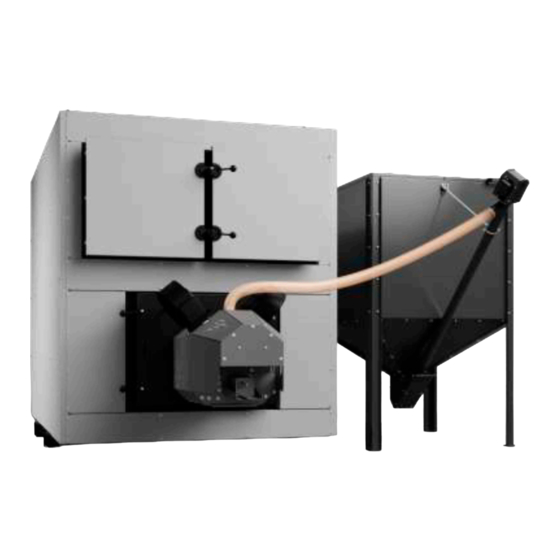

METAL-FACH Heating Technology Basic elements of boiler construction a (User | Installer) GRAND PELLET 300 boiler It consists of the following basic teams: exchanger (1), tank (2), feeder (3), burner (4), regulator (5) (controller). - Page 8 METAL-FACH Heating Technology GRAND PELLET 300 boiler...
- Page 9 METAL-FACH Heating Technology Exchanger: On this wall there are: door (19) with a burner (18) attached to it, Front wall door (28) allows removal of ash from inside the boiler, door (22) allows you to clean the flame tubes.
-
Page 10: Boiler Technical Data
METAL-FACH Heating Technology Boiler technical data (User | Installer) Boiler model Parameters SI unit Nominal thermal power [kW] Boiler power range [kW] 90-300 Heating surface Water capacity 1266 Maximum working pressure [bar] [°C] Maximum operating temperature Test pressure [bar] Boiler class Boiler efficiency 90.5... -
Page 11: Boiler Dimensions
METAL-FACH Heating Technology Boiler dimensions (User | Installer) GRAND PELLET 300 boiler... -
Page 12: Security Automation And Regulation
METAL-FACH Heating Technology Security automation and regulation (User | Installer) The boiler automation allows you to set: boiler temperature ; temperature in the central heating circuit CO1, CO2. hot water temperature ; room temperature ; ... -
Page 13: Requirements For The Boiler Room And Boiler Installation
METAL-FACH Heating Technology Requirements for the boiler room and boiler installation (User | Installer) In Poland, boiler rooms built for solid fuel should meet the requirements of the standard PN-87/B-02411 "Boiler rooms built for solid fuel" and Journal of Laws 2015.0.1422. They are divided into two types: 1. - Page 14 METAL-FACH Heating Technology Minimum distances for placing the boiler in the boiler room ATTENTION! Mechanical exhaust ventilation should not be used in the boiler room. ATTENTION! Ensuring the supply of sufficient fresh air to the boiler room will enable effective fuel combustion.
-
Page 15: Boiler Installation
METAL-FACH Heating Technology Boiler installation (User | Installer) An important element of installation is the correct positioning and leveling of the GRAND PELLET boiler, the boilers do not require special foundations. Leveling the boiler is facilitated by adjustable feet (for boilers up to 50 kW ). The boiler must stand vertically. -
Page 16: Connection Of The Boiler With The Heating Installation
METAL-FACH Heating Technology Connection of the boiler with the heating installation (Installer) The boiler should be connected to the central heating system by a company authorized by the manufacturer, and the correct connection should be confirmed on the warranty card attached to this manual. The boiler should be connected according to the manufacturer's recommendations and in accordance with these instructions. - Page 17 METAL-FACH Heating Technology Diagrams of connecting boilers to the heating installation in accordance with the PN - 91/B – 02420 standard Designation Description Vent pipe Expansion pipe Signaling pipe Overflow pipe Safety pipe Temperature Pressure...
- Page 18 METAL-FACH Heating Technology Diagrams of connecting boilers to the heating installation in accordance with the PN - 91/B – 02420 standard Designation Description Vent pipe Expansion pipe Signaling pipe Overflow pipe Safety pipe Temperature Pressure...
-
Page 19: Requirements For The Expansion Vessel
The first start-up of the boiler must be carried out only by a service trained by the manufacturer, with a current certificate of an Authorized Service Technician, Distributor of METAL-FACH Technika Grzewcza Sp. z o. o . or A person with SEP qualifications up to 1.5 kW. -
Page 20: Connecting The Boiler To The Chimney
METAL-FACH Heating Technology Connecting the boiler to the chimney (Installer) Smoke pipes The purpose of the smoke ducts is to reliably discharge exhaust gases outside and suck in air enabling fuel combustion. The chimney draft required for this depends on: ... -
Page 21: Starting The Boiler
METAL-FACH Heating Technology Starting the boiler (User | Installer) ATTENTION! The controller settings are freely adjustable due to the variety of existing central heating installations, the building's heat demand as well as the calorific value of the fuel. The user sets the boiler operating parameters himself. -
Page 22: Please Remember This When Using The Boiler
METAL-FACH Heating Technology ATTENTION! Remember to close the feeder cover tightly. ATTENTION! When opening the door, do not stand in front of the boiler, as it may cause burns. Please remember this when using the boiler (User) the boiler may only be operated by adults who have read the operating instructions;... -
Page 23: Cleaning And Maintenance
METAL-FACH Heating Technology Cleaning and maintenance (User) ATTENTION! The boiler can only be cleaned with the device disconnected from the electrical network. To save fuel, keep the combustion chamber and boiler convection channels clean. In the combustion chamber, clean the walls and shelves through the cleaning and inspection doors. The boiler exchanger and ash pan are also regularly cleaned. -
Page 24: Examples Of Device Failure
METAL-FACH Heating Technology Examples of device failure (User) Before calling the service, please read the most frequently asked questions. Online application: www. metalfachtg . com . pl /zglos-problem-online Hotline: +48 85 711 94 54 ext. 17 Instructional videos: www. youtube . com /c/METALFACHTechnikaGrzewcza... -
Page 25: Terms Of Warranty
2. The warranty for the device is provided by the manufacturer (also called the "Guarantor"): Jacek Kucharewicz , running a business under the name METAL-FACH Technika Grzewcza Sp. z o. o ., 16-100 Sokółka, ul. Sikorskiego 66, NIP: 545-182-60-12, REGON 050073833, phone +48 85 711 94 54 ext. 17. - Page 26 METAL-FACH Heating Technology 85 711 94 54 ext. 17) , confirming this fact in the warranty card and sending the commissioning report to the Guarantor. The first start-up of the boiler is a paid service and its cost is covered by the User.
- Page 27 METAL-FACH Heating Technology 11. The warranty does not exclude, limit or suspend the buyer's rights arising from the provisions on warranty for defects in the sold item.
-
Page 28: Confirmation Of Inspection, Warranty Repair And Service
METAL-FACH Heating Technology Confirmation of inspection, warranty repair and service Signature and stamp of the Date of execution Description of activities performed contractor... - Page 29 METAL-FACH Heating Technology Signature and stamp of the Date of execution Description of activities performed contractor...
- Page 30 METAL-FACH Heating Technology...
-
Page 31: Ec/Eu Declaration Of Conformity
METAL-FACH Heating Technology EC/EU declaration of conformity Producer: Product name and purpose: Steel central heating boiler for solid fuel with automatic fuel charging. METAL-FACH Technika Grzewcza Sp. z o. o . Street Sikorskiego 66 Type: GRAND PELLET 300 16-100 Sokółka... - Page 32 METAL-FACH Heating Technology...
-
Page 33: Warranty Card
All correspondence regarding the processing of personal data should be sent to the following address: METAL-FACH Technika Grzewcza Sp. z o. o ., 16-100 Sokółka, ul. Sikorskiego 66. Providing personal data is voluntary. In accordance with the Act of August 29, 1997 on the protection of personal data (consolidated text: Journal of Laws of 2014 , item 1182), we would like to inform you that personal data provided in this form will be protected against access by unauthorized persons. - Page 34 METAL-FACH Heating Technology...
-
Page 35: The Complaint
2. The warranty card is the only basis for free repair. 3. The person filing the complaint undertakes to reimburse the costs incurred by METAL-FACH Technika Grzewcza Sp. z o. o . In the event of an unjustified call to the service team, or failure to complete points 1 or 2 (each commenced hour of service technician's work PLN 70 net, travel PLN 1 net/km both ways). - Page 36 All correspondence regarding the processing of personal data should be sent to the following address: METAL-FACH Technika Grzewcza Sp. z o. o ., 16-100 Sokółka, ul. Sikorskiego 66. Providing personal data is voluntary. In accordance with the Act of August 29, 1997 on the protection of personal data (consolidated text: Journal of Laws of 2014 , item 1182), we would like to inform you that personal data provided in this form will be protected against access by unauthorized persons.
-
Page 37: Report On The First Boiler Start-Up
1. E-mail - where a scan or photo of the report will be posted. 2. A letter - in which a copy of the report will be sent to METAL-FACH Technika Grzewcza Sp. z o. o ., the company's address is at the end of the Technical and Operational Document. - Page 38 All correspondence regarding the processing of personal data should be sent to the following address: METAL-FACH Technika Grzewcza Sp. z o. o ., 16-100 Sokółka, ul. Sikorskiego 66. Providing personal data is voluntary. In accordance with the Act of August 29, 1997 on the protection of personal data (consolidated text: Journal of Laws of 2014 , item 1182), we would like to inform you that personal data provided in this form will be protected against access by unauthorized persons.
-
Page 39: Report On The First Boiler Start-Up
1. E-mail - where a scan or photo of the report will be posted. 2. A letter - in which a copy of the report will be sent to METAL-FACH Technika Grzewcza Sp. z o. o ., the company's address is at the end of the Technical and Operational Document. - Page 40 All correspondence regarding the processing of personal data should be sent to the following address: METAL-FACH Technika Grzewcza Sp. z o. o ., 16-100 Sokółka, ul. Sikorskiego 66. Providing personal data is voluntary. In accordance with the Act of August 29, 1997 on the protection of personal data (consolidated text: Journal of Laws of 2014 , item 1182), we would like to inform you that personal data provided in this form will be protected against access by unauthorized persons.
