PROAIM CINEMA Series Assembly Manual

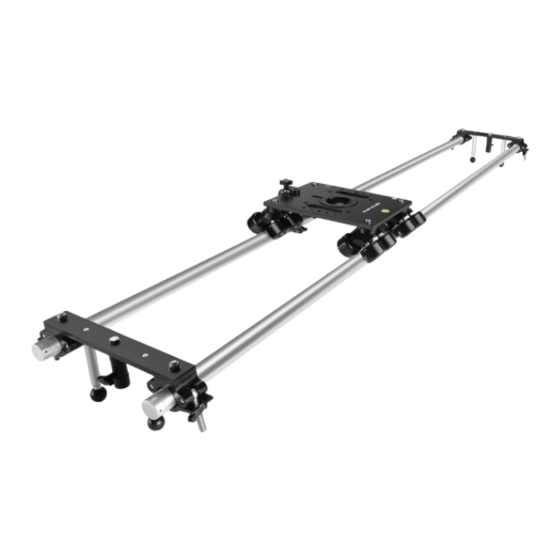

Portable camera dolly with 8ft track
Hide thumbs
Also See for CINEMA Series:
- Instruction manual (18 pages) ,
- Assembly manual (14 pages) ,
- Assembly manual (3 pages)
Advertisement
Quick Links
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Polaris Dolly with 16 Wheels
75mm Bowl Adapter
100mm Bowl
4 x Foot
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
Polaris Portable Camera Dolly with 8ft Track
A s s e m b l y M a n u a l
4 x Track
Adapter
Aluminum Pipes
All rights reserved.
statutes or in writing by the Publisher.
(DL-PLRS-4P)
2 x Universal Track
Ends
5mm Allen
Key
Conversion Ring
Anti-Tilt Safety
Centre Support
Break
Flight Case
1
Advertisement
Related Manuals for PROAIM CINEMA Series
Summary of Contents for PROAIM CINEMA Series
- Page 1 Polaris Portable Camera Dolly with 8ft Track (DL-PLRS-4P) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Functions Dolly Platform Polaris dolly, designed for hassle-free Aluminum operations and a smaller footprint, all Speed Rails while delivering stability and safety. Rail is an extruded system with low weight and maximum strength to support the dolly. Anti Tilt Safety 16 Wheels Break 16-wheel design with floating...
- Page 3 Centre Support Assembly • Insert the foot in the provided holes of the Universal Track Ends. • Insert and tighten the remaining three feet in the Track Ends, as shown in the image. • To form an 8ft track aluminium rail, attach two 4ft rails.
- Page 4 • After mounting the track ends onto the C-Stand (Not Included), tighten the provided knob to secure the setup. • Loosen the knob of the Centre support bar and attach the bar below the track rail system using a support Stand (Not Included).
- Page 5 • The image shows the removed 75mm bowl adapter. • To attach the 100mm bowl adapter, loosen all three attached bolts using the Allen key. • After loosening the bolts, remove them, as shown in the image. • Mount the 100mm bowl adapter on the dolly platform.
- Page 6 • After properly securing the Fluid Head (Not Included) through the locking knob and conversion ring, push the red ratchet knob to remove the fluid head’s camera plate. • After removing the camera plate, attach it to the bottom of the camera (Not Included) tighten the bolts using the Allen key.
- Page 7 YOUR PROAIM POLARIS PORTABLE CAMERA DOLLY WITH 8FT TRACK ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
