- Page 1 Infinity Foldable Light Dolly with Track System (DL-INFY) Instruction Manual...
-
Page 2: Table Of Contents
At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise. -
Page 3: Foreword
On behalf of all the people that work so hard to provide you with the most up-to-date, flexible and cost-efficient production gear, we would like to welcome you into the Proaim family. By purchasing your Infinity Foldable Light Dolly with Track System, you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do. -
Page 4: Introduction
The Tool-less Dolly Track System has short set-up time of just 2 minutes. Proaim Infinity also includes a Sliding Push Pull Bar for ease of movement. The Dolly Track folds into a small lightweight package and reduces the transport dimensions. - Page 5 2pc End Stoppers 10.6ft Track Track Storage Bag Flight Case NOTE: If you have purchased (DL-INFY-01) kit, you will also receive the following: Ground Star Telescopic Lever 100mm Bowl Bazooka Riser Vertical Arm Round Dolly Seat (30cm/12”)
-
Page 6: Safety Hints
Flight Case Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT SERIOUS DAMAGE TO THE EQUIPMENT! NEVER LEAVE THE FIXTURES LOOSE Carefully tighten all the parts & fasteners to prevent damage to the equipment & any harm to crew. INSPECT THE SURROUNDINGS PRIOR TO OPERATION The operating area of dolly on track and its accessories must be kept clear. -
Page 7: Assembling

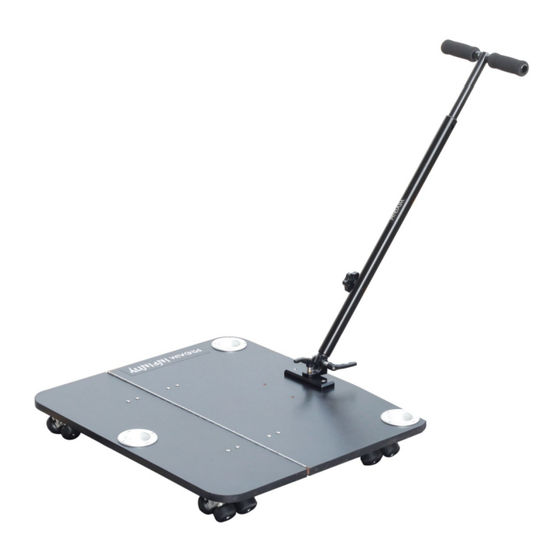

Assembling of Track Place all the Track Pads onto flat surface, 3 on each side, and join them together with the help of attached Velcro strips. Then unfold all the sections of both lengths of Track, as shown in image. NOTE: The sections of Track are connected together with strong integrated Elastic Cord that effortlessly tows each of them. - Page 8 Assembling of Dolly Unfold the dolly and loosen the knob. Insert the rod into rod adapter and tighten knob to lock properly. Position Steering Push Bar onto one of the Standard Arms. Connect properly by tightening knob. Now place the dolly on the track.
- Page 9 Attach the Vertical Arm onto the Pin of Ground Star and tighten the knob to secure it . Attach the Round Dolly Seat rod with the Vertical Arm and lock it securely with the respective locking knob. Mount Telescopic Bazooka on Euro Adapter for instant height adjustment of your setup.
- Page 10 Mount 100mm Bowl Camera Riser on the Telescopic Bazooka . Tighten the knob to secure properly. NOTE: We can adjust the height of Telescopic Bazooka according to the requirement with the help of knob...
-
Page 11: Warranty
YOUR PROAIM INFINITY FOLDABLE LIGHT DOLLY WITH TRACK SYSTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
