PROAIM CINEMA Series Assembly Manual

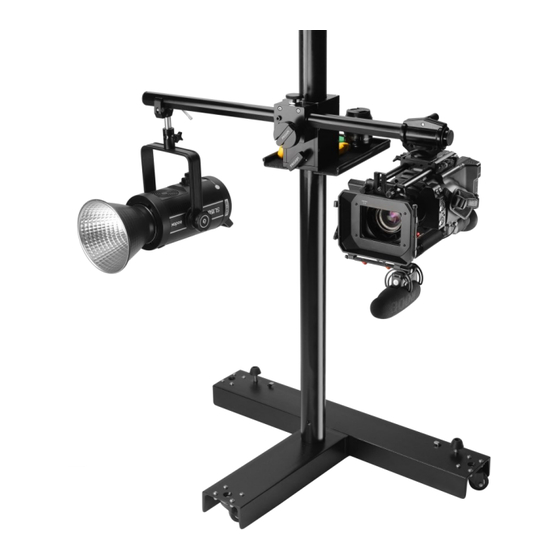

Cam tower stand w/ counterbalance

Hide thumbs Also See for CINEMA Series:

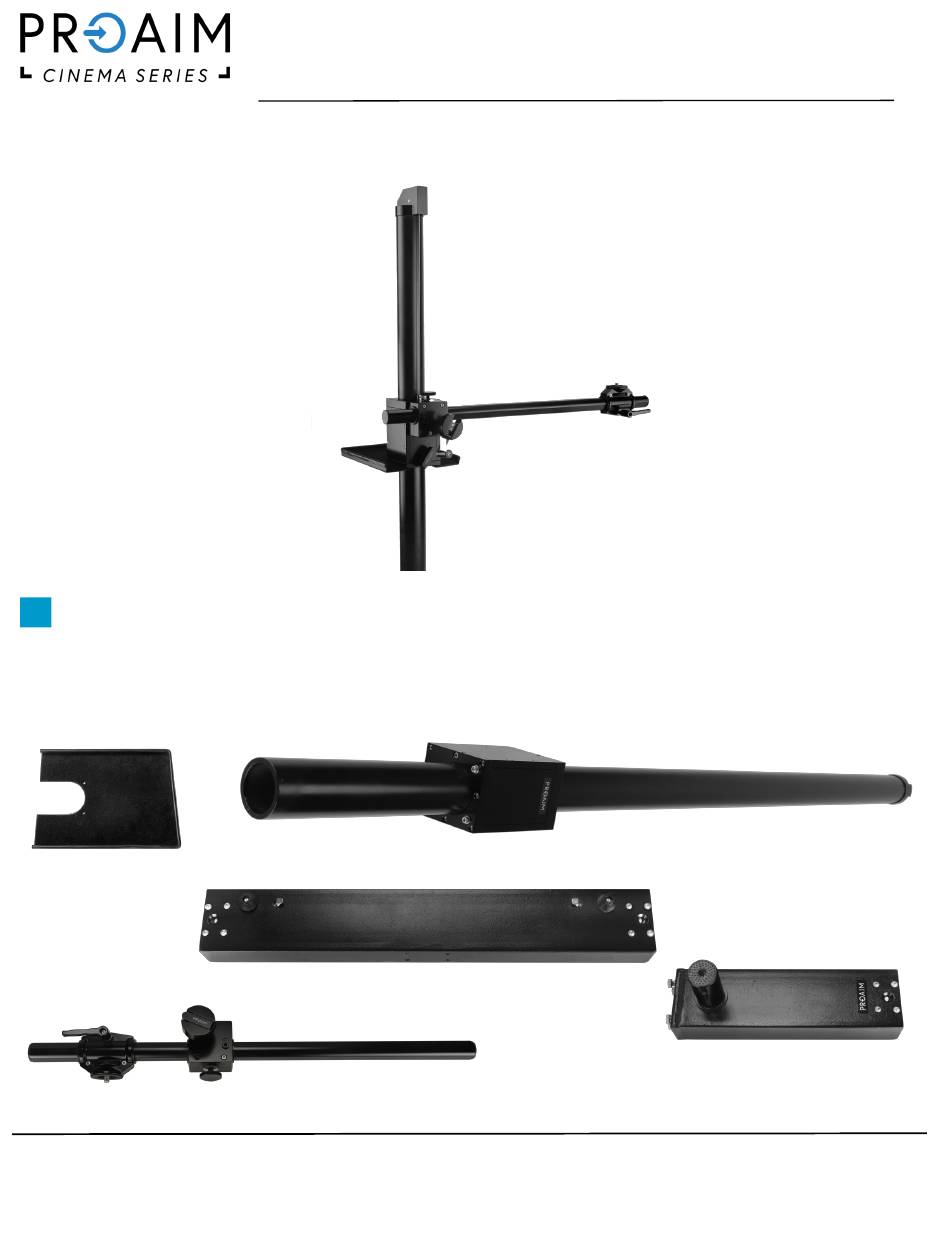

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is

listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

Cam Tower Stand w/ Counterbalance

(P-CTST-01)

A s s e m b l y M a n u a l

Platform Section-2 with Locking Pivot Wheels

statutes or in writing by the Publisher.

Cam Tower Stand w/ Counterbalance

Platform Section -1 with

Locking Pivot Wheel

Table of Contents

Need help?

Do you have a question about the CINEMA Series and is the answer not in the manual?

Page 1 Cam Tower Stand w/ Counterbalance (P-CTST-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 1x Spanner (Size:-17mm) 2 x Screws 2x Allen Key T-Type (Size:-3/16”,4mm) Proaim Cam Tower Stand w/ Counterbalance Setup Platform Section -1 with Locking Pivot Wheel • Loosen all the screws of the platform section-1, as shown in image. • Now all the screws have been removed.
Page 3 • Now make it stand upright on its wheels. Cam Tower Stand w/ Counterbalance • Now mount the tower stand on the platform rod. • Secure the tower stand with the help of provided Allen key. Camera Support Platform • Attach the support platform to the counter balance column of the Cam tower stand.
Page 4 Accessory Tray • Now place the accessory tray with the counter balance column, as shown in the image. • Add screws to the accessory tray and secure it with the Allen key. • The tray is now properly attached. Camera Support Platform •...
Page 5 Open the knob of the counterbalance to ad- just the height of the support platform and secure it by closing the knob back again. YOUR PROAIM CAM TOWER STAND W/ COUNTERBALANCE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase.
