Summary of Contents for PROAIM Cinema Series

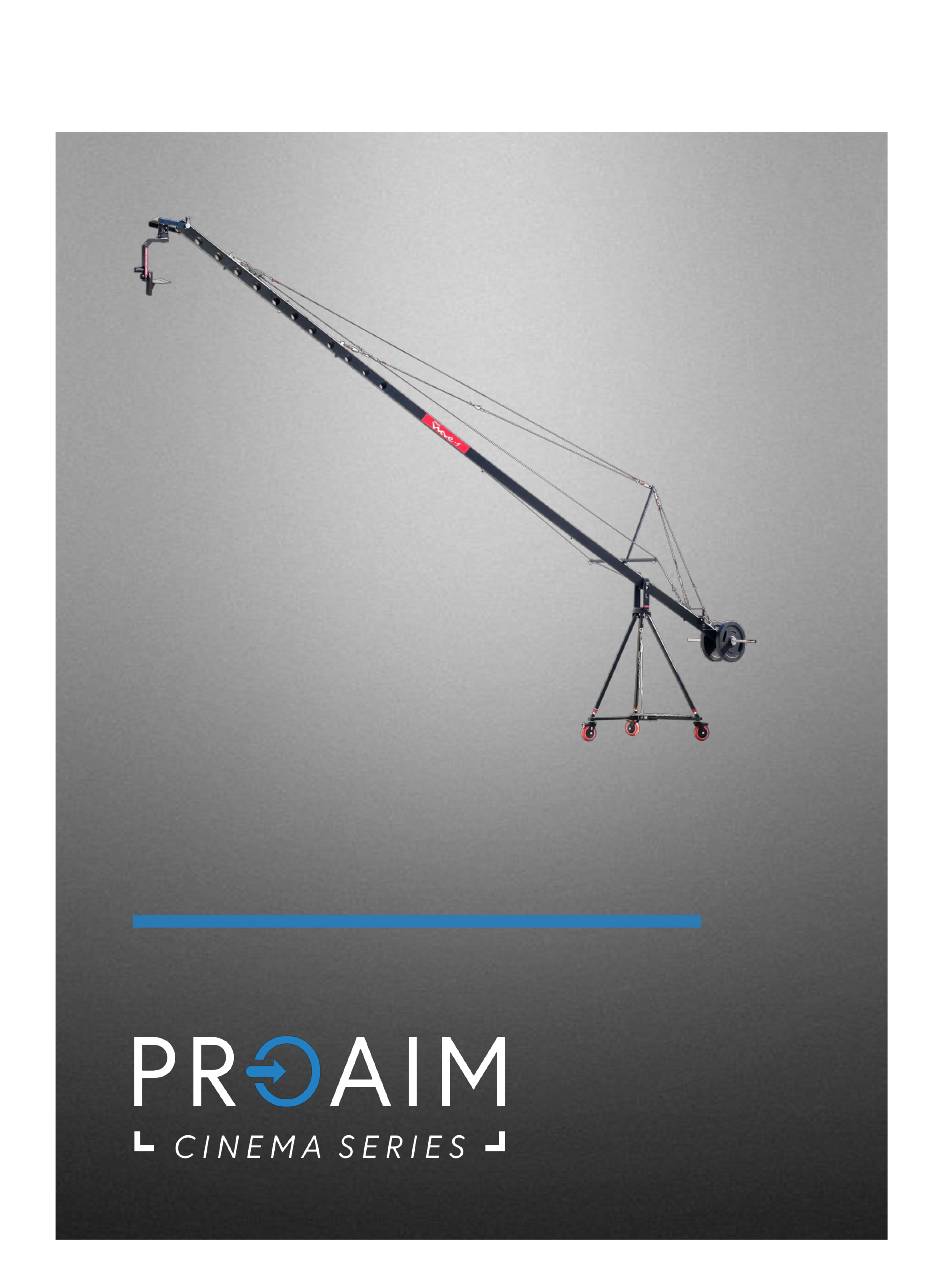

  • Page 1 Breeze Film Shooting Equipment (P-W5P-BRZ) Instruction Manual...
  • Page 2 At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
  • Page 3 Proaim family. By purchasing your Proaim Breeze film Shooting Equipment, you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do.
  • Page 4 Introduction Proaim unveils its Wave-5P 24ft Breeze Package, driven with technicalities for modern video shooting. The crane jib uses triangular aluminum tubing for lightweight design and yet maintains the strength and rigidity. The arm connecting bars securely fits into another one with top screw that guarantees its strength and reliability.
  • Page 5 Packaging Material of Box-2  D– 37 Dolly  Dolly platform Packaging Material of Box-3  Head Platform  1st jib section—6th section Packaging Material of Box-4  14.5ft Red cables  6.7ft Red cable  3.8ft red cable  2.4ft red cable ...
  • Page 6 Packaging Material of Box-5  Sr. Pan Tilt Head  Joystick Control  Joystick Cap  Universal Adapter  Adapter  7 meter XLR cable  3 meter XLR cable  Fasteners Assembling  Take out the dolly from bag ,and to extend the legs pull out on each leg until it reaches to joining connections and secure with the bolts as shown below .
  • Page 7  Set the position of wheels and lock wheels with provided lever which allows you to have stable shoots.  Attach dolly platform to D-37, screw in the allen bolts to desired positions and tighten all the connections with the help of allen key. ...
  • Page 8  Detach Locking clamp from central fork, mount central fork to tripod bowl, again attach Locking clamp for secure connection. Locking clamp  To add stability to your Jib, attach wire tensioner with hook on Locking clamp, then attach safety chain with hook on D-37 dolly and attach other part with wire tensioner as shown below.
  • Page 9 ASSEMBLING JIB SECTIONS  Install the 5th Section to the rear of the vertical pivot point through bolt, washers and nut. Tighten the nut properly to secure the section.  Slide in (6th) section to the rear to join the 5th section. Install the Allen screws to the joining holes of both the sections and tighten.
  • Page 10 ASSEMBLING CABLE GUIDE AND ROD SUPPORT  Attach cable guide to cable guide clamp on 5th section properly. Loosen the bolts on cable guide clamp in order to attach cable guide support rod to it. Retighten the bolt. Cable guide Support rod ...
  • Page 11 ATTACHING HOOKS  Attach big hooks to provided hook slots on all sections of the jib as shown below.  Attach 2 big hooks on both slots on cable guide. Then attach two extra hooks to big hook that is attached to front side and two hooks to hook that is attached to back side.
  • Page 12  Now attach 14.5ft (cable code: Red) cable to the hook attached to 1 section of jib. Cable Code: (Blue)  Then attach the 17.5ft cable from 1st section hook to the end hook of section 6 (2nd slot) along with wire tensioner ...
  • Page 13  Now connect 9.7ft cable (cable code: blue) with the hook on section 3 of jib & attach it to the hook on section 6 (slot 2)of the jib  Align the cable to the cable guide from side and adjust the cable with help of wire tensioner .
  • Page 14 Cable code: Red  Attach 3.8ft cable (cable code: Red) to same hook on cable guide and another end with hook on 2nd slot of rear section (6 section) as shown below.  Now attach one end of 2.4ft cable (code: Red) to hook on back side of cable guide and another end to hook on 1st slot on rear section (6 section) &...
  • Page 15  Attach the Pan Tilt Head with the Jib. There are 4 mounting holes on the Pan Tilt Head as well as the jib Plate. Align the holes and attach it with the screws. Tighten the wing nuts to secure properly. ...
  • Page 16  Retighten the knob to ensure slip free connection.  Attach weights (not supplied) to both ends of weight bar, secure with the help of closers.  Loosen the knob on rear section, remove closers from weight bar and insert it to slot on rear section.
  • Page 17 Loosen the knob on joystick control in order to attach it to weight bar.  Attach another end of cable attached to spin pan tilt head to joystick control connections . YOUR PROAIM BREEZE FILM SHOOTING EQUIPMENT ALL DRESSED UP AND READY TO GO (SHOWN WITH OPTIONAL ACCESSORIES)
  • Page 18 WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual. Please note that we will not cover any shipping costs for returning the product to us.
