PROAIM CINEMA Series Assembly Manual

Hard mount kit for stabilizer arm

Hide thumbs Also See for CINEMA Series:

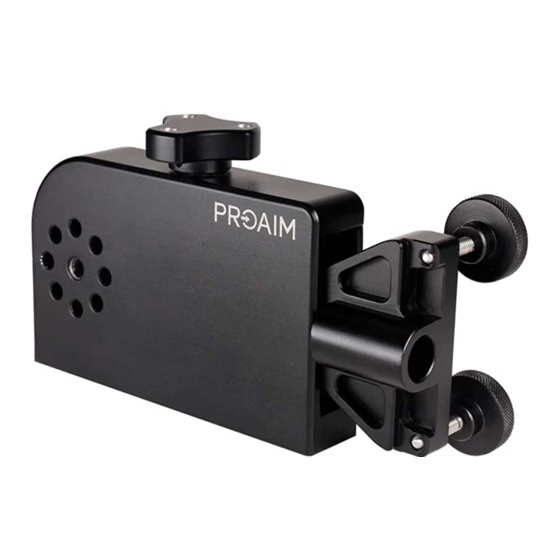

Hard Mount Kit for Stabilizer Arm

(P-HMK-01)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Mitchell Male Plate

Hard Mount Wrench

Hard Mount

Sturdy Clamp

38 mm Bush

Allen Key (5/16)

3 x screws

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the CINEMA Series and is the answer not in the manual?

Page 1 Hard Mount Kit for Stabilizer Arm (P-HMK-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Hard Mount Setup Attaching Hard Mount with Rod/Scaffold Pole  The Hard Mount adjusts to 42-50 mm diameter rods with Sturdy Clamp. If you want to clamp it with a 38mm rod, then insert 38mm Bush between the Clamp and attach it with rod and tighten the knob properly.
Page 3 Follow the same process for arm connector. Attach your Stabilizer arm, in provided arm connector and tighten the knobs properly. YOUR PROAIM HARD MOUNT KIT FOR STABILIZER ARM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
