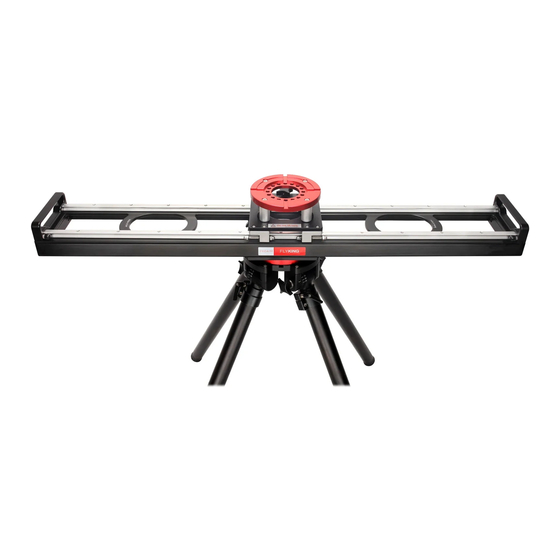

Flyking Bowl Camera
Slider + Flight Case
(SL-FLKB)
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CINEMA Series and is the answer not in the manual?

Questions and answers

Related Manuals for PROAIM CINEMA Series

Summary of Contents for PROAIM CINEMA Series

  • Page 1 Flyking Bowl Camera Slider + Flight Case (SL-FLKB) Instruction Manual...

  • Page 2: Table Of Contents

    At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.

  • Page 3: Foreword

    Proaim family. By purchasing your Proaim Flyking Precision Camera Slider (Bowl Mount), you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do. Our mantra of continuous improvement has been the guiding principle of how we conduct our business since day one.

  • Page 4: Introduction

    Introduction Flyking Precision Camera Slider (Bowl Mount) is Versatile, Quick to Set-up, Well-built, virtually Maintenance Free and totally Field Ready. It is One Slider for All Cameras, no matter how big or small the camera is. The camera platform slides on Metalon-covered 8 precise ball bearings for soundless operation.
  • Page 5 What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

  • Page 6: Safety Hints

    Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT SERIOUS DAMAGE TO THE TRACK! NEVER USE THE TRACK IN SAND, DIRT, CAUSTIC, OR SALT WATER ENVIRONMENTS! This will cause irreparable damage to the bearings and rails, requiring complete replacement! DO NOT OVERTIGHTEN CARRIAGE BRAKE! Needlessly over tightening the carriage brake can cause misalignment and severely damage the roller bearings!

  • Page 7: Assembling

    Assembling with Bowl Tripod Stand  Remove the bolt from Hub Locking Knob, and insert into the bottom of slider by twisting it.  Mount the Slider on 100mm Tripod Stand (Not Included) and tighten Hub Locking Knob to secure it on stand. ...
  • Page 8 For 360° Rotation of Slider, loosen the black knob as shown in image.  Now affix your Bowl Mount Fluid Head (Not Included) on Slider and secure it properly. YOUR PROAIM FLYKING CAMERA SLIDER (BOWL MOUNT) ALL DRESSED UP AND READY TO GO!
  • Page 9 Assembling without Bowl Tripod Stand NOTE: Mount the Slider on any stand with 3/8”-16 thread.  Attach Quick Release Plate of Tripod Head with 3/8” -16 thread, onto the end foots of Slider.  Now mount the Slider on Tripod Head and lock it properly to ensure a secure connection.
  • Page 10 Attaching with C-Stand  Directly mount the Slider onto C–Stand (Not Included), without any Quick Release plate. Attaching the End Feet  Attach each of the two Cross Bars on each side of Slider and tighten them accurately with allen key. ...
  • Page 11  Loosen the red knob at End Feet to adjust the height, according to your setup requirement YOUR PROAIM FLYKING BOWL CAMERA SLIDER ALL DRESSED UP AND READY TO GO!

  • Page 12: Warranty

    WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual. Please note that we will not cover any shipping costs for returning the product to us.

This manual is also suitable for:

Flyking bowl camera slider + flight case
