Cranked Telescopic Bazooka (BZ-CRNK-01)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Telescopic Bazooka

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the CINEMA Series and is the answer not in the manual?

Page 1 Cranked Telescopic Bazooka (BZ-CRNK-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Telescopic Bazooka All rights reserved.
Page 2 Cranked Bazooka Setup The Crank lever is foldable. You can unfold • it when it is in use.  Mount the Cranked Bazooka onto the Euro/ Elemac mount dolly turnstile. Tighten the knob to secure Bazooka.  Loosen the Euro mount knob and turn the crank lever to increase the height of Bazooka according to your requirement.

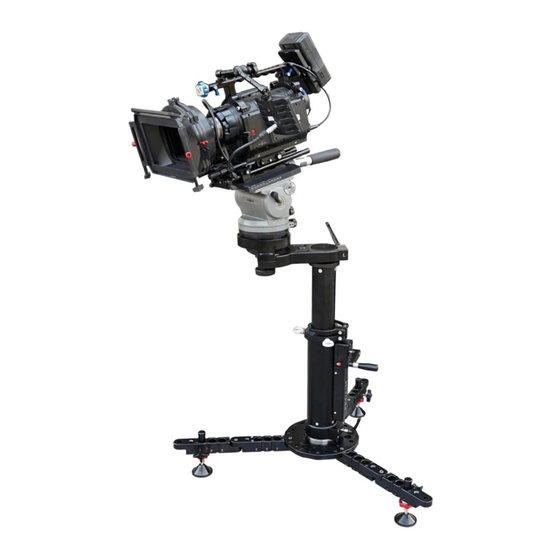

Page 3 YOUR PROAIM CRANKED TELESCOPIC BAZOOKA, ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
