PROAIM CINEMA Series Assembly Manual

Camera vibration isolator arm

Hide thumbs Also See for CINEMA Series:

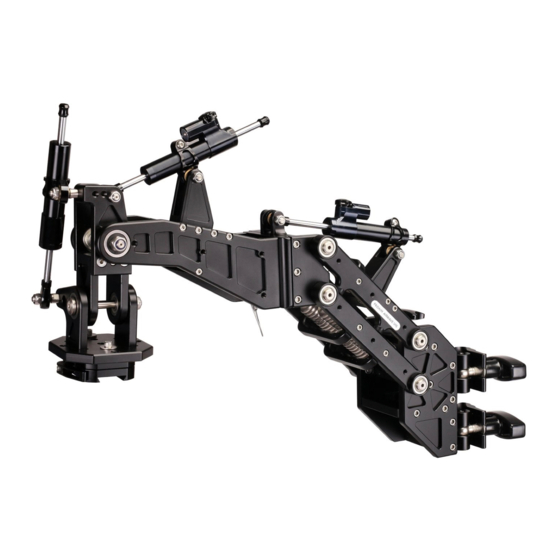

Airwave V15 Camera Vibration Isolator Arm

(VI-ARWV-15)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Ronin-Plate

Airwave V15 Camera Vibration

L-Plate

Isolator Arm (Part 1)

Isolator Arm (Part 2)

Flight case

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the CINEMA Series and is the answer not in the manual?

Page 1 Airwave V15 Camera Vibration Isolator Arm (VI-ARWV-15) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Airwave V15 Setup  Loosen the knob on the clamps of 1st part of the arm and attach the arm to the Pole.  Tighten the clamps appropriately to secure the arm.  Attach the 2nd part of the arm to the 1st part and tighten the knob to secure it properly.
Page 3  Attach the L-Plate with 1st part of the arm and tighten all the Allen bolts using an Allen key. YOUR PROAIM AIRWAVE V15 CAMERA VIBRATION ISOLATOR ARM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.

Airwave v15Vi-arwv-15
