Falcon Pro Stabilized Camera Rickshaw Support

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Handle Support Rod

Rod Dia 42mm Telescopic

Handle

A s s e m b l y M a n u a l

Telescopic Push/Pull

Top Handle Rod Mount

Seat Mount

Bracket

Robust Platform

(RCSW-FLCN-01)

2 x Ratchet knob

Jockey Wheel

with 360° Rotation

with Break

Need help?

Do you have a question about the CINEMA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for PROAIM CINEMA Series

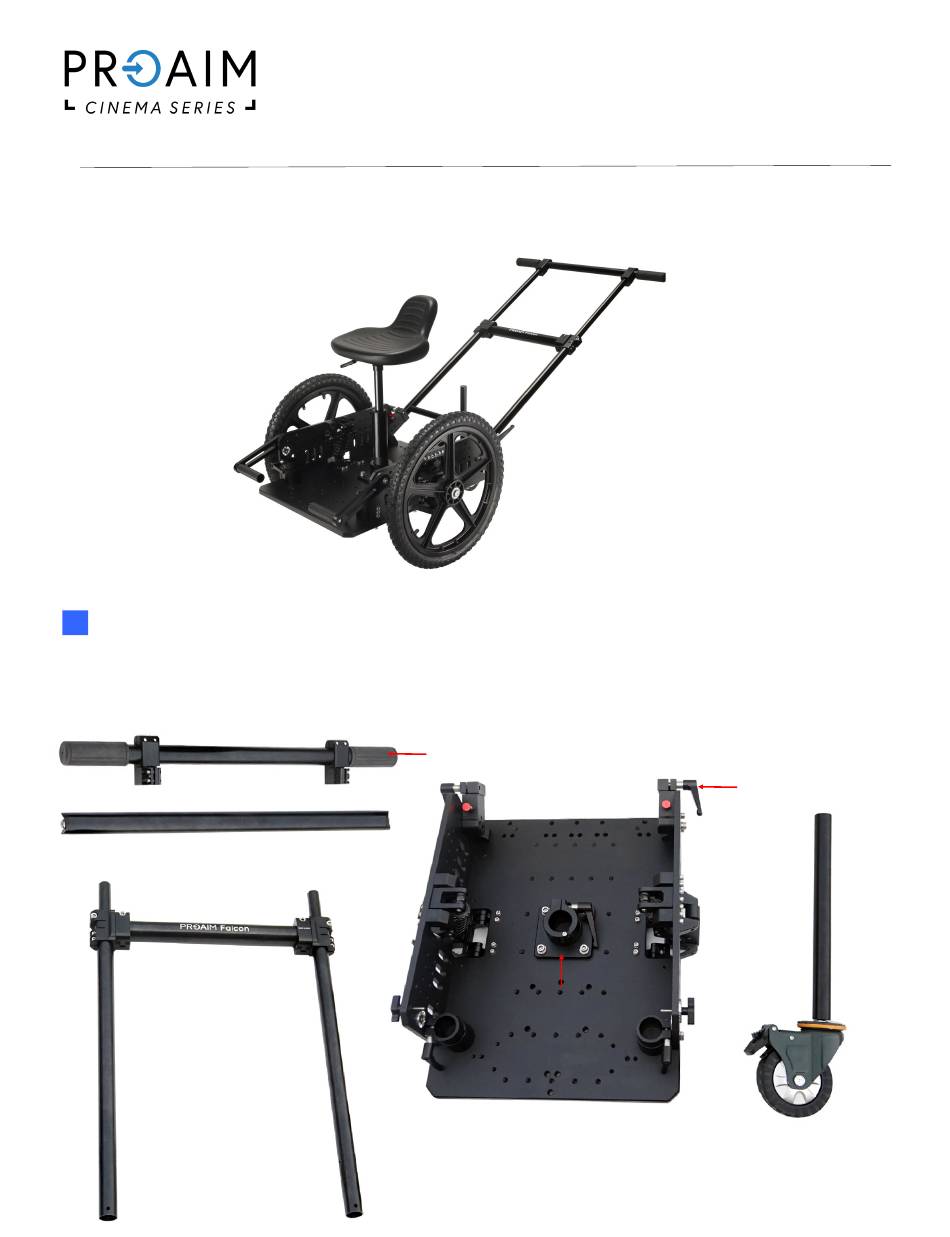

Page 1 Falcon Pro Stabilized Camera Rickshaw Support (RCSW-FLCN-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 2 x Wheels Seat & Seat Post 19mm Rod Adaptor 2 x Bolts Spanner 2 x Foot Rest 2.5mm Allen key 5/16mm 5mm & 6mm Allen key Allen key All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
Page 3 FEATURES Telescopic Push/Pull Handle Easy of Movement Adjustable Operator Seat length range from 32”- 54” allows ease of handling Comfort & Convenience Seat Post Easy to Adjust Position 360-degree movement Seat Break Adjust the Seat Position Robust Platform with Mounting Options Adapts Euro/Elemac Gear Main Chassis &...
Page 4 Falcon Rickshaw Setup • The Rod adapter already has four bolts. Loosen and remove them with the help of an Ellen key. • Align the threads of the rod adapter and the robust platform together and secure them with bolts. •...
Page 5 • Insert the bolt into the center hole of the wheel. Then bolt this wheel through 3 holes present on the side of the platform. Repeat the same process on the other side of the platform. • Tighten the bolts using a 19mm spanner to secure the wheels to the platform.
Page 6 • The seat pole has a height adjusting feature so you can easily set your seat up and down. Lock the seat to your desired position using the seat break. • Using a 2.5mm Allen key, loosen the bolt of the handle support rod and remove it. Align the handle support rod thread with the thread on the telescopic chassis rod.
Page 7 Insert the footrest by aligning it with the rickshaw platform thread. Then, secure it correctly with the footrest knob, as shown in the picture. YOUR PROAIM FALCON PRO STABILIZED CAMERA RICKSHAW SUPPORT ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
Page 8 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
