６ Advanced Operation

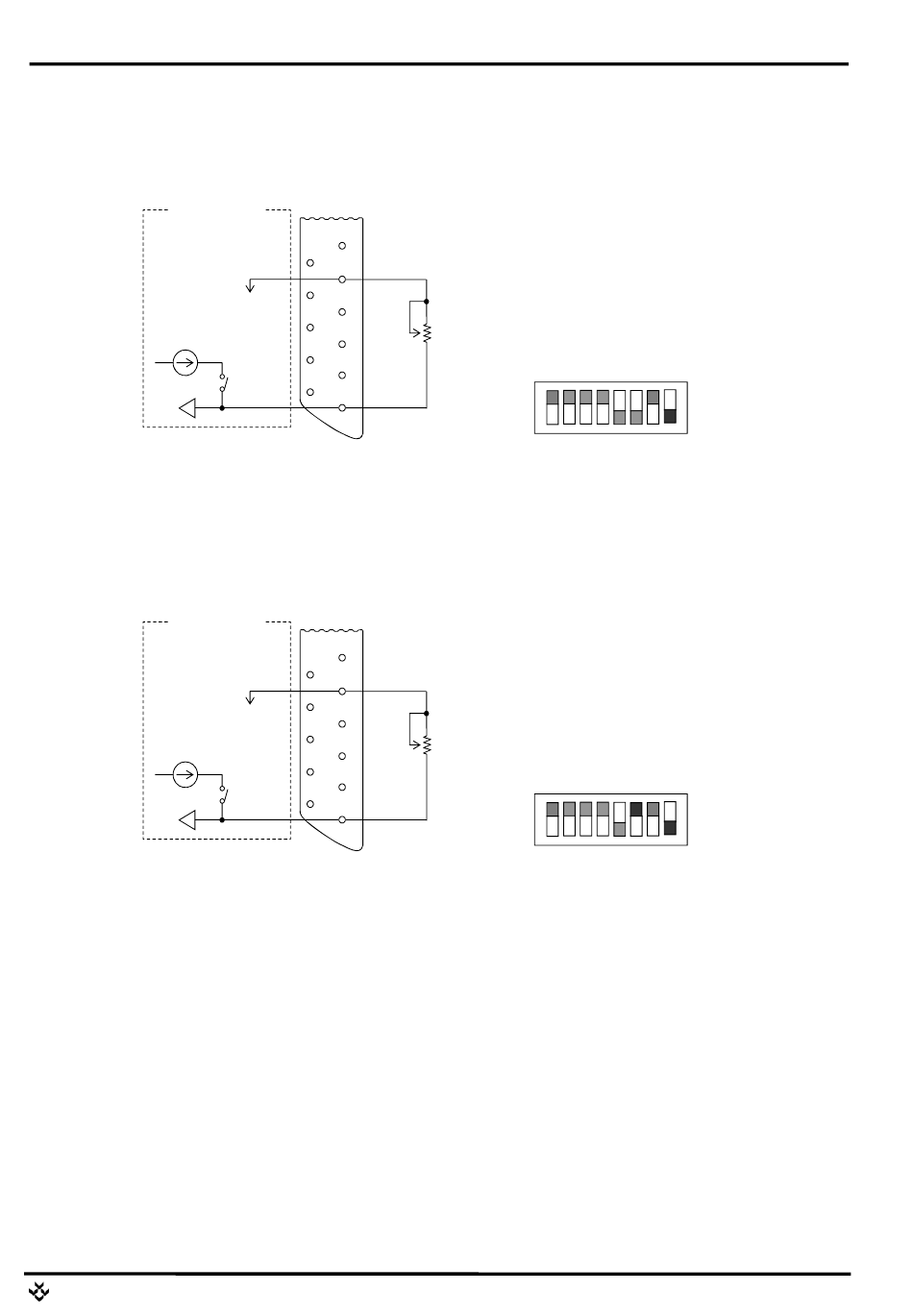

６ - ５ - ３ Setting the voltage program with external resistance
External resistance can control the output voltage.
Turn SW1-1 ON.
(Resistor 0 to 10k Ω for 0 to rated output voltage)
Power supply unit
Internal circuit
-
+
1mA
６ - ５ - ４ Setting the voltage program with external resistance
External resistance can control the output voltage.
Turn SW1-1 ON, SW1-3 OFF.
(Resistor 0 to 5k Ω for 0 to rated output voltage)
Power supply unit
Internal circuit
-
+
1mA
MATSUSADA Precision Inc.
TB1
5
-S
(
)
common
1
TB1
5
-S
(
)
common
1
User connection
0-10k Ω
8 7 6 5 4 3 2 1
User connection
0-5k Ω
8 7 6 5 4 3 2 1
44
SW1
ON
SW1
ON
