３ Outputting

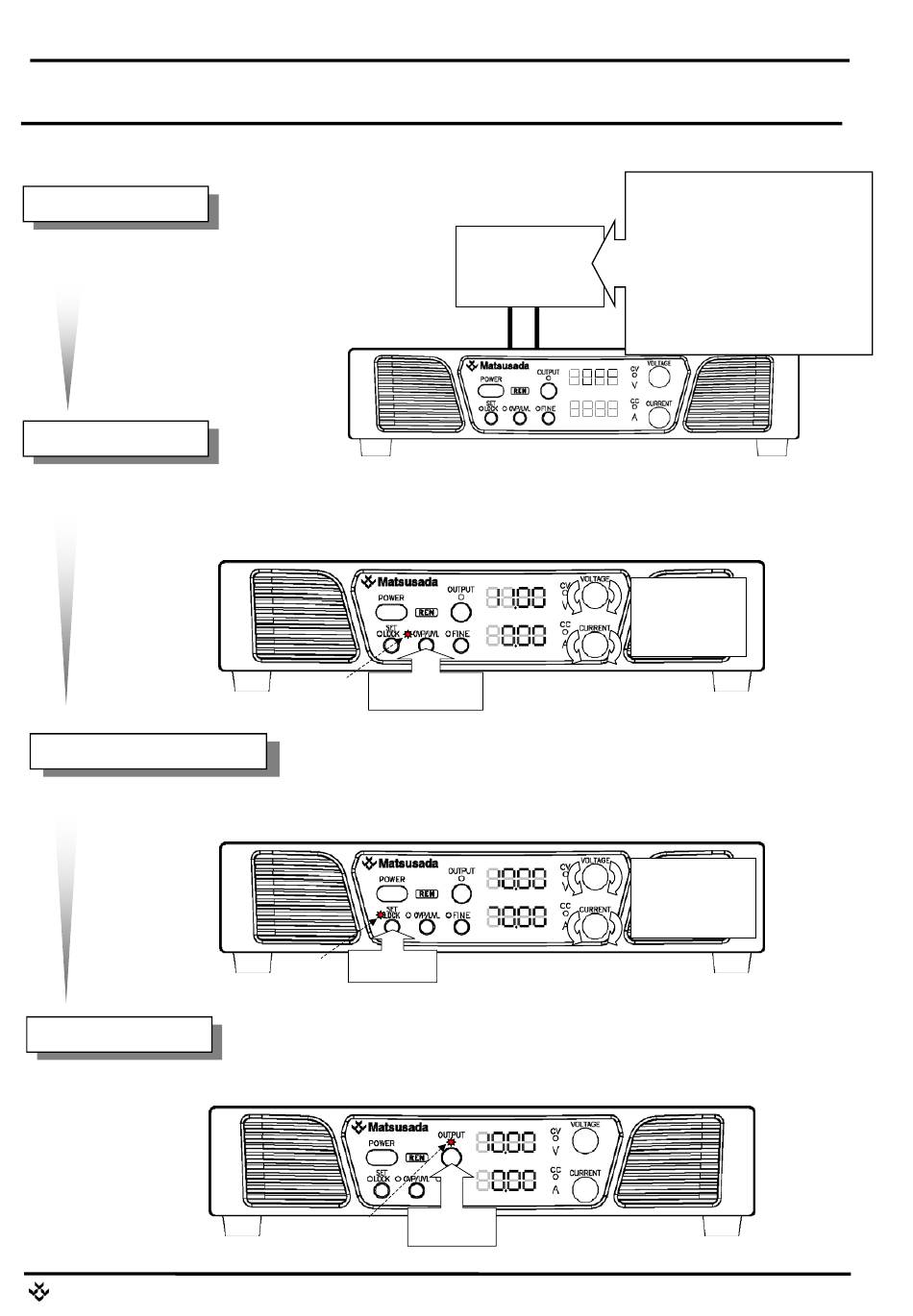

This section describes simple operation from power on to output.
Connection to load
+/- output terminals on the rear panel can be used.
Set OVP / UVL
Set OVP values to the maximum.
Set UVP values to the minimum.
Set voltage/current values
Set voltage/current values to output.
Start the output
Press the OUTPUT switch to start the output.
MATSUSADA Precision Inc.
Press down
OVP/UVL LED
OVP/UVL
Light on
Press down
SET/LOCK LED
SET/LOCK
Light on
Press down
OUTPUT LED
OUTPUT
Light on
18
* When connecting the load,
be sure to check that the
OUTPUT is OFF and no
output is made (the OUTPUT
Load
LED is turned off / Voltage
meter display "OFF").
Otherwise, the load to be
connected may be damaged.
OVP setting
(voltage setting dial)
UVL setting
（current setting dial）
Output voltage setting
（voltage setting dial）
Output current setting
（current setting dial）
