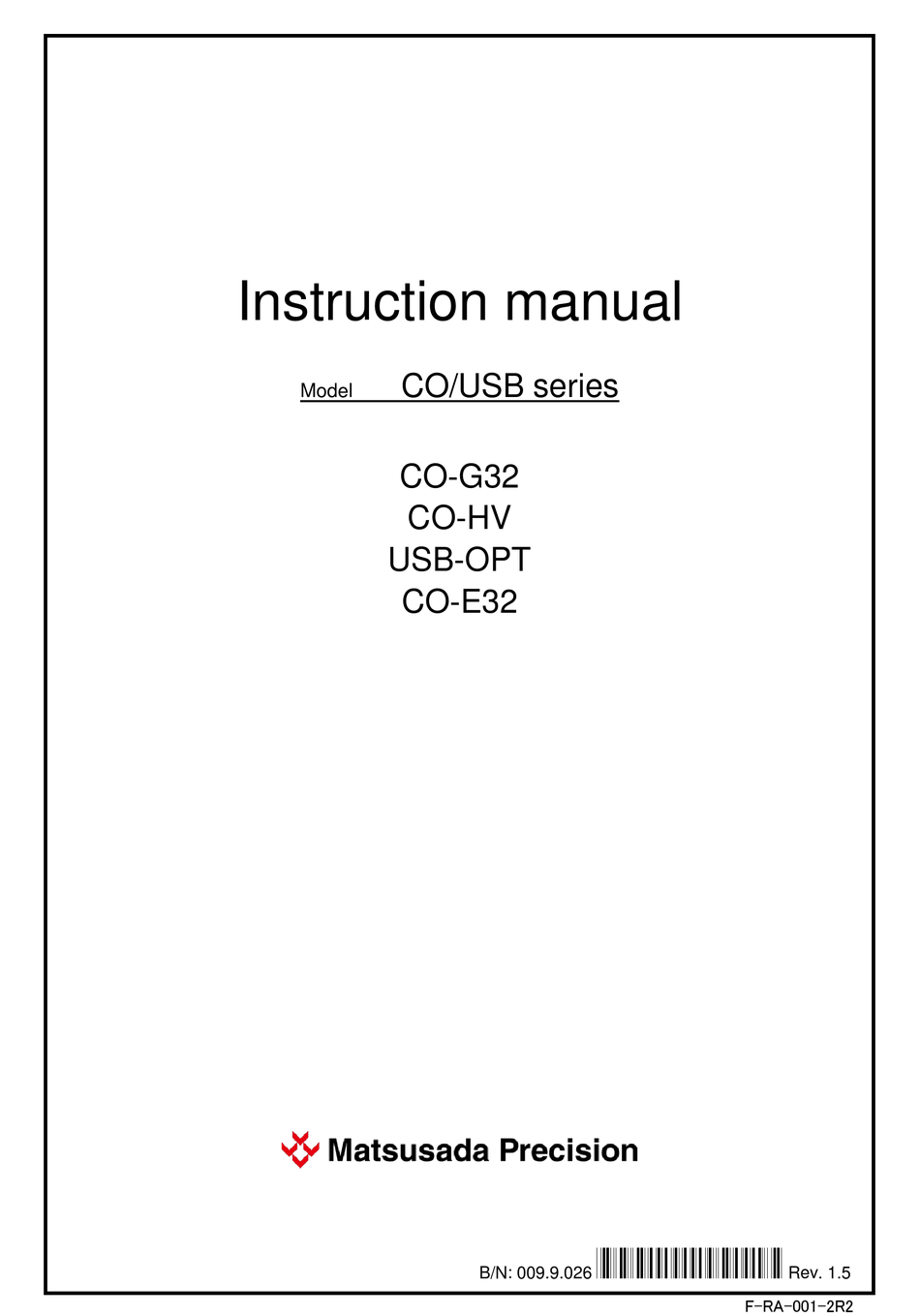

- Page 1 Instruction manual CO/USB series Model CO-G32 CO-HV USB-OPT CO-E32 *009.9.026* B/N: 009.9.026 Rev. 1.5 F-RA-001-2R2...
- Page 2 ◆ No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of Matsusada Precision. ◆ No patent liability is assumed with respect to the use of the information contained herein.
- Page 3 Bistable push button switch for preventing electric shock) Indicates the possible danger of death if you Bistable push button switch drink it and burns or blindness if it attaches. Indicates the possible danger of exposure Alternative Current to radiation. CO series...
- Page 4 In this case, do not open the case or panel of the product and contact us. Designed for indoor use. Use the product indoors only, not outdoors. Even indoors, do not use it if there is a possibility of water leakage, flooding, or snow covering. CO series...
- Page 5 In order to avoid electric shock, ground the terminals to discharge using a short-circuit grounding apparatus and check the voltage again. The terminals here mean all terminals like input and output terminals and terminals for communications and remote controls. CO series...
- Page 6 It requires to be replaced at regular intervals to extend the lifetime. For the replacement, contact us. (It requires a replacement charge separately. Do not replace it by yourself, as there is a risk of electric shock.) CO series...
-
Page 7: Table Of Contents
CO-OPT2-25, CO-OPT2-9, CO-OPT4-25, and CO-MET4-25 ............. 12 3-1-3 CO-K12 cable ..........................13 Connecting Interface ........................... 14 3-2-1 Connecting CO-G32 and CO-HV ....................14 3-2-2 Connecting CO-OPT2-9/CO-OPT2-25/CO-OPT4-25 and CO-HV ..........15 3-2-3 Connecting USB-OPT and CO-HV ....................16 3-2-4 Connecting CO-E32 and CO-HV ....................17 CO series... - Page 8 LAN Communication Between CO-E32 and CO-HV ................32 ES Series ............................. 33 AU Series ............................. 34 AF Series ............................. 35 W Series .............................. 36 EQ Series............................. 37 7 Commands ..............................38 Command List ............................38 Supported Commands ......................... 39 Command Descriptions ........................40 CO series...
-
Page 9: Introduction
1 Introduction Introduction Thank you for purchasing our CO series. We have taken all possible measures to control the quality of our products. In order to get the full benefit of its superior performance and use it long and safe, handle it properly according to this manual. -
Page 10: Handling Precautions
Storage humidity (no condensation) (no condensation) (no condensation) Altitude 2,000m or less 2,000m or less 2,000m or less OVCⅡ: Energy-consuming equipment supplied from fixed equipment. Pollution degree 2: Only nonconductive pollution occurs except for temporary conductivity due to condensation. CO series... -
Page 11: External View
Unit number and upper connection device SRQ LED setting switch TLK LED CO-OPT cable connection connector (IN) LSN LED CO-OPT cable connection connector (OUT) POWER LED Control cable connection connector （D-sub25 socket) POWER ON/OFF switch GROUND terminal AC input CO series... -
Page 12: Co-E32
2 External View CO-E32 Front Panel Rear Panel POWER LED LAN reset switch POWER ON/OFF switch LAN connection connector CO-OPT cable connection connector (OUT) GROUND terminal AC input USB-OPT USB connection connector POWER LED CO-OPT cable connector CO series... -
Page 13: Co-Opt2-25
2 External View CO-OPT2-25 CO-OPT2-9 CO-OPT4-25 CO-MET4-25 D-Sub 25-pin connector DTE-DCE selector switch CO-OPT cable connector D-Sub 9-pin connector DC input terminal CO-M cable connection connector POWER LED CO series... -
Page 14: Co-Met2-25
2 External View CO-MET2-25 2-10 CO-MET2-9 D-Sub 25-pin connector CO-M cable connection connector D-Sub 9-pin connector CO series... -
Page 15: Pin Assignment Of Control Cable Connection Connector
Output current setting CH1, ICN Overvoltage protection setting CH2, OVP Voltage monitor MN1, VM Current monitor MN2, IM 4, 21 Output ON/OFF signal Cutoff reset signal Remote/local mode setting REN/GTL Error state CV state CC state 5, 6, 10 COMMON CO series... -
Page 16: Dimensions
2 External View 2-12 Dimensions 2-12-1 CO-G32/CO-E32/CO-HV ※ Protrusions not included. ※ Unit: [mm] CO series... -
Page 17: Usb-Opt
2 External View 2-12-2 USB-OPT 2-12-3 CO-OPT2-25 2-12-4 CO-OPT2-9 ※ Protrusions not included. ※ Unit: [mm] CO series... -
Page 18: Co-Opt4-25
2 External View 2-12-5 CO-OPT4-25 2-12-6 CO-MET4-25 2-12-7 CO-MET2-25 ※ Protrusions not included. ※ Unit: [mm] CO series... -
Page 19: Co-Met2-9
2 External View 2-12-8 CO-MET2-9 ※ Protrusions not included. ※ Unit: [mm] CO series... -
Page 20: Connecting
CO-OPT2-25, CO-OPT2-9, CO-OPT4-25, and CO-MET4-25 Here, take CO-OPT2-25 as an example. Insert the output side of the supplied AC adapter into the DC input terminal of this product, and connect the input side of the AC adapter to an AC outlet. CO series... -
Page 21: Co-K12 Cable
3 Connecting 3-1-3 CO-K12 cable The CL-K12 cable has power input harness for the K12-R (12W) series. In accordance with the following, properly wiring. +24V DC input = ORANGE +24V DC input return = BLACK CO series... -
Page 22: Connecting Interface
CO-HV rear panel high-voltage power supply. Therefore, it is recommended CO-OPT cable that the AC input line of the CO series be separated from that of the high-voltage power supply as much as possible. Connectable up to 32 units CO-HV... -
Page 23: Connecting Co-Opt2-9/Co-Opt2-25/Co-Opt4-25 And Co-Hv
Therefore, it is recommended that the AC input line of the CO series be separated from that of the high-voltage power supply as much as possible. -
Page 24: Connecting Usb-Opt And Co-Hv
Therefore, it is recommended Connectable up to 32 units USB cable that the AC input line of the CO series be separated from that of the high-voltage power supply as much as possible. CO-HV Control cable AU series rear panel... -
Page 25: Connecting Co-E32 And Co-Hv
Therefore, it is recommended that the AC input line of the CO series be separated from Connectable up to 32 units that of the high-voltage power USB cable supply as much as possible. -
Page 26: Functional Description
Setting output ON/OFF Measuring output voltage and output current (12-bit) When the output of the power supply unit or the unit itself is turned off, the CO series issue an SRQ. Controlling up to 32 power supply units with one GPIB address. -
Page 27: Setting The Unit Number And The Upper Connection Device
-LGob option for our power supply units CO-HV Note: Since these settings are loaded when the unit is started up, be sure to set them while the unit is turned off. If not, the settings will not be reflected until the unit is rebooted. CO series... -
Page 28: Setting Co-Opt2-9/Co-Opt2-25/Co-Opt4-25
(PC, etc.) to be used. If the switch is not set correctly, communication will not be available. (Data output) (GND) (Data input) (Data output) (GND) (Data input) Typ. pin assignment of a controller (PC, etc.) Typ. pin assignment of a controller (PC, etc.) （D-Sub 25-pin FEMALE） (D-Sub 9-pin MALE) CO series... -
Page 29: Communication Parameters
Pin assignment of CO-OPT4-25 （D-Sub 25-pin MALE） 4-4-3 Communication Parameters Baud rate Asynchronous 9,600 [bps] (Fixed) Character length 8 [bits] Stop bit 1 [bit] Parity None Flow control None 4-4-4 Delimiter The delimiter is CR (0D ) and fixed. CO series... -
Page 30: Setting Usb
In order to initialize the network, turn the power on while pressing the "LAN reset switch" on the CO-E32's rear panel. The network address and other settings will be set to the initial values above. LAN reset switch CO series... -
Page 31: Network Settings Using The Web Manager
The setting screen will appear. ※ If the proxy setting is enabled in your browser, deactivate it, or exclude the set IP address. ※ When Internet Explorer 11 is used, add the IP address to the compatibility view setting. CO series... - Page 32 Setting "Enable" enables the Dynamic Host Configuration Protocol (DHCP) to DHCP automatically assign IP addresses. Setting 'Enable' enables IP creation in the address range of class B subnet AutoIP 169.254.x.x. DHCP Host Name Name the host providing IP addresses. CO series...
- Page 33 3. Set the "IP Address", "Subnet Mask", "Default Gateway", and "DNS Server" according to your network status. 4. Click the "OK" button when you have completed the settings. 5. Click the "Apply Settings" button in the setting screen. CO series...
-
Page 34: Delimiter
2. Select "Auto Negotiate" in "Ethernet Configuration". 3. Click the "OK" button when you have completed the settings. 4. Click the "Apply Settings" button in the setting screen. 4-6-5 Delimiter The delimiter is CR (0D ) and fixed. CO series... -
Page 35: Program
Set the output voltage of all power supply units to the maximum rating. 2) #AL SW1 Turn on the output of all power supply units. Remarks: Commands supporting the multi-command are CH0, CH1, VCN, ICN, SW, RST, REN, and GTL. CO series... -
Page 36: Characters Used For Commands
(The delimiter set in [4-2 Setting GPIB Address and Delimiter]) RS-232C/RS-485 ▶ ） CR（0D connection ▶ ） USB connection CR（0D ▶ ） LAN connection CR（0D When a command requesting no response is transmitted, nothing is returned. Example of receiving "STS" command: "#1 CO RM" CO series... -
Page 37: Digital Operation Check
Users using the AF series, refer to [6-7 AF Series] to confirm each function. Users using the W series, refer to [6-8 W Series] to confirm each function. Users using the EQ series, refer to [6-9 EQ Series] to confirm each function. CO series... -
Page 38: Rs-232C/Rs-485 Communication Between Co-Opt2-9, Co-Opt2-25, Co-Opt4-25, And Co-Hv
Users using the AF series, refer to [6-7 AF Series] to confirm each function. Users using the W series, refer to [6-8 W Series] to confirm each function. Users using the EQ series, refer to [6-9 EQ Series] to confirm each function. CO series... -
Page 39: Usb Communication With Usb-Opt And Co-Hv
Users using the AF series, refer to [6-7 AF Series] to confirm each function. Users using the W series, refer to [6-8 W Series] to confirm each function. Users using the EQ series, refer to [6-9 EQ Series] to confirm each function. CO series... -
Page 40: Lan Communication Between Co-E32 And Co-Hv
Users using the AF series, refer to [6-7 AF Series] to confirm each function. Users using the W series, refer to [6-8 W Series] to confirm each function. Users using the EQ series, refer to [6-9 EQ Series] to confirm each function. CO series... -
Page 41: Series
For the CO-HV, the "LSN" LED will blink and then the "SRQ" LED is lit. End the operation of the ES series. Set the POWER ON/OFF switch to OFF. End remote control. Set the POWER ON/OFF switch of CO-G32/CO-E32 and CO-HV to OFF. CO series... -
Page 42: Au Series
For the CO-HV, the "LSN" LED will blink and then the "SRQ" LED is lit. Stop the operation of the AU series. Set the POWER ON/OFF switch to OFF. 10 End remote control. Set the POWER ON/OFF switch of CO-G32/CO-E32 and CO-HV to OFF. CO series... -
Page 43: Af Series
For the CO-HV, the "LSN" LED will blink and then the "SRQ" LED is lit. 10 End the operation of the AF series. Set the POWER ON/OFF switch to OFF. 11 End remote control. Set the POWER ON/OFF switch of CO-G32/CO-E32 and CO-HV to OFF. CO series... -
Page 44: W Series
Interrupt power to the W series. End remote control. Set the POWER ON/OFF switch of CO-G32/CO-E32 and CO-HV to OFF. Note: The door switch (LD) of the W series is short-circuited inside of the "CO-W cable" supplied with the CO-HV. （7 and 17） CO series... -
Page 45: Eq Series
For the CO-HV, the "LSN" LED will blink and then the "SRQ" LED is lit. End the operation of the EQ series. Set the POWER ON/OFF switch to OFF. End remote control. Set the POWER ON/OFF switch of CO-G32/CO-E32 and CO-HV to OFF. CO series... -
Page 46: Commands
Query the setting value of the output voltage. 4４ (percent mode) Setting check ICN? Query the setting value of the output current. (percent mode) Query the setting of the output ON/OFF. Query the setting of the output polarity. SRQ? Query the setting of SRQ. CO series... -
Page 47: Supported Commands
7 Commands Supported Commands Table: Supported commands CO-HV Command Power supplies name K12-R AK/AKP AF/AE (12W) （Yes） （Yes） SW1/0 PL1/0 CH0? （Yes） CH1? VCN? ICN? （Yes） SRQ? CO series... -
Page 48: Command Descriptions
Remarks: Settings greater than three digits are ignored as invalid commands. (Format ex.: 3)) If the number of decimals exceeds 2, only the second decimal place is valid, and the third and subsequent digits are truncated. (Format ex.: 4)) This supports "Multi-command". CO series... - Page 49 Disables remote control of products. Format: Remarks: When receiving this command, the product ignores all commands other than REN, MN1, MN2, VM, IM, and STS. Until receiving the REN command, the product keeps the current settings. This supports "Multi-command". Default: CO series...
- Page 50 Return ex.: 1) IM=100.0 : Monitor value=Max rated current 2) IM=12.34 : Monitor value=12.34% of max rated current 3) IM=25.0 : Monitor value=25% of max rated current Remarks: If the second decimal place is "0", it is omitted. (Return ex. 3)) CO series...
- Page 51 The set value of output current is returned with hexadecimal format, 0000 to FFFF Format: CH1? Return ex.: 1) CH1=FFFFH : Output current is set to max rated current. 2) CH1=7FFFH : Output current is set to a half of max rated current. CO series...
- Page 52 SRQ? command The state of the SRQ issue is returned. Format: SRQ? Return ex.: 1) SRQ ON : Enabled 2) SRQ OFＦ : Disabled When products are connected with RS-232C/RS-485, USB, or LAN, this command will be ignored. CO series...
- Page 53 CO series...
- Page 54 Revision History Rev. No. Rev. Date Revision Contents 2001/04 First edition 2020/08 Applied a new format CO series...
- Page 55 CO series...
