- Page 1 Compact Rack Mount Power Supply REK Series Compact / High power of 5.5kW High power, Versatile Programmable DC power supply series 6V to 650V 2.5A to 600A 1.6kW to 5.5kW (except some models) (except some models) www.matsusada.com...

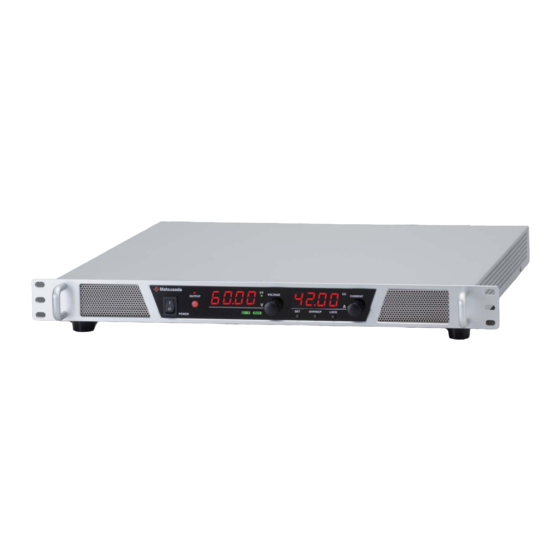

- Page 2 1.6kW to 2.5kW models 3.6kW to 5.5kW models Featuring broad output range and low noise switching configuration REK series is an ideal power supply for a variety of applications. In addition to its ultra slim body, which would not select the installation place, the sophisticated front panel design with smooth dial and individual output meters for voltage and current shall promise comfortable and smooth operation.
- Page 3 Lineup 7kW,10kW models are also available. Please contact our ofiice near you. Ripple Output Voltage Output Current Output Power MODEL (mArms) (mVrms) 0 to 220 1300 REK6-220 0 to 6 0 to 310 1860 REK6-310 1500 0 to 530 3200 REK6-530 0 to 8 0 to 600...
- Page 4 Standard function Sink Current / Sink Current Prevention Function REK series features function to sink current, and enable to decrease the voltage quickly when turning off the output or when control the voltage down, which increase the safety of operation. In case that continuous aging test in short interval, quick voltage fall time increase the efficiency of process.
-
Page 5: Pulse Sequence
New useful functions In addition to standard functions, these features offer many different usage and use in wide variety of applications. Pulse / Ramp sequence, Master follow function(-LDc option) above output control, between A to E is available. A. Pulse Sequence Using the stored voltage and current setting in each memory of a, b and c and multi set function, sequence operation is possible. - Page 6 Functions Sink Current / Sink Current Prevention Function Front Panel nt Panel 11 12 Rear Panel Function setting switch(SW1) Remote sensing Output terminal [ Voltage Control ] Terminal board (more than 100V models) 0 to 0V to 10V OUTPUT Local approx.
-
Page 7: Specifications
Specifications 7kW,10kW models are also available. Input Voltage Input Voltage Input Current Protection Phase Input Current Model Input Current (50/60Hz) 1.6kW 100VAC to 240VAC 1Ø 23A @ 100V Fuse 30A Standard 200VAC to 240VAC 1Ø 16A @ 200V Fuse 30A Standard 2.5kW Fuse 30A... -
Page 8: Master / Slave Control
Connection and Remote control Digital Interface Master / Slave Control Remote Switch ON / OFF Able to one control master-slave operation in The Master / Slave control function allows addition to digital control by USB / LAN(Ethernet) / you to control up to 32 units connected in RS-232C / RS-485 / GPIB parallel from a single unit. - Page 9 There are exhaust holes on rear panel for forced air cooling. Dimensions inch(mm) In case placed in a closed cabinet without extra room, apply additional forced cooling. Busbar output type Terminal board output type 1.6kW, 2.5kW Models 1.6kW, 2.5kW Models Weight 8kg typ.
- Page 10 Operation example REK power supply of same model number can be connected in series or parallel to increase output voltage or current. [caution] [caution] [caution] Parallel operation Series operation Split operation Total output voltage is to be Please keep all the settings Remote switch is up to 250V.
-
Page 11: Technical Note
TECHNICAL NOTE Connection · Operation Connection of load Parallel connection of load · Please use a short lead wire that is sufficiently thick for the connection. Good example Bad example · Please use PVC electric cable (105°C) that can fully tolerate the voltage used. - Page 12 USA/canada : : +81-6-6150-5089 +81-6-6150-5089 other countries other countries : : Customer Inquiry Sheet (REK Series) Please copy this page and above fax number after filling out form below. I would like A quotation An explanation of product A demonststration...
