２ Installation and Operation
２ - ６ - ２ Connection of remote sensing wire
・ Below table indicates the rating of wire when connecting from rear panel terminal.
(VOL Series)
Conformable wire
Allowable range for use
Standard stripping length
Tool for operating the button Screwdriver(shaft diameter φ 3, nose width 2.6)
(VOLJ Series)
Conformable wire
Allowable range for use
Standard stripping length
Tool for operating the button Screwdriver(shaft diameter φ 3, nose width 2.6)

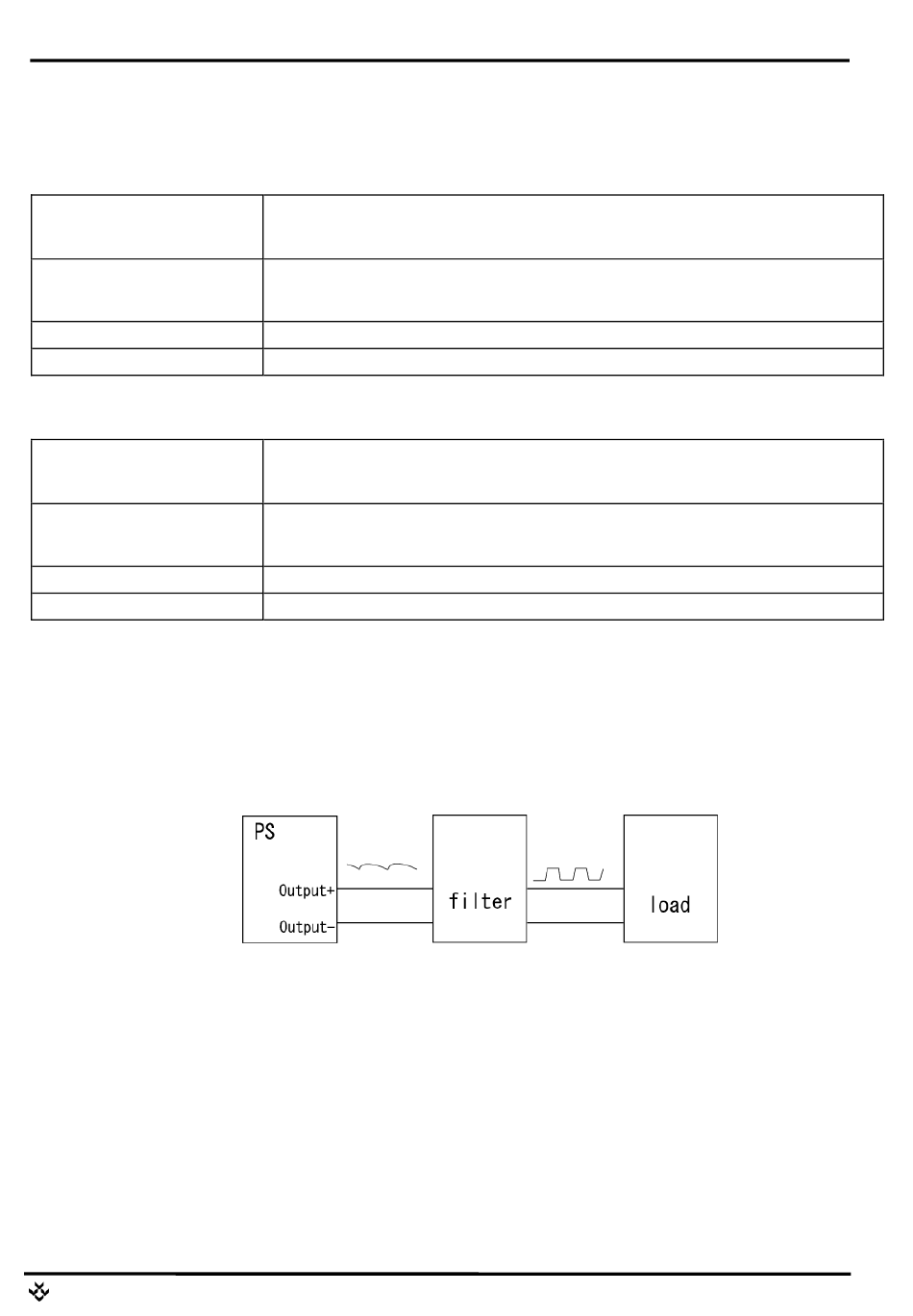

２ - ６ - ３ In case of connecting load which has frequent discharge
When connecting to a load which has large ripple current such as plasma discharge, it could affect the
lifetime of the power supply, and recommend to have a protection such as putting low pass filter between
power supply and load as shown below.
When used for a load which has arc or short circuit of faster than 1 per second without such additional
protection, there is a possibility of smoke or liquid leakage from power supply. In such case contact our
sales office for a solution before operation.
MATSUSADA Precision Inc.
Single wire : φ 1.0(AWG18)
2
Twisted wire : 0.75mm
Single wire : φ 0.4 ～φ 1.0(AWG26 ～ 18)
2
Twisted wire : 0.3mm ～ 0.75mm
10mm
Single wire : φ 0.65(AWG22)
2
Twisted wire : 0.32mm
Single wire : φ 0.32 ～φ 0.65(AWG28 ～ 22)
2
Twisted wire : 0.08mm
9 ～ 10mm
14
(AWG20)Wire diameter φ 0.18 or larger
2
(AWG22 ～ 20)Wire diameter φ 0.18 or larger
(AWG22)Wire diameter φ 0.12 or larger
2
～ 0.32mm (AWG28 ～ 22)Wire diameter φ 0.12 or larger
