HOMCOM A91-132 Instruction Manual page 60

Assembly instructions
26
9

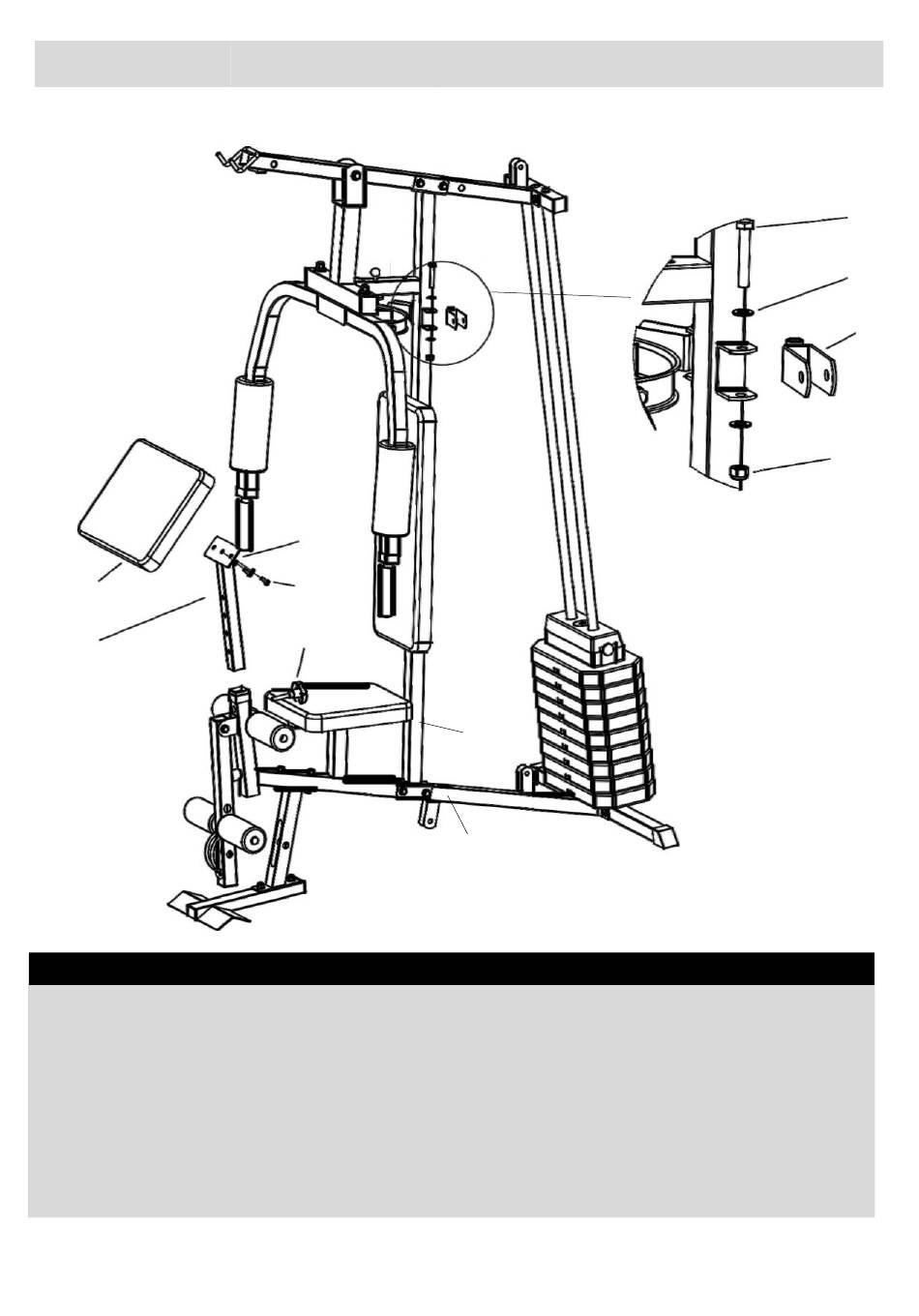

Step 10
Attach 2 × Swivel pulley brackets (12) to the open bracket on the Vertical frame (3). Fix using 2 × M10 bolts
(51), 4 × M10 Washers (61) and 2 × M10 Nuts (63).
Insert the Preacher pad support(9) into the Base frame (1), adjusting to your desired height and fix
with Lock knob(30).
Attach the Preacher pad (26) to the Preacher pad support(9) with M8 Bolt (57)
60
57
30
3
1
16
.
Washers (60)
.
x2
x2
51
61
12
63
