Atlas PV-10PX Installation & Operation Manual

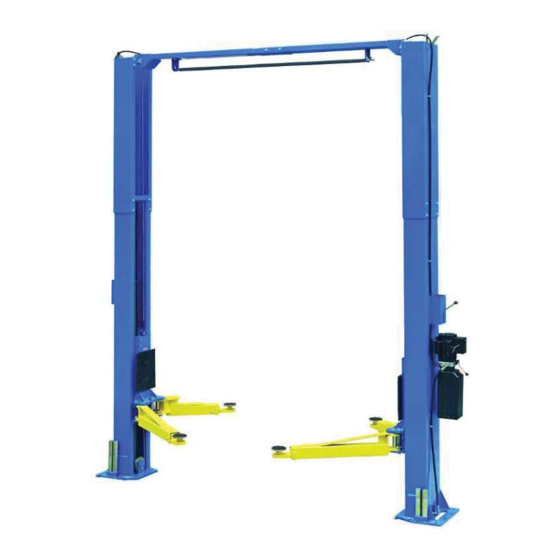

10,000 lb. capacity two-post overhead lift
Hide thumbs Also See for PV-10PX:
Table of Contents

Advertisement

Quick Links

Download this manual
Model: PV10
Revised: 09/29/23
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV-10PX and is the answer not in the manual?

Questions and answers

Arthur Alzamora Sr
May 23, 2025

I purchased the PV-10PX - we set the lift up for high setting on the posts. Which makes the hydraulic lines very tight on the overhead trough. I need atleast a 2 or 3” extension to relieve the tight line. What size is the line so I can get an extension or send me one.

0

Subscribe to Our Youtube Channel

Related Manuals for Atlas PV-10PX

Summary of Contents for Atlas PV-10PX

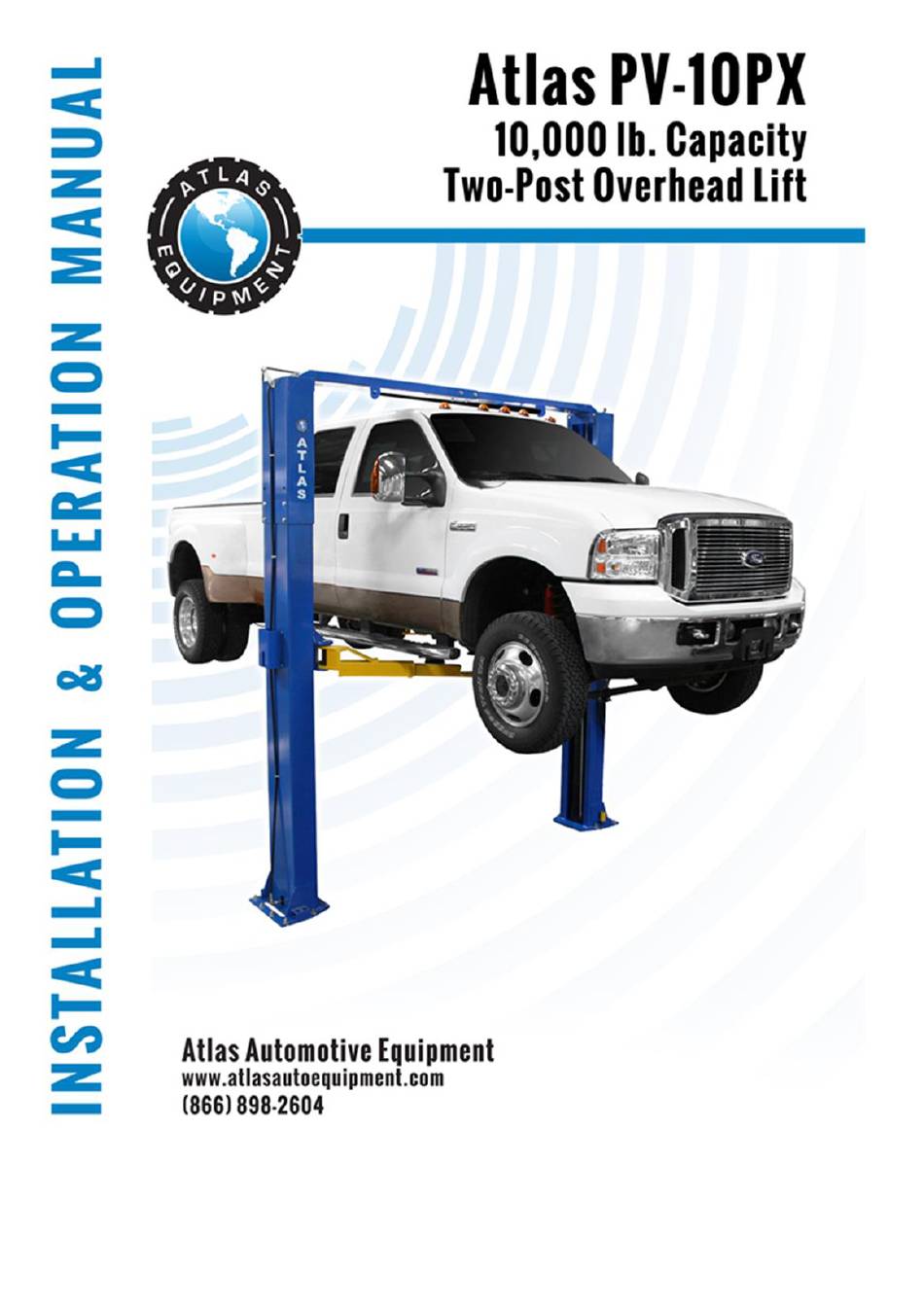

  • Page 1 Model: PV10 Revised: 09/29/23...

  • Page 2: Table Of Contents

    CONTENTS Product Features and Specifications ...........3 Installation Requirement ..............5 Installation Steps ….................7 Exploded View ................30 Test Run ..................34 Operation Instruction ..............36 Maintenance ..................37 Trouble Shooting ................38 Warranty ..................39...

  • Page 3: Product Features And Specifications

    I. PRODUCT FEATURES AND SPECIFICATIONS CLEAR-FLOOR DIRECT-DRIVE MODEL FEATURES Model PV10 (See Fig. 1) · Direct-drive design minimizes the lift wear parts and breakdown ratio. · Dual hydraulic cylinders, designed and made to high standards, utilizing imported oil seal in cylinder. ·...
  • Page 4 Arm Swings View For Model PV10 Fig. 2 Attention! Please make sure place the arms in correct position before car drive in! Fig. 3...

  • Page 5: Installation Requirement

    II. INSTALLATION REQUIREMENT A. TOOLS REQUIRED ✓ Rotary Hammer Drill (Φ19) Carpenter’s Chalk ✓ ✓ Hammer Screw Sets ✓ ✓ Level Bar Tape Measure (7.5m) ✓ ✓ English Spanner (12") Pliers ✓ ✓ Ratchet Spanner With Socket (28 Socket Head Wrench (3 ✓...
  • Page 6 B. Equipment storage and installation requirements. The equipment should be stored or installed in a shady, moderately temperate, ventilated and dry place. C. The equipment should be unloaded and transferred by forklift. Fig.5 D. SPECIFICATIONS OF CONCRETE (See Fig. 6) Concrete specifications must be followed accordingly.

  • Page 7: Installation Steps

    III. INSTALLATION STEPS A. Location of installation Check and ensure the installation location (concrete, layout, space size etc.) is suitable for lift installation. B. Use a carpenter’s chalk line to establish installation layout of baseplate. (See Fig. 7) Chalk Line Fig.
  • Page 8 3. Lift the upper column with a forklift or hoist and loosen the bolts on the upper package stand. Remove the upper column and take out the parts in the bottom column. (See Fig. 10) Fig. 10 4. Lift the lower column with a forklift or hoist, remove the package stand, then take off the lower column and remove the parts from the inner column (See Fig.
  • Page 9 Pars box (115) Fig.13 6. Check the parts of the parts bag 1 according to parts bag list (See Fig. 14). Fig. 14 Check the parts of the parts bag 2 according to parts bag list (See Fig. 15). Fig. 15...
  • Page 10 D. Install the hydraulic hose and lock release cable brackets on extension columns (See Fig. 16). Fig.16...
  • Page 11 E. Install hydraulic cylinder Wrap both ends of straight fittings with white Teflon tape, install straight fitting in each cylinder (See Fig. 17) The fitting of the cylinder toward the hole of the column Fig. 17...
  • Page 12 F. Install columns Lay down two columns on the installation site parallel of each other. Position the power side column according to the installation site. This lift is designed with 2-section columns. Adjust lift height according to the ceiling height and connect the inner and extension columns.
  • Page 13 2. When the ceiling height is over 147 5/8”, connect the extension columns with the bottom and middle hole on the extension (See Fig. 19) High setting Fig. 19...
  • Page 14 G. Position the columns Position the columns so the base plates line up with a chalk line. Position the offside column parallel to the power side column. Install the overhead cross beam. Level and plumb the columns, shim where necessary. Drill 3/4” anchor holes. If the top of the anchor exceeds 2 inches above the floor grade, you DO NOT have enough embedment, tighten the anchor bolts to 150 Ft Lbs.
  • Page 15 H. Install overhead top beam 1. With help of the hook of top beam, put one side of top beam on top of the extension column and connecting the top beam to extension column by bolts, tighten the bolts. (See Fig. 21) Hook on the extension columns Tighten the bolts...
  • Page 16 2. Assemble overhead top beam, tighten the columns anchor bolts (See Fig. 22) Tighten the anchor bolts with ratchet spanner with socket Torque of tighten the anchor bolts is 150 N.m or 125 ft. lbs. Fig. 22...
  • Page 17 I. Installing the limit switch control bar and limit switch (See Fig. 23) Fig. 23...
  • Page 18 J. Install safety device (See Fig. 24 & Fig. 25) Fig. 24 Power side safety device Fig. 25 Offside safety device...
  • Page 19 K. Lift the carriages up manually and set on the 1 set of locks. (See Fig. 26). Fig. 26...
  • Page 20 L. Install cables 1. High setting cable connection: 1.1 Take out the carriage’s plastic cover, cable pass through from the bottom of the carriages and be pulled out from the open of carriages, then screw the two cable nuts (See Fig. 27). Screw the two cable nuts Cable connecting...
  • Page 21 1.2 Connecting cable for high setting (See Fig. 28) High setting Cable 2 Cable 1 Cable 1 Fig. 28...
  • Page 22 2. Low setting cable connection (See Fig. 29) Note : Cable should go inside of the carriage. Low Setting Cable 2 Cable 1 Cable 2 Fig. 29...
  • Page 23 M. Install power unit (See Fig. 30) Fig. 30...
  • Page 24 N. Install oil hose At high setting and low setting oil hose connection (See Fig. 31) Fig. 31...
  • Page 25 O. Install safety cable. Install safety cable from offside safety device to power-side safety device, pass through the top beam (See Fig. 32) Fig. 32...
  • Page 26 P. Install hose retainers on both columns (See Fig. 33). Fig. 33...
  • Page 27 Q. Install lifting arms and adjust the arm locks 1. Install lifting arms (See Fig. 34) 2. Lower the carriages down to the lowest position, then use an 8mm allen wrench to loosen the socket bolt (See Fig.35) 3. Adjust moon gear as direction of arrow (See Fig.36) 4.
  • Page 28 Remove the short “Pig Tail” wire connected to the AC contactor terminals. This wire was used to test the motor after production. ATLAS Single phase motor Please Note: This motor is powered by Alternating Current and the terminals on the AC contactor are not wire color specific. There are no positive or negative terminals.
  • Page 29 Fig. 38...

  • Page 30: Exploded View

    IV. EXPLODED VIEW Model PV10 Fig. 39...
  • Page 31 PV-10P PARTS LIST Item Part # Description 217001B Power side Column 2/201 POWERUNIT220VETL Power unit 209003 Bolt 209033 Lock Washer 209005 QL4L-520-00 Power side Lock Cover QL4L-210-00 Main Cam Lock 217069 Bolt 206006 Washer 206023 Self-Locking Nut 420018 Self-Locking Nut 217013 Bolt 420045...
  • Page 32 Item Part # Description 217168 Arm Pin 209039 Lock Washer 209022 Washer 206049 Moon Gear 217041A Left Front Arm 206048 Allen Bolt 206032 C-Clip 217043 Limit Ring 206036 Roll Pin 217044 Arm Lock 217045 Spring 217046A Left Arm Lock Bar 217046 Right Arm Lock Bar 209019...
  • Page 33 Item Part # Description QL4L-200-04 Torsion Spring 217031 Cam Lock 217033 Self-Locking Nut 217032 Cable Lock Hold 217029 Small Pulley Bracket PV10-4003 Oil Hose 305720 90 Fitting for Power Unit PV10-4004 Oil Hose PV10-4021 Extended fitting for Cylinder 217191 Hose Clamp SW-001 Hydraulic T-Fitting 420029...

  • Page 34: Test Run

    Fig. 45 4. Adjust the lowering speed (Only for ATLAS power unit) (Adjust with a load on the lift) (See Fig. 46) You can adjust the lowering speed of the lift if needed: Loosen the locking nut on the throttle valve, and then turn the throttle valve clockwise to decrease the lowering speed, or counterclockwise to increase the lowering speed.
  • Page 35 5. Test with load After finishing the above adjustment, test running the lift with load. Run the lift in low position several times first. Run the lift to the top completely. NOTE: If the lift vibrates on the way up with a load, lubricate all pulley shafts and wear blocks.

  • Page 36: Operation Instruction

    VI. OPERATION INSTRUCTIONS Please read the safety tips carefully before operating the lift To lift vehicle 1. Keep the lift area clean and free of clutter; 2. Position lift arms to the lowest position, on floor; 3. Open or swing lift arms away from center of lift; 4.

  • Page 37: Maintenance

    VII. MAINTENANCE SCHEDULE Monthly: 1. Re-torque the anchor bolts to 85 Ft Lbs; Note: All anchor bolts should take full torque. If any of the bolts do not for any reason, DO NOT use the lift until the bolt has been replaced. 2.

  • Page 38: Trouble Shooting

    VIII. TROUBLE SHOOTING TROUBLE CAUSE REMEDY 1. Start button does not work 1. Replace Start button 2. Wiring connections are not in good 2.Repair all wiring connections Motor does not condition 3. Motor burned out 3. Repair or replace motor 4.

  • Page 39: Warranty

    X. WARRANTY: This item is warranted for five (5) years on structural components, two (2) years on hydraulic cylinders, and one (1) year on electric or air / hydraulic power units from invoice date. Wear items are covered by a 90 day warranty.
