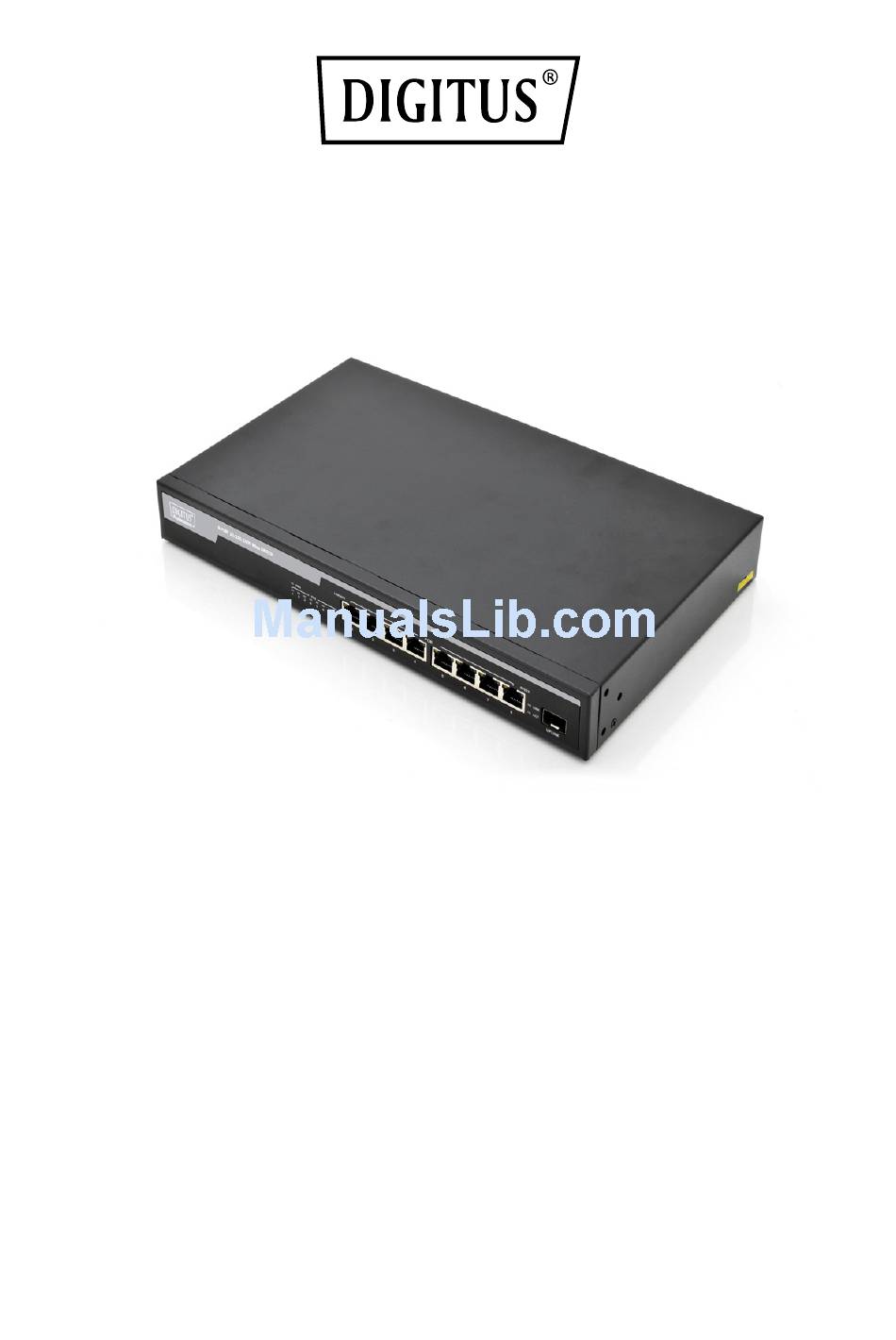

8-Port PoE Gigabit rack mountable Switch
+ 1x SFP Uplink
Manual
DN-95341

Products Description:

The DIGITUS 8-Port Gigabit Rack mount Switch with eight Power over Ethernet ports
and one additional SFP Fiber Port, offers your network significant improvement in
terms of performance and efficiency. Thanks to PoE support, you only need a single
(network) cable for power and data transfer. This switch makes it much easier to
connect devices such as access points, network cameras, and IP telephones, and
requires far less cabling than alternatives. It also allows you to extend your network
in places where there are no power supply cables or sockets available. The switch
does not require any configuration and therefore guarantees quick and seamless
integration into the network. Moreover, the switch has a rack mountable design and
can be easily installed with many standard racks, which makes this device the perfect
solution for data center and local server rooms.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DN-95341 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitus DN-95341

  • Page 1 DN-95341 Products Description: The DIGITUS 8-Port Gigabit Rack mount Switch with eight Power over Ethernet ports and one additional SFP Fiber Port, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer.
  • Page 2: Product Features

    Product Features:  8-Port 10/100/1000 Mbps PoE Gigabit rack mountable Switch + 1x SFP Uplink  Ethernet IEEE802.3 / 802.3u / 802.3x/802.3ab/802.3z / IEEE802.3 af/at  Power over Ethernet (PoE) - You only need one cable for power and data transfer ...
  • Page 3: Hardware Description

    Package Content:  8-Port Gigabit Switch  Manual  Power cable  Mounting Accessories Hardware Description:  The Front Panel The front panel consists of LED Indications.  LED Indicators Per Device: Power Per Port: LINK/ACT (Link/Activity) Per PoE Port: PoE ...
  • Page 4: Product Specifications

     RJ-45 Ports ( Auto MDI/MDIX) 8 auto-sensing ports of 10Base-T, 100Base-TX or 1000Base-TX connections. All ports can support Power over Ethernet to power devices. Remark: MDI means connecting to another Hub or Switch while MDIX means connecting to a workstation or PC. Therefore, Auto MDI/MDIX means that you can connect to another Switch or workstation without changing pin-to-pin or crossover cabling.
  • Page 5 MAC address table Traffic control IEEE 802.3x full-duplex flow control. Weight <3.5KG PoE port 4/8 10/100/1000Base-TX ports. PoE Standard IEEE802.3af, IEEE802.3at, per port 30W(MAX), Total 150W. Pin assignment V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6). Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS compliance.
