Telescopic Rails Hardware

Important - We recommend that at least two people install the appliance in a rack to
prevent injury, or damage to the appliance.
Rack Mounting Tools
We recommend that you use a Phillips PH2 screwdriver with a magnetic head to hold and retrieve screws.

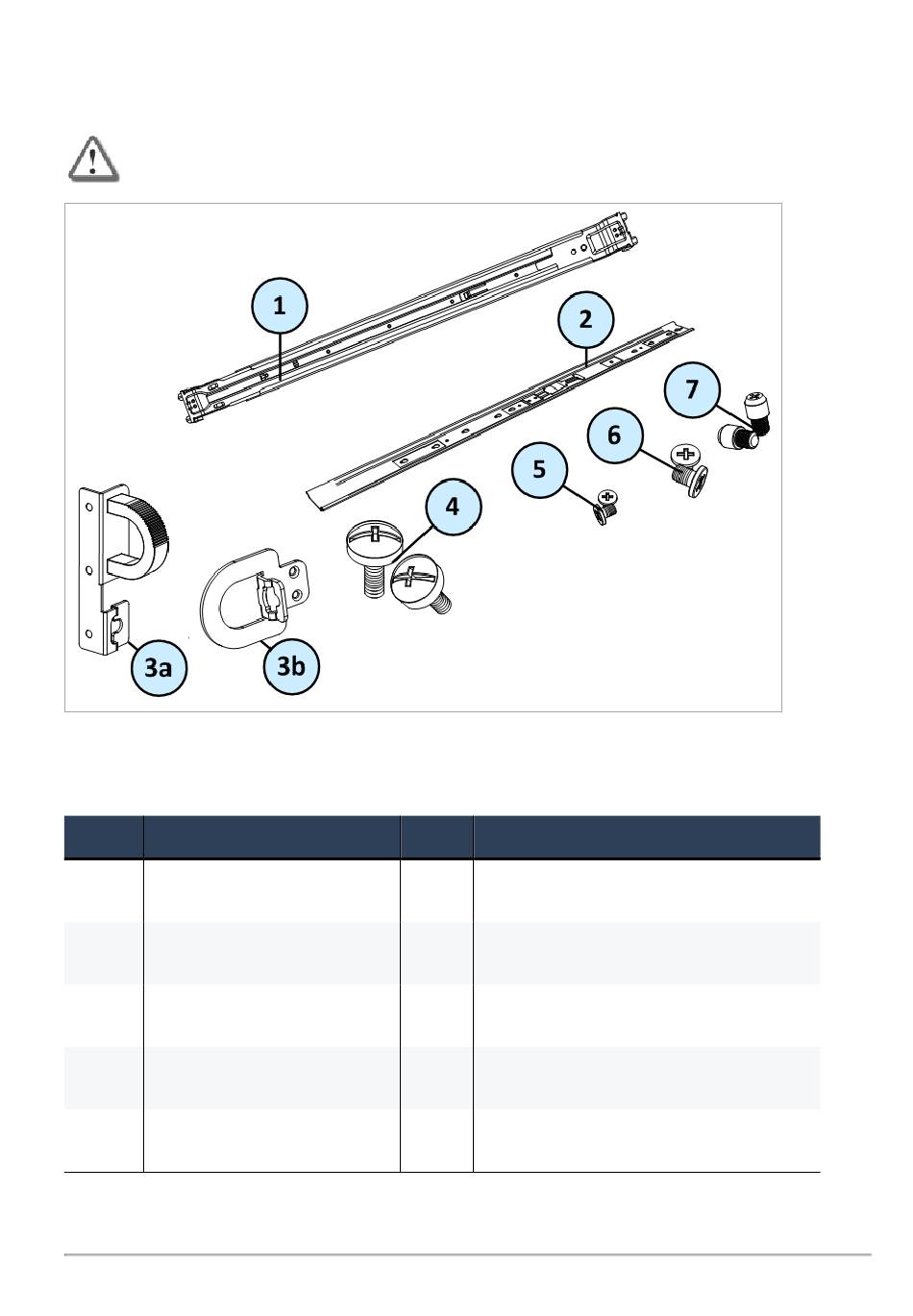

Item Hardware Description
1 Outer rack rail section of the
telescopic rail unit
2 Inner appliance rail section of
the telescopic rail unit
3a Ear mount bracket for 16000,
16200, 26000, and 28000
3b Ear mount bracket for
16600HS and 28600HS
4 Rack mounting screws
16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails
Qty Use
2 Moves the appliance into position in the
rack
2 Attaches to the sides of the appliance
2 Attaches the appliance to the rack
2 Attaches the appliance to the rack
4 Attaches the ear mounts to the rack, which
prevents movement of the appliance
16000, 26000, and 28000 Appliances Telescopic Rails | 7
