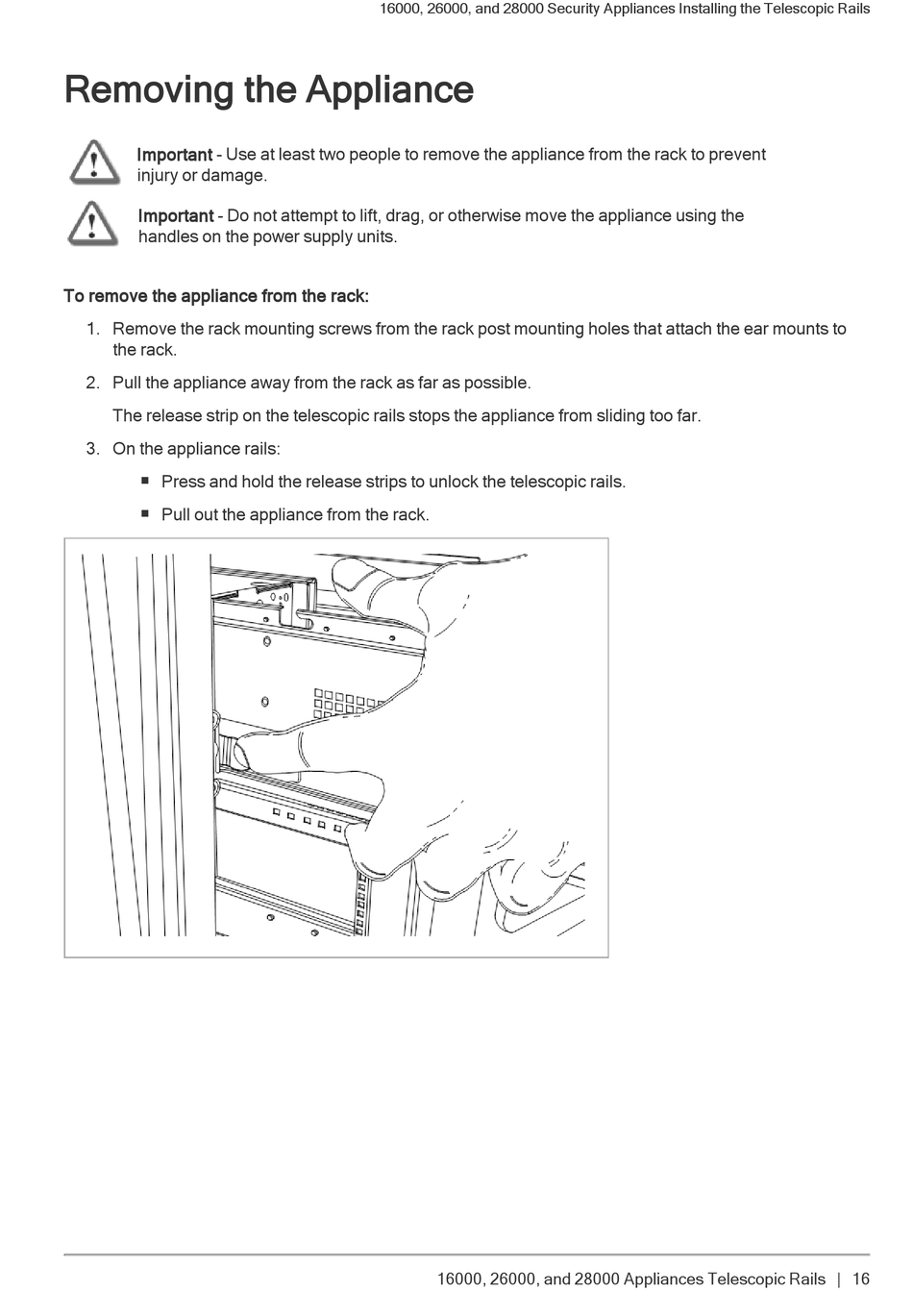

Removing the Appliance

Important - Use at least two people to remove the appliance from the rack to prevent
injury or damage.
Important - Do not attempt to lift, drag, or otherwise move the appliance using the
handles on the power supply units.
To remove the appliance from the rack:
1. Remove the rack mounting screws from the rack post mounting holes that attach the ear mounts to
the rack.
2. Pull the appliance away from the rack as far as possible.
The release strip on the telescopic rails stops the appliance from sliding too far.
3. On the appliance rails:
Press and hold the release strips to unlock the telescopic rails.
n
Pull out the appliance from the rack.
n
