Quantum FC420 Quick Reference Manual

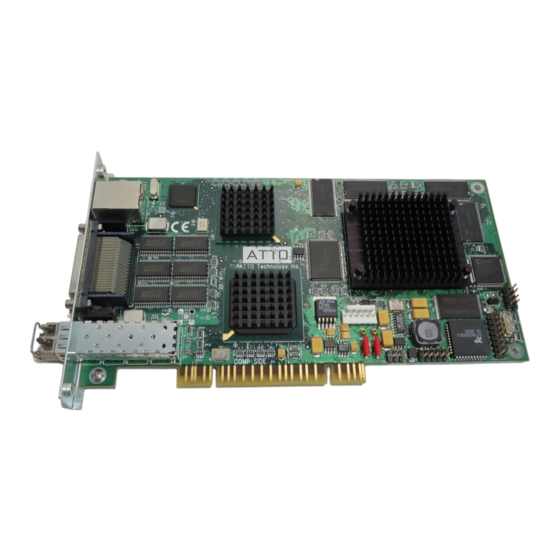

FC420 Fibre Channel Bridge
Quick Reference Guide
This Quick Reference Guide
explains how to install one
FC420 Fibre Channel bridge in
an ATL M1500 library, or up to
three FC420 bridges in an
ATL M2500 library.
If you are unfamiliar with any of
the information or procedures in
this document, the Quantum
Help Desk is ready to assist you
24 hours a day, 7 days a week.
To reach the Help Desk, call the
number for your area listed in
the Quantum ATL M-Series
User's Guide (PN 6423002).
This document and others
related to the ATL M-Series
libraries are provided in PDF
format on the Quantum
ATL M-Series Library User's
Documentation CD
(PN 6423013).
Note: Adobe Acrobat Reader
is required to view and print
PDF documents. To
download a free copy of
Adobe Acrobat Reader, go to
www.adobe.com.

Step 1: Prepare for Installation

1
Make sure your system meets the following requirements:
•
Point-to-point/fabric or arbitrated public or private loop topology
•
For fabric configurations, a Quantum-approved Fibre Channel switch
•
Quantum-approved network management software package
®
•
Windows NT 4.0 SP6 or later, Windows 2000 SP2 or later, Solaris
8 and 9, or other Quantum-approved operating system
Note: For a complete list of Quantum-approved networking hardware,
software, and operating systems, contact the Quantum Help Desk or an
authorized Quantum sales representative.
Note: The FC420 Fibre Channel bridge can only be used in LVD-
configured libraries.
Make sure you have the tools recommended for this procedure:
®
•
#1 PHILLIPS screwdriver
•
Flat blade screwdriver
2
Verify the contents of the FC420 Bridge Upgrade Kit, referring to the
Quantum FC420 Upgrade Kit Contents List (PN 6473023).
Caution: The small form-factor pluggable (SFP) connector on the
FC420 bridge is removable; however, the SFP connector should only be
removed by authorized repair personnel. Removal of the SFP connector
may void the warranty.
3
Take precautions to prevent electrostatic discharge (ESD). These
precautions include:
•
Wearing a properly grounded antistatic wrist strap
•
Wearing other antistatic apparel (smock, footwear, etc.)
•
Handling library components with care and keeping the FC420 bridge in
its antistatic packaging until you are ready to install it
Caution: Failure to take adequate antistatic precautions may result in
damage to the FC420 bridge or other library components.
®
