Installing the Appliance in the Rack

Install the appliance in the telescopic rails in the rack.
Important - We recommend that at least two people install the appliance in a rack to
prevent injury, or damage to the appliance.
Important - Do not attempt to lift, drag, or otherwise move the appliance using the
handles on the power supply units.
To install the appliance in the rack:
1. Align the appliance rails to be level with the rack rails.
2. Move the appliance into the rack as far as it can go.
3. Slide the appliance in and out of the rack several times to allow the rails to position properly.
Tighten all of the rail mounting screws.
4. For each ear mount, use a rack mount screw to secure it to the rack and make sure that the appliance
cannot move. This disables the telescopic rails.

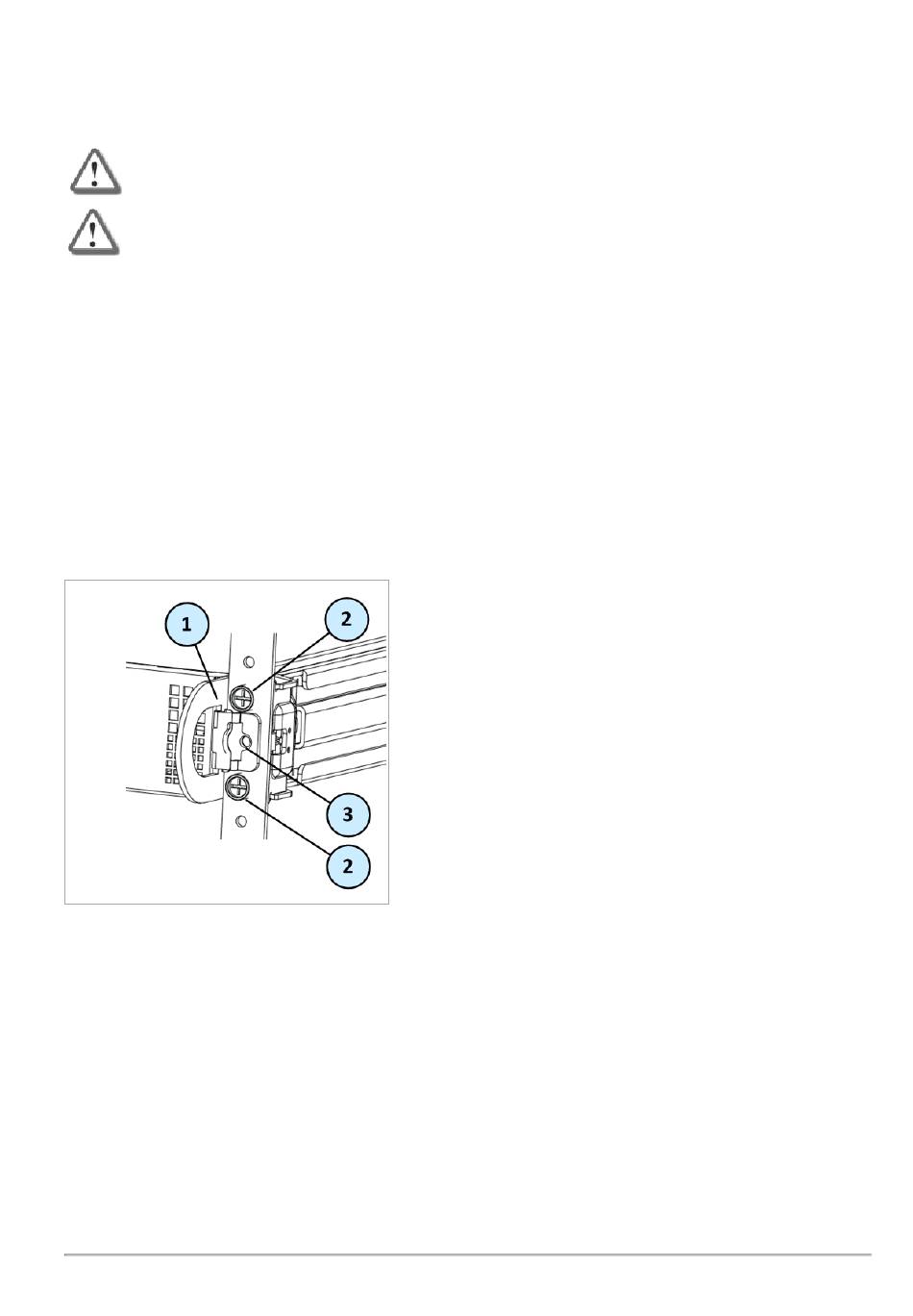

Use the rack post mounting hole that is between the rack rail screws (see item 3 in the next figures).
16600HS and 28600HS
16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails
16000, 26000, and 28000 Appliances Telescopic Rails | 14
