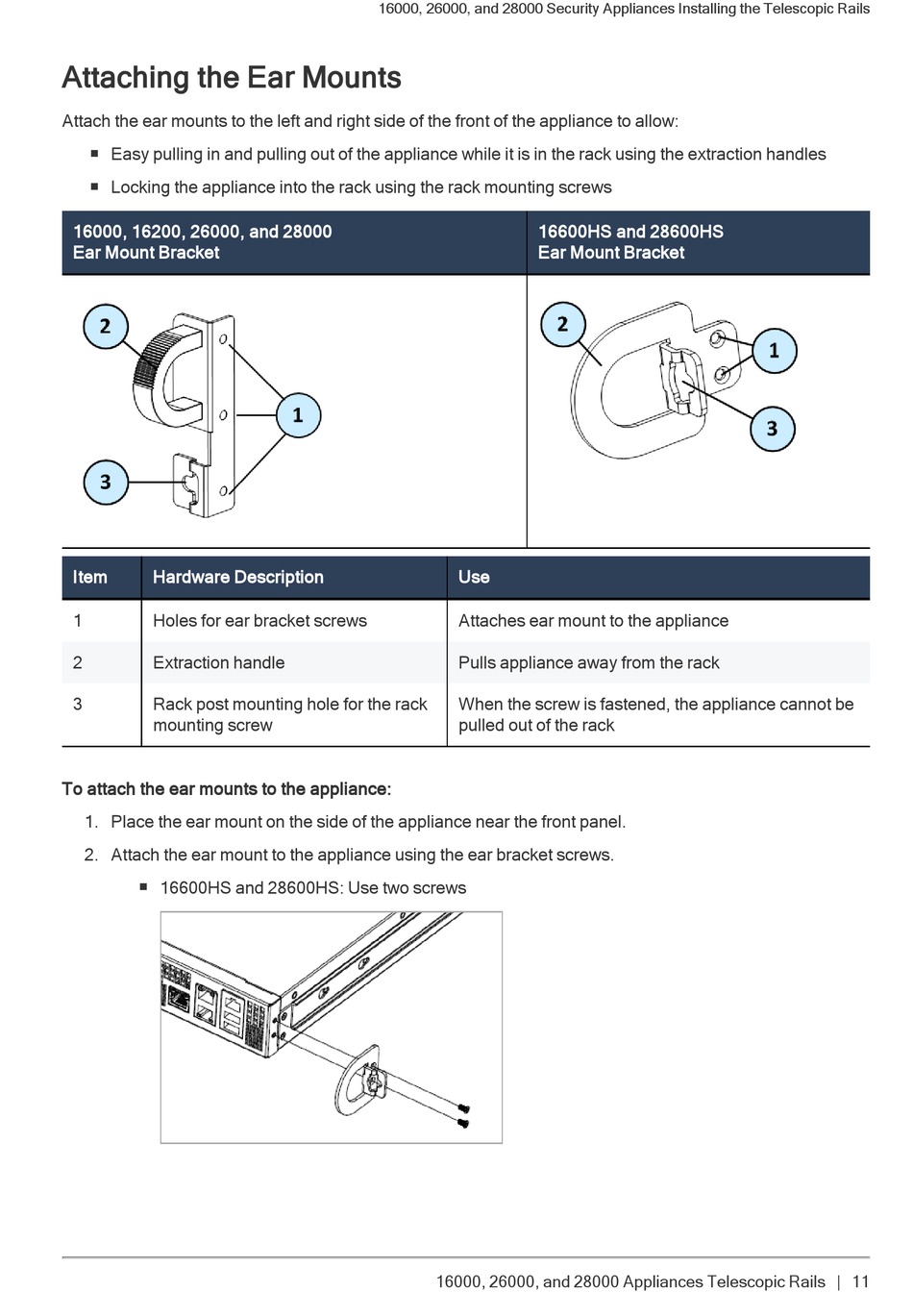

Attaching the Ear Mounts

Attach the ear mounts to the left and right side of the front of the appliance to allow:
Easy pulling in and pulling out of the appliance while it is in the rack using the extraction handles
n
n Locking the appliance into the rack using the rack mounting screws
16000, 16200, 26000, and 28000
Ear Mount Bracket
Item Hardware Description
1 Holes for ear bracket screws
2 Extraction handle
3 Rack post mounting hole for the rack
mounting screw
To attach the ear mounts to the appliance:
1. Place the ear mount on the side of the appliance near the front panel.
2. Attach the ear mount to the appliance using the ear bracket screws.
16600HS and 28600HS: Use two screws
n
16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails
16600HS and 28600HS
Ear Mount Bracket
Use
Attaches ear mount to the appliance
Pulls appliance away from the rack
When the screw is fastened, the appliance cannot be
pulled out of the rack
16000, 26000, and 28000 Appliances Telescopic Rails | 11
